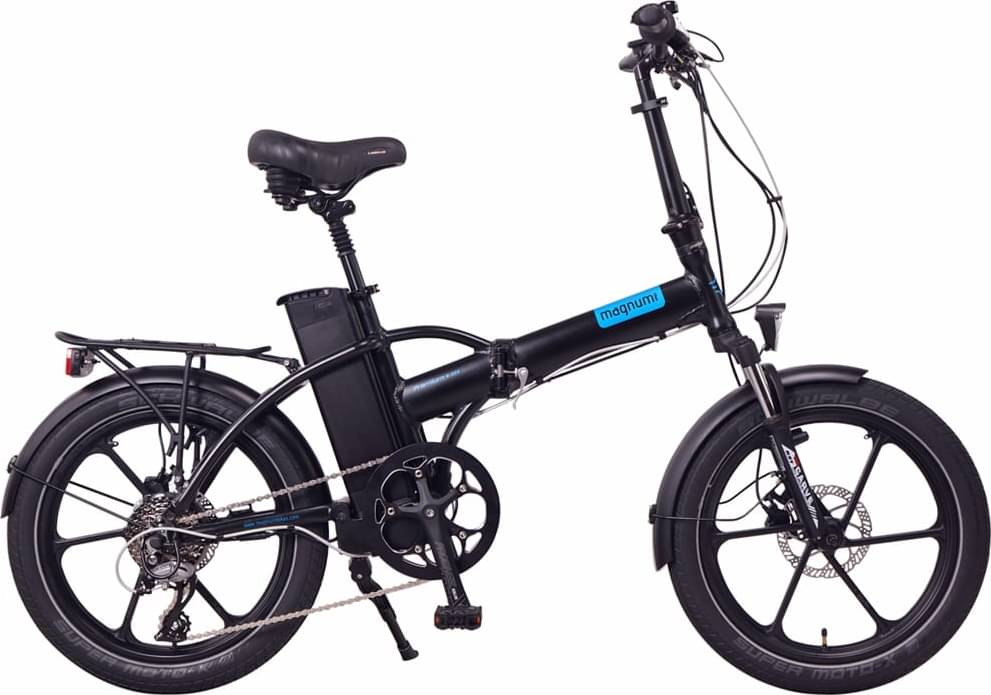

Magnum Classic 48 2019
2019 E-bike
Estimate price |
2,049$
Weight | 27.8 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 20" -
Travel Front 80mm -
Fork RST
-
Groupset Shimano -
Suspension Hardtail -
Motor Bafang 500W 80Nm hub-drive -
Battery Weight: 9.3 lbs (4.21 kg), Brand: Samsung, LG, Panasonic, Voltage: 48 volts, Amp Hours: 13 ah, Watt Hours: 624 wh, Chemistry: Lithium Nickel Cobalt Manganese (Li-NCM) -
Drivetrain 1 × 8 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Aluminum Alloy
Suspension Fork
RST Carve Spring Suspension, 80mm Travel, 25mm Steel Stanchions, 100mm Hub Spacing, 10mm Threaded Axle with 15mm Nuts
Drivetrain
Shift Levers
Shimano RevoShift Half-Grip Twist Shifter on Right
Cassette
8 Speed 1x8 Shimano Acera Derailleur, 11-32 Tooth Nickel Plated Cassette
Crank
Prowheel SOLID, Aluminum Alloy, 165mm Length, 52 Tooth Chainring with Alloy Guide
Pedals
Wellgo K20410, Folding Plastic Platform
Wheels
Rims
Aluminum Alloy, Double Walled, 40.4mm Outer Width
Spokes
6 Forged Alloy Arms
Tires
Schwalbe Super Moto-X, 20" x 2.4" (62-406)
Cockpit
Stem
Aluminum Alloy, Folding, 240mm Base Height, Telescoping Height Adjustment (0mm to 120mm), 40mm Length, 25.4mm Clamp Diameter, One 10mm Spacer
Handlebar
Aluminum Alloy, Low-Rise, 630mm Width
Grips
Ergonomic, Faux Leather, Stitched
Headset
Neco, Threadless, Internal Cups, Straight 1-1/8"
Seat
Saddle
Selle Royal Lookin, Gel Saddle
Seatpost
Aluminum Alloy, Suspension (40mm Travel, Preload Adjust), Flip-Up Saddle Clamp
Motor & Battery
Motor
Weight: 10.1 lbs (4.58 kg), Brand: Bafang, Type: Rear-Mounted Geared Hub, Nominal Output: 500 watts, Peak Output: 700 watts, Torque: 80 Newton meters
Battery
Weight: 9.3 lbs (4.21 kg), Brand: Samsung, LG, Panasonic, Voltage: 48 volts, Amp Hours: 13 ah, Watt Hours: 624 wh, Chemistry: Lithium Nickel Cobalt Manganese (Li-NCM)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15" |
|---|---|
| Wheels | 20" |
| Rider Min Height | 120 cm |
Model Overview
Classic 48 belongs to the Magnum E Classic model. There is 1 e-bike that carries this model name.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Commuter e-bikes average price
According to our calculations, the average cost of a Commuter e-bike that is reliable is 2569$. However, even if your budget is less than the average, you might still be able to get a top-quality Commuter e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2049$. Comparing the average cost of a Commuter e-bike to this one, you will see that Classic 48 price is 25.38% lower.
Average weight for Commuter e-bikes
On a deeper look, we notice that the average weight of a Commuter e-bike is 25.2 kg (55.56 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Magnum Classic 48 it’s weighing 27.8 kg (61.29 lbs). At this weight, is considerably heavier than average. In other words, this model is 10.32% heavier than the average Commuter e-bike.
Classic 48 components
Fork
The Classic 48 comes factory-installed with the RST fork. This has a travel range of 80mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Fork material
When it comes to the fork, this e-bike has a steel one, so, it can add some extra weight to your bike. However, steel is a pretty tough and durable material.
Wheels size
As for the wheels, Magnum Classic 48 2019, has a 20″ aluminum model. The 20″ wheels are a good fit for folding bikes, BMX, or children bikes. In conclusion, they are great for flat ground or very easy trails.
Brakes
For your safety, it is important to have quality breaks on your bike. Magnum Classic 48 has Rim brakes installed. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they have problems in wet conditions.
