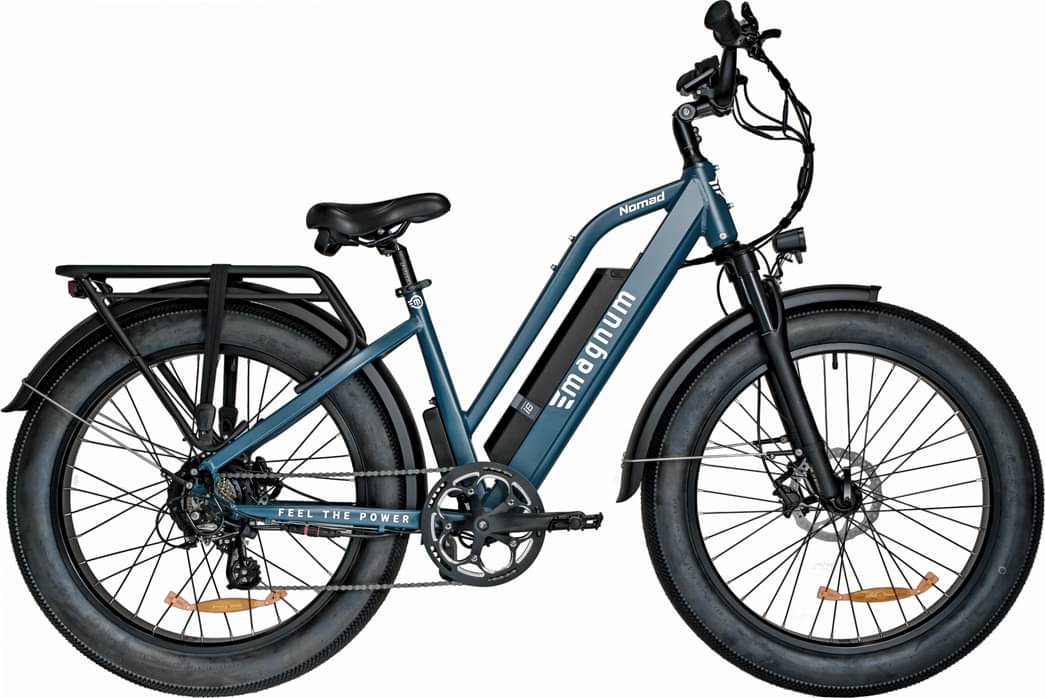

Magnum Nomad 2021
2021 E-bike
Estimate price |
2,599$
Weight | 34.65 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 26" -
Travel Front 100mm -
Groupset Shimano -
Suspension Hardtail -
Motor Bafang 750W hub-drive -
Battery Weight: 9.5 lbs (4.3 kg) (10.7lbs for 19.2Wh Battery), Voltage: 48 volts, Amp Hours: 17.5 ah (Optional 19.2Ah), Watt Hours: 840 wh (Optional 921.6Wh), Chemistry: Lithium-ion -
Drivetrain 1 × 7 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum Alloy
Suspension Fork
Unbranded Spring Suspension, 100mm Travel, Compression Clicker with Lockout, Preload Adjust, 32mm Black Steel Stanchions, 135mm Hub Spacing, 9mm Axle with Quick Release Skewer
Drivetrain
Shift Levers
Shimano SIS Index Thumb Shifter on Right
Cassette
7 Speed 1x7 Shimano Altus Derailleur, Shimano MF-TZ500-7 14-28 Tooth Cassette
Crank
Forged Aluminum Alloy, 170mm Length, Square Tapered Bottom Bracket, 52 Tooth Steel Chainring with Alloy Guard
Pedals
Wellgo VB087 Aluminum Alloy Platform, Black, Fixed Pins
Wheels
Rims
Aluminum Alloy, Double Walled, 80mm Outer Width, 36 Hole
Spokes
Stainless Steel, 13 Gauge Front 12 Gauge Rear, Black with Adjustable Nipples
Tires
Unbranded JY-777-01, 26" x 4.0"
Brakes
Brakes
Logan Hydraulic Disc with 180mm Rotors, Dual Piston Calipers, Logan Three Finger Levers with Adjustable Reach and Brake Light Activation and Motor Inhibitors
Cockpit
Stem
Promax, Adjustable Angle -30° to +30°, 70mm Base Height, 90mm Length, 31.8mm Clamp Diameter, One 10mm Spacer, One 20mm Tapered Base Spacer
Handlebar
Mid-Rise, Aluminum Alloy, 700mm Length
Grips
Padded, Faux Leather, Stitched
Headset
Threadless, Internal Cups, Straight 1-1/8"
Seat
Saddle
Unbranded Comfort Hybrid, Integrated Lift Handle
Seatpost
Promax, Aluminum Alloy, Single Bolt Saddle Clamp
Motor & Battery
Motor
Weight: 11.5 lbs (5.21 kg), Brand: Bafang, Type: Rear-Mounted Geared Hub, Nominal Output: 750 watts, Peak Output: 1000 watts
Battery
Weight: 9.5 lbs (4.3 kg) (10.7lbs for 19.2Wh Battery), Voltage: 48 volts, Amp Hours: 17.5 ah (Optional 19.2Ah), Watt Hours: 840 wh (Optional 921.6Wh), Chemistry: Lithium-ion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 35cm |
|---|---|
| Wheels | 26" |
About this model
Nomad belongs to the Magnum E Nomad model. Magnum launched 2 e-bikes of this model so far.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Fatbike e-bikes
If you want to purchase a solid Fatbike e-bike, it is important to know that the average cost is 2033$. However, even though the average price of a Fatbike e-bike is lower, you might still be able to get a top-quality e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
When Magnum released this model in 2021, its price was 2599$. Doing a quick comparison, we notice that Nomad price is 27.84% more expensive than the average cost of a Fatbike e-bike.
Fatbike e-bikes average weight
The average weight for Fatbike e-bikes is 31.21 kg (68.81 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
considerably heavier than average, Nomad has a weight of 34.65 kg (76.39 lbs). In short, the average Fatbike e-bike weight is 11.02% lower than this one.
Overview of components
Fork material
When it comes to the fork, this e-bike has a steel one, which tends to be more flexible than carbon forks in general. However, a carbon fork is considerably lighter.
Wheels size
When leaving the production line, the Nomad model has 26″ aluminum wheels. These wheels give you great handling over your e-bike. However, they are less forgiving when riding over obstacles such as bumps and roots.
Brakes
For your safety, it is important to have quality breaks on your bike. Magnum Nomad has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
