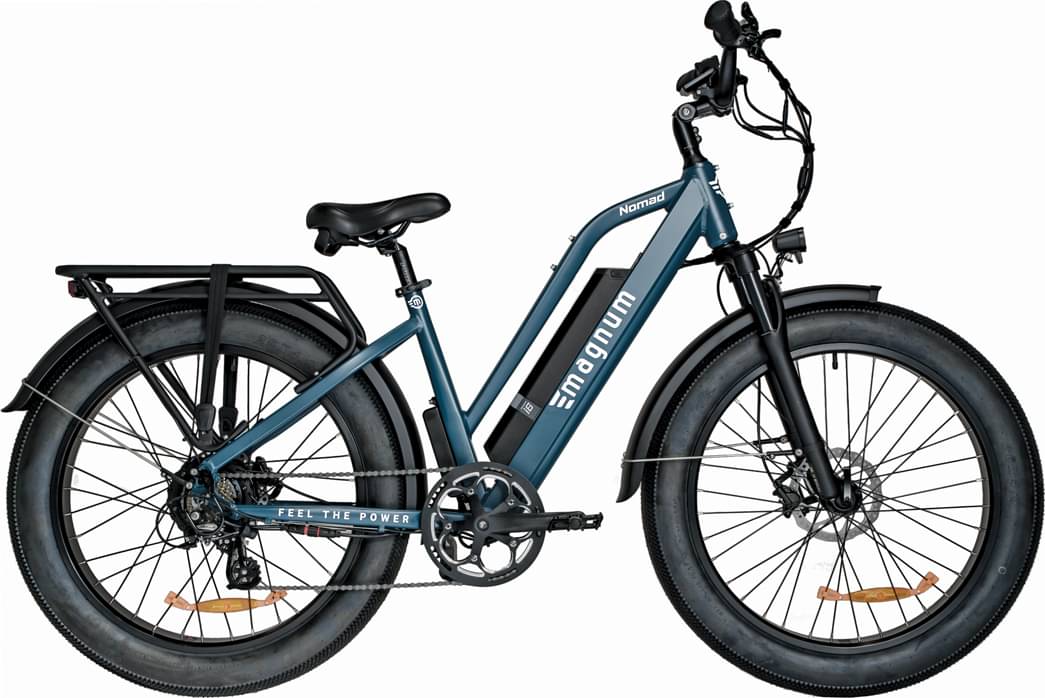

Magnum Nomad 2022
2022 E-bike
Estimate price |
2,599$
Weight | 34.65 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 26" -
Travel Front 100mm -
Groupset Shimano -
Suspension Hardtail -
Motor Bafang 750W hub-drive -
Battery Weight: 9.5 lbs (4.3 kg) (10.7lbs for 19.2Wh Battery), Voltage: 48 volts, Amp Hours: 17.5 ah (Optional 19.2Ah), Watt Hours: 840 wh (Optional 921.6Wh), Chemistry: Lithium-ion -
Drivetrain 1 × 7 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum Alloy
Suspension Fork
Unbranded Spring Suspension, 100mm Travel, Compression Clicker with Lockout, Preload Adjust, 32mm Black Steel Stanchions, 135mm Hub Spacing, 9mm Axle with Quick Release Skewer
Drivetrain
Shift Levers
Shimano SIS Index Thumb Shifter on Right
Cassette
7 Speed 1x7 Shimano Altus Derailleur, Shimano MF-TZ500-7 14-28 Tooth Cassette
Crank
Forged Aluminum Alloy, 170mm Length, Square Tapered Bottom Bracket, 52 Tooth Steel Chainring with Alloy Guard
Pedals
Wellgo VB087 Aluminum Alloy Platform, Black, Fixed Pins
Wheels
Rims
Aluminum Alloy, Double Walled, 80mm Outer Width, 36 Hole
Spokes
Stainless Steel, 13 Gauge Front 12 Gauge Rear, Black with Adjustable Nipples
Tires
Unbranded JY-777-01, 26" x 4.0"
Brakes
Brakes
Logan Hydraulic Disc with 180mm Rotors, Dual Piston Calipers, Logan Three Finger Levers with Adjustable Reach and Brake Light Activation and Motor Inhibitors
Cockpit
Stem
Promax, Adjustable Angle -30° to +30°, 70mm Base Height, 90mm Length, 31.8mm Clamp Diameter, One 10mm Spacer, One 20mm Tapered Base Spacer
Handlebar
Mid-Rise, Aluminum Alloy, 700mm Length
Grips
Padded, Faux Leather, Stitched
Headset
Threadless, Internal Cups, Straight 1-1/8"
Seat
Saddle
Unbranded Comfort Hybrid, Integrated Lift Handle
Seatpost
Promax, Aluminum Alloy, Single Bolt Saddle Clamp
Motor & Battery
Motor
Weight: 11.5 lbs (5.21 kg), Brand: Bafang, Type: Rear-Mounted Geared Hub, Nominal Output: 750 watts, Peak Output: 1000 watts
Battery
Weight: 9.5 lbs (4.3 kg) (10.7lbs for 19.2Wh Battery), Voltage: 48 volts, Amp Hours: 17.5 ah (Optional 19.2Ah), Watt Hours: 840 wh (Optional 921.6Wh), Chemistry: Lithium-ion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 35cm |
|---|---|
| Wheels | 26" |
About this model
Nomad is part of the Magnum E Nomad model. There are 2 e-bikes that carry this model name.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Fatbike e-bikes average price
Our math shows that the average cost of a dependable Fatbike e-bike is 2033$. However, you could also get a good Fatbike e-bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2599$. Comparing this to the average Fatbike e-bike price, we see that the price is 27.84% more expensive.
Fatbike e-bikes average weight
Fatbike e-bikes have an average weight of 31.21 kg (68.81 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
With a weight of 34.65 kg (76.39 lbs), Magnum e-bike is considerably heavier than average. In conclusion, the average Fatbike e-bike weighs 11.02% less than Nomad.
Overview of components
Fork material
The fork is made out of steel, so, it can add some extra weight to your bike. However, steel is a pretty tough and durable material.
Wheels
When it comes to wheels, the Nomad e-bike is equipped with the 26″ aluminum model. Being a little smaller, these wheels will fit both small and tall riders. However, you will need increased suspension than in the case of 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Nomad comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
