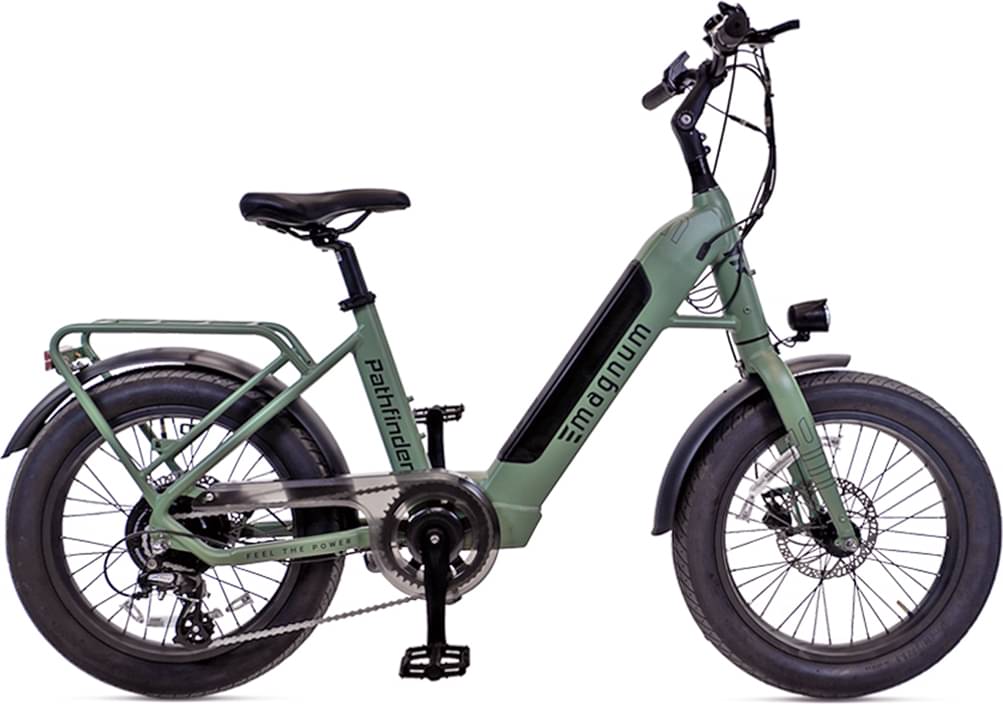

Magnum Pathfinder 2021
2021 E-bike
Estimate price |
1,999$
Weight | 27.17 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 20" -
Groupset Shimano -
Suspension Rigid -
Motor 500W hub-drive -
Battery Weight: 9 lbs (4.08 kg), Brand: LG (Optional Panasonic), Voltage: 48 volts, Amp Hours: 13 ah, Watt Hours: 624 wh, Chemistry: Lithium Nickel Cobalt Manganese (Li-NCM) -
Drivetrain 1 × 7 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum Alloy
Suspension Fork
Rigid Aluminum Alloy, Boost 110mm Hub Spacing, 12mm Threaded Axle with 15mm Nuts
Drivetrain
Shift Levers
Shimano SIS Index Thumb Shifter on Right (Optional NuVinci Grip Twist on Right Bar)
Cassette
7 Speed 1x7 Shimano Altus Derailleur, Shimano FWD-702 14-28 Tooth Freewheel
Crank
Forged Aluminum Alloy, 165mm Length Crank Arms, Square Tapered Spindle, 44 Tooth Steel Chainring with Plastic Cover
Pedals
VP-536, K1283 Wide Plastic Platform with Reflectors
Wheels
Rims
Aluminum Alloy, Double Wall, 50mm Outer Width, 36 Hole, Black
Spokes
Stainless Steel, 12 Gauge, Black with Adjustable Nipples
Tires
CST Big Boat, 20" x 3" (76-406)
Brakes
Brakes
Nutt Hydraulic Disc with 180mm Rotors, Dual Piston Calipers, Nutt Four-Finger Levers with Motor Inhibitors and Adjustable Length
Cockpit
Stem
Aluminum Alloy, Adjustable Angle 0° to 90°, 90mm Length, 60mm Base Height, One 25mm Tapered Base Spacer, Two 10mm Spacers, One 5mm Spacer, 25.4mm Handlebar Clamp Diameter
Handlebar
Aluminum Alloy, Low Rise, 600mm Length
Grips
Flat Rubber, Pressure Fit, Half-Grip on Right for Twist Throttle
Headset
Integrated, Sealed, Threadless, Straight 1-1/8"
Seat
Saddle
Velo Gel Comfort (Optional Upgrade Program)
Seatpost
Zoom, Aluminum Alloy, Single Bolt Clamp
Motor & Battery
Motor
Weight: 7 lbs (3.17 kg), Brand: 48V Brushless Geared, Type: Rear-Mounted Geared Hub, Nominal Output: 500 watts
Battery
Weight: 9 lbs (4.08 kg), Brand: LG (Optional Panasonic), Voltage: 48 volts, Amp Hours: 13 ah, Watt Hours: 624 wh, Chemistry: Lithium Nickel Cobalt Manganese (Li-NCM)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 40cm |
|---|---|
| Wheels | 20" |
| Rider Min Height | 120 cm |
Model Overview
Pathfinder completes the Magnum E Pathfinder model. Magnum released 2 e-bikes variations of this model so far.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Commuter e-bikes average price
According to our calculations, the average cost of a Commuter e-bike that is reliable is 2569$. However, even if your budget is less than the average, you might still be able to get a top-quality Commuter e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
This e-bike was released in 2021 and its price was 1999$. In conclusion, this e-bike price is 28.51% smaller than the price of the average Commuter e-bike.
Commuter e-bikes average weight
On a deeper look, we notice that the average weight of a Commuter e-bike is 25.2 kg (55.56 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 27.17 kg (59.9 lbs), the Pathfinder model is a bit heavier than average. In short, the average Commuter e-bike weight is 7.82% lower than this one.
Overview of components
Fork material
The fork on this e-bike is made out of aluminum, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels
The wheels on Pathfinder are the 20″ aluminum type. The 20″ wheels are a good fit for folding bikes, BMX, or children bikes. In conclusion, they are great for flat ground or very easy trails.
Brakes
For your safety, it is important to have quality breaks on your bike. Magnum Pathfinder has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
