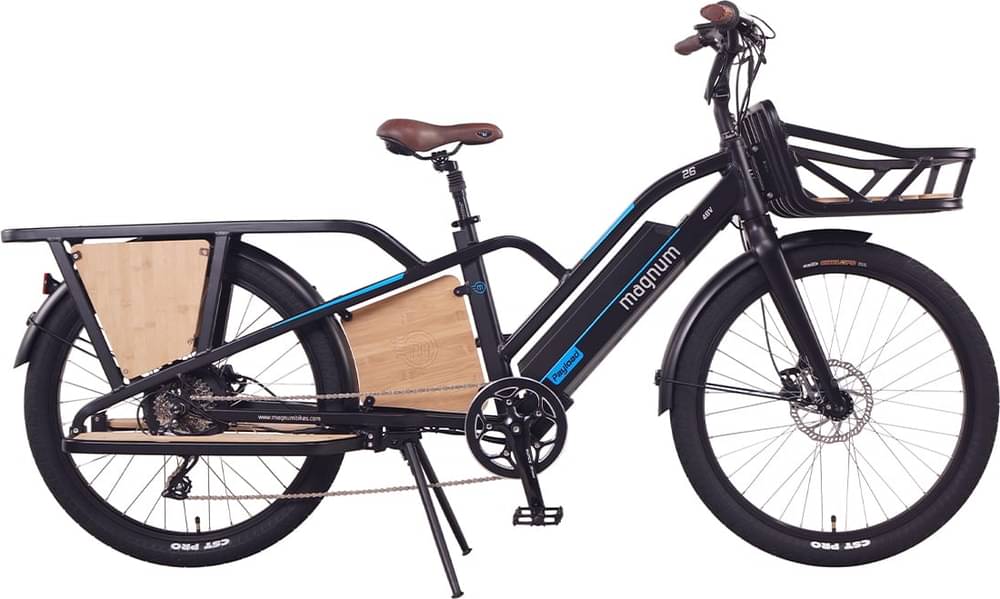

Magnum Payload 2019
2019 E-bike
Estimate price |
2,499$
Weight | 36.51 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Groupset Shimano -
Suspension Rigid -
Motor 500W 90Nm hub-drive -
Battery Weight: 9.2 lbs (4.17 kg), Brand: Samsung, LG, Panasonic, Voltage: 48 volts, Amp Hours: 13 ah (Optional 19ah), Watt Hours: 624 wh (Optional 912wh), Chemistry: Lithium Nickel Cobalt Manganese (Li-NCM) -
Drivetrain 1 × 8 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Aluminum Alloy
Suspension Fork
Rigid Aluminum Alloy, 100 mm Hub Spacing, 9mm Axle with Quick Release Skewer
Drivetrain
Shift Levers
Shimano RevoShift Half-Grip Twist Shifter on Right
Cassette
8 Speed 1x8 Shimano Acera Derailleur, 11-32 Tooth Nickel Plated Cassette
Crank
Prowheel Ounce, Forged Alloy, 170mm Length, Square Taper Bottom Bracket, 48 Tooth Chainring with Alloy Guard
Pedals
Wellgo VB087 Aluminum Alloy Platform, Black, Fixed Pins
Wheels
Rims
Aluminum Alloy, Double Walled, Machined Sidewalls, 32mm Outer Width, 36 Hole
Spokes
Stainless Steel, 13 Gauge, Silver with Adjustable Nipples
Tires
CST PRO Cyclops, 26" x 2.4" (61-559)
Cockpit
Stem
Promax, Tool-Free Adjustable Angle, 70mm Base Height, 100mm Length, 25.4mm Clamp Diameter, One 15mm Spacer, One 5mm Spacers
Handlebar
Mid-Rise, Aluminum Alloy, 650mm Length
Grips
Ergonomic, Faux Leather, Stitched
Headset
Neco, Threadless, Internal Cups, Straight 1-1/8"
Seat
Saddle
Selle Royal Free Way Royalgel, Comfort Saddle
Seatpost
Promax Suspension (40mm Travel, Preload Adjustment Bolt in Base), Aluminum Alloy
Motor & Battery
Motor
Weight: 11.1 lbs (5.03 kg), Brand: Das-Kit, Type: Rear-Mounted Geared Hub, Nominal Output: 500 watts, Torque: 90 Newton meters
Battery
Weight: 9.2 lbs (4.17 kg), Brand: Samsung, LG, Panasonic, Voltage: 48 volts, Amp Hours: 13 ah (Optional 19ah), Watt Hours: 624 wh (Optional 912wh), Chemistry: Lithium Nickel Cobalt Manganese (Li-NCM)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 45cm |
|---|---|
| Wheels | 26" |
| Rider Min Height | 120 cm |
About this model
Payload belongs to the Magnum E Payload model. Magnum released 1 e-bike variation of this model so far.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Utility e-bikes average price
If you want an acceptable Utility e-bike you should know that the average price is 3636$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Utility e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2499$. Comparing the average cost of an Utility e-bike to this one, you will see that Payload price is 45.5% lower.
Utility e-bikes average weight
The average weight for Utility e-bikes is 34.2 kg (75.4 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Magnum Payload it’s weighing 36.51 kg (80.49 lbs). At this weight, is a bit heavier than average. In short, the average Utility e-bike weight is 6.75% lower than this one.
Overview of components
Fork material
Payload has an aluminum fork, so there won’t be much extra weight added to the e-bike. However, they are not so stiff as carbon forks are.
Wheels size
As for the wheels, Magnum Payload 2019, has a 26″ aluminum model. Being a little smaller, these wheels will fit both small and tall riders. However, they provide less traction than 29″ wheels do.
Brakes
When you want to stop the bike in time, the brakes are vital. The Payload has Rim brakes. Rim brakes deliver an average performance overall. However, they have problems in wet conditions.
