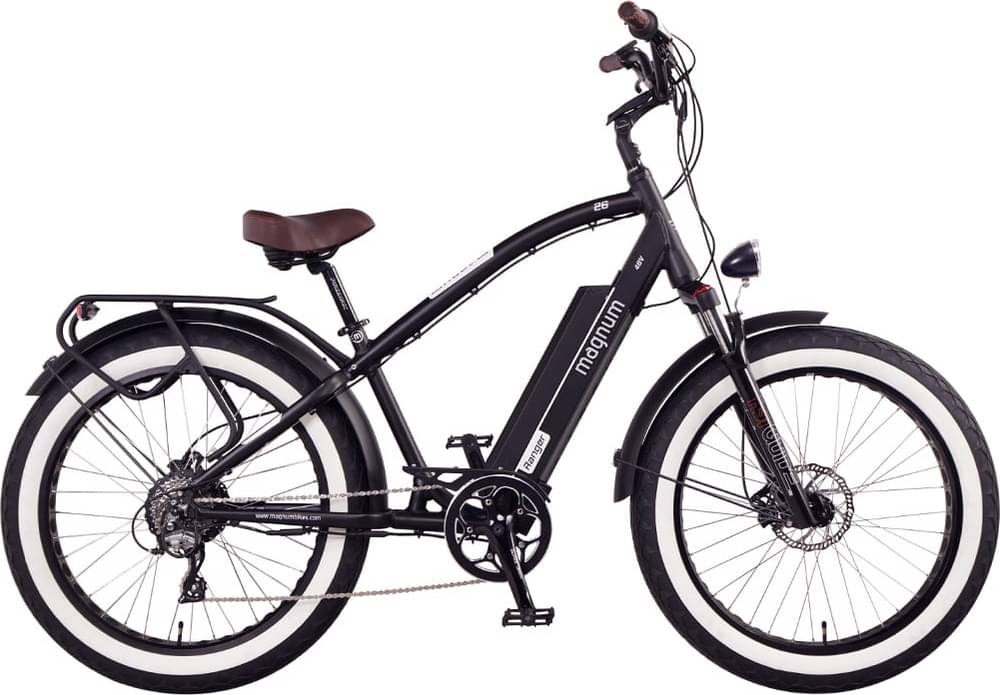

Magnum Ranger 2020
2020 E-bike
Estimate price |
2,499$
Weight | 33.65 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 80mm -
Fork RST
-
Groupset Shimano -
Suspension Hardtail -
Motor 90Nm hub-drive -
Battery Weight: 9.2 lbs (4.17 kg), Brand: Samsung, LG, Panasonic, Voltage: 48 volts, Amp Hours: 13 ah (Optional 19ah), Watt Hours: 624 wh (Optional 912wh), Chemistry: Lithium Nickel Cobalt Manganese (Li-NCM) -
Drivetrain 1 × 8 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Aluminum Alloy
Suspension Fork
RST Guide Spring Suspension, 80mm Travel, Compression Adjust with Lockout, Preload Adjust, 32mm Steel Stanchions, 135mm Hub Spacing, 9mm Axle with Quick Release Skewer
Drivetrain
Shift Levers
Shimano RevoShift Half-Grip Twist Shifter on Right
Cassette
8 Speed 1x8 Shimano Acera Derailleur, 11-32 Tooth Nickel Plated Cassette
Crank
Prowheel Ounce, Forged Alloy, 170mm Length, Square Taper Bottom Bracket, 48 Tooth Chainring with Alloy Guard
Pedals
Wellgo VB087 Aluminum Alloy Platform, Black, Fixed Pins
Wheels
Rims
Aluminum Alloy, Double Walled, Oval Cut Outs, 81mm Outer Width, 36 Hole
Spokes
Stainless Steel, 13 Gauge, Silver with Adjustable Nipples
Tires
Chao Yang H-5193, 26" x 4.0"
Cockpit
Stem
Promax, Tool-Free Adjustable Angle, 70mm Base Height, 100mm Length, 25.4mm Clamp Diameter, One 15mm Spacer, One 10mm Spacers
Handlebar
Mid-Rise, Aluminum Alloy, 660mm Length
Grips
Padded, Faux Leather, Stitched
Headset
Neco, Threadless, Internal Cups, Straight 1-1/8"
Seat
Saddle
Selle Royal Cruiser Comfort, Rubber Bumpers, Imitation Leather
Seatpost
Promax, Aluminum Alloy
Motor & Battery
Motor
Weight: 11.5 lbs (5.21 kg), Brand: Das-Kit, Type: Rear-Mounted Geared Hub, Nominal Output: 750 watts, Peak Output: 1000 watts, Torque: 90 Newton meters
Battery
Weight: 9.2 lbs (4.17 kg), Brand: Samsung, LG, Panasonic, Voltage: 48 volts, Amp Hours: 13 ah (Optional 19ah), Watt Hours: 624 wh (Optional 912wh), Chemistry: Lithium Nickel Cobalt Manganese (Li-NCM)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16cm |
|---|---|
| Wheels | 26" |
Model Overview
Ranger belongs to the Magnum E Ranger model. Magnum released 2 e-bikes variations of this model so far.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Fatbike e-bikes average price
Our math shows that the average cost of a dependable Fatbike e-bike is 2033$. However, even though the average price of a Fatbike e-bike is lower, you might still be able to get a top-quality e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Magnum Ranger price was 2499$. In conclusion, this e-bike price is 22.92% more expensive than the price of the average Fatbike e-bike.
Fatbike e-bikes average weight
Fatbike e-bikes weigh an average of 31.21 kg (68.81 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Magnum Ranger it’s weighing 33.65 kg (74.19 lbs). At this weight, is a bit heavier than average. To sum up, it’s 7.82% heavier than the average weight of Fatbike e-bikes.
Ranger components
Fork
The Ranger comes factory-installed with the RST fork. This has a travel range of 80mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Fork material
The fork is made out of steel, so, it can add some extra weight to your bike. However, steel is a pretty tough and durable material.
Wheels
The Ranger 2020 e-bike is equipped with 26″ aluminum wheels when leaving the factory. These wheels give you great handling over your e-bike. However, they provide less traction than 29″ wheels do.
Brakes
Nothing is more important on a bike than its ability to brake properly. Magnum Ranger is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
