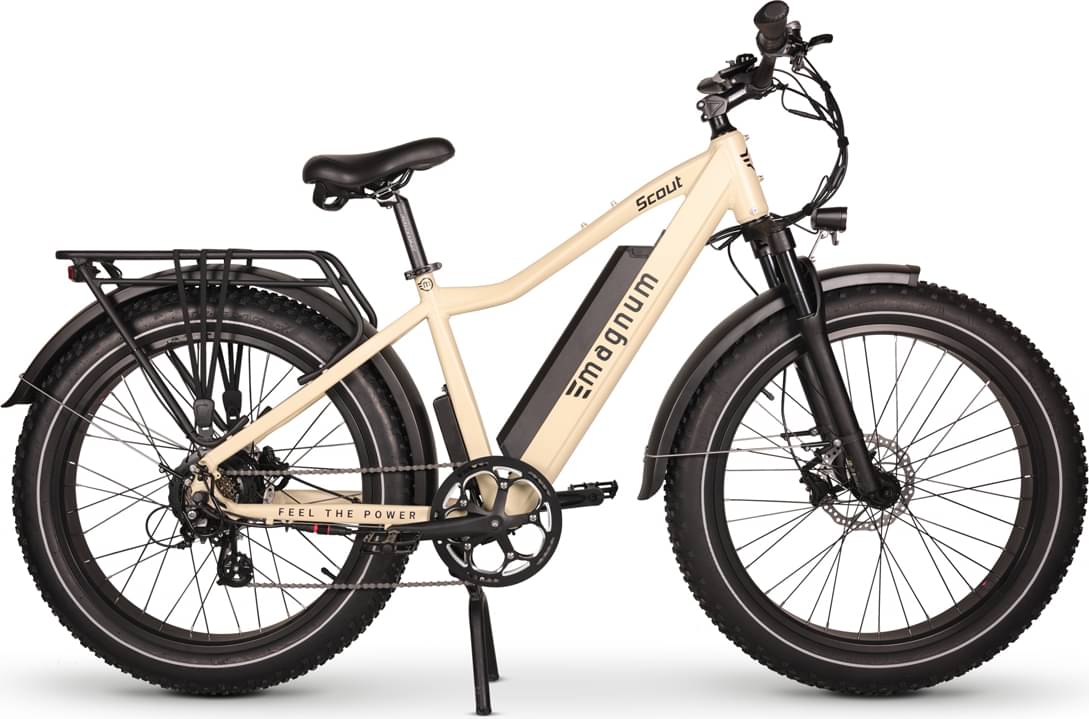

Magnum Scout 2021
2021 E-bike
Estimate price |
2,599$
Weight | 33.42 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 26" -
Travel Front 100mm -
Groupset Shimano -
Suspension Hardtail -
Motor Bafang 750W hub-drive -
Battery Weight: 9.5 lbs (4.3 kg) (10.7lbs for 19.2Wh Battery), Voltage: 48 volts, Amp Hours: 17.5 ah (Optional 19.2Ah), Watt Hours: 840 wh (Optional 921.6Wh), Chemistry: Lithium-ion -
Drivetrain 1 × 7 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum Alloy
Suspension Fork
Unbranded Spring Suspension, 100mm Travel, Compression Clicker with Lockout, Preload Adjust, 32mm Black Steel Stanchions, 135mm Hub Spacing, 9mm Axle with Quick Release Skewer
Drivetrain
Shift Levers
Shimano SIS Index Thumb Shifter on Right
Cassette
7 Speed 1x7 Shimano Altus Derailleur, Shimano MF-TZ500-7 14-28 Tooth Cassette
Crank
Forged Aluminum Alloy, 170mm Length, Square Tapered Bottom Bracket, 52 Tooth Steel Chainring with Alloy Guard
Pedals
Wellgo VB087 Aluminum Alloy Platform, Black, Fixed Pins
Wheels
Rims
Aluminum Alloy, Double Walled, 80mm Outer Width, 36 Hole
Spokes
Stainless Steel, 13 Gauge Front 12 Gauge Rear, Black with Adjustable Nipples
Tires
Kenda, 26" x 4.0" (98-559)
Brakes
Brakes
Logan Hydraulic Disc with 180mm Rotors, Dual Piston Calipers, Logan Three Finger Levers with Adjustable Reach and Brake Light Activation and Motor Inhibitors
Cockpit
Stem
Promax, 100mm Length, 31.8mm Clamp Diameter, One 5mm Spacer, One 10mm Spacer, One 20mm Tapered Base Spacer
Handlebar
Mid-Rise, Aluminum Alloy, 700mm Length
Grips
Padded, Faux Leather, Stitched
Headset
Threadless, Internal Cups, Straight 1-1/8"
Seat
Saddle
Unbranded Comfort Hybrid, Integrated Lift Handle
Seatpost
Promax, Aluminum Alloy, Single Bolt Saddle Clamp
Motor & Battery
Motor
Weight: 11.5 lbs (5.21 kg), Brand: Bafang, Type: Rear-Mounted Geared Hub, Nominal Output: 750 watts, Peak Output: 1000 watts
Battery
Weight: 9.5 lbs (4.3 kg) (10.7lbs for 19.2Wh Battery), Voltage: 48 volts, Amp Hours: 17.5 ah (Optional 19.2Ah), Watt Hours: 840 wh (Optional 921.6Wh), Chemistry: Lithium-ion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 35cm |
|---|---|
| Wheels | 26" |
About this model
Scout is part of the Magnum E Scout model. There are 2 e-bikes that carry this model name.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Fatbike e-bikes average price
Our math shows that the average cost of a dependable Fatbike e-bike is 2033$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Fatbike e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Magnum Scout price was 2599$. In conclusion, this e-bike price is 27.84% more expensive than the price of the average Fatbike e-bike.
Fatbike e-bikes average weight
Fatbike e-bikes have an average weight of 31.21 kg (68.81 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 33.42 kg (73.68 lbs), the Scout model is a bit heavier than average. In short, the average Fatbike e-bike weight is 7.08% lower than this one.
Overview of components
Fork material
When it comes to the fork, this e-bike has a steel one, which is tougher than carbon in the case of an impact. However, it can add some extra weight to the e-bike.
Wheels size
As for the wheels, Magnum Scout 2021, has a 26″ aluminum model. Being a little smaller, these wheels will fit both small and tall riders. However, you will need increased suspension than in the case of 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Scout comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
