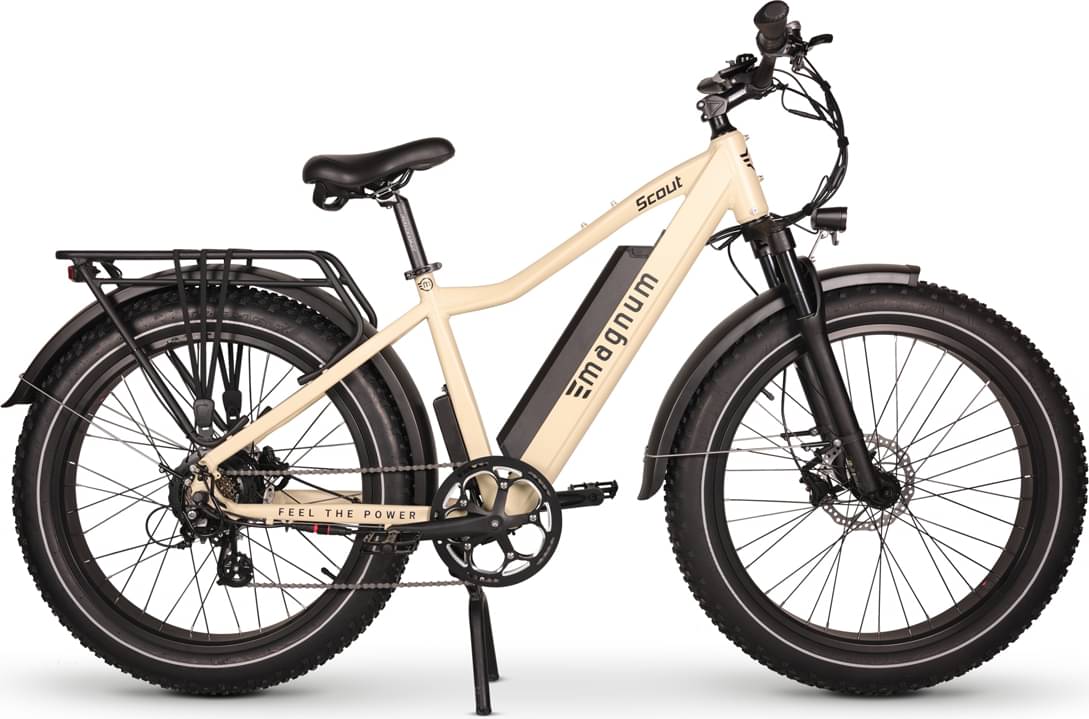

Magnum Scout 2022
2022 E-bike
Estimate price |
2,599$
Weight | 33.42 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 26" -
Travel Front 100mm -
Groupset Shimano -
Suspension Hardtail -
Motor Bafang 750W hub-drive -
Battery Weight: 9.5 lbs (4.3 kg) (10.7lbs for 19.2Wh Battery), Voltage: 48 volts, Amp Hours: 17.5 ah (Optional 19.2Ah), Watt Hours: 840 wh (Optional 921.6Wh), Chemistry: Lithium-ion -
Drivetrain 1 × 7 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum Alloy
Suspension Fork
Unbranded Spring Suspension, 100mm Travel, Compression Clicker with Lockout, Preload Adjust, 32mm Black Steel Stanchions, 135mm Hub Spacing, 9mm Axle with Quick Release Skewer
Drivetrain
Shift Levers
Shimano SIS Index Thumb Shifter on Right
Cassette
7 Speed 1x7 Shimano Altus Derailleur, Shimano MF-TZ500-7 14-28 Tooth Cassette
Crank
Forged Aluminum Alloy, 170mm Length, Square Tapered Bottom Bracket, 52 Tooth Steel Chainring with Alloy Guard
Pedals
Wellgo VB087 Aluminum Alloy Platform, Black, Fixed Pins
Wheels
Rims
Aluminum Alloy, Double Walled, 80mm Outer Width, 36 Hole
Spokes
Stainless Steel, 13 Gauge Front 12 Gauge Rear, Black with Adjustable Nipples
Tires
Kenda, 26" x 4.0" (98-559)
Brakes
Brakes
Logan Hydraulic Disc with 180mm Rotors, Dual Piston Calipers, Logan Three Finger Levers with Adjustable Reach and Brake Light Activation and Motor Inhibitors
Cockpit
Stem
Promax, 100mm Length, 31.8mm Clamp Diameter, One 5mm Spacer, One 10mm Spacer, One 20mm Tapered Base Spacer
Handlebar
Mid-Rise, Aluminum Alloy, 700mm Length
Grips
Padded, Faux Leather, Stitched
Headset
Threadless, Internal Cups, Straight 1-1/8"
Seat
Saddle
Unbranded Comfort Hybrid, Integrated Lift Handle
Seatpost
Promax, Aluminum Alloy, Single Bolt Saddle Clamp
Motor & Battery
Motor
Weight: 11.5 lbs (5.21 kg), Brand: Bafang, Type: Rear-Mounted Geared Hub, Nominal Output: 750 watts, Peak Output: 1000 watts
Battery
Weight: 9.5 lbs (4.3 kg) (10.7lbs for 19.2Wh Battery), Voltage: 48 volts, Amp Hours: 17.5 ah (Optional 19.2Ah), Watt Hours: 840 wh (Optional 921.6Wh), Chemistry: Lithium-ion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 35cm |
|---|---|
| Wheels | 26" |
Model Overview
Scout completes the Magnum E Scout model. Magnum released 2 e-bikes variations of this model so far.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Fatbike e-bikes
Our math shows that the average cost of a dependable Fatbike e-bike is 2033$. However, this doesn’t mean that if you spend less money on a Fatbike e-bike, you couldn’t get a decent one. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2022 for 2599$. Comparing this to the average Fatbike e-bike price, we see that the price is 27.84% higher.
Average weight for Fatbike e-bikes
Fatbike e-bikes have an average weight of 31.21 kg (68.81 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Scout weighs 33.42 kg (73.68 lbs) and is a bit heavier than the average. In short, the average Fatbike e-bike weight is 7.08% lower than this one.
Overview of components
Fork material
The fork on this e-bike is made out of steel, so, it can add some extra weight to your bike. However, steel is a pretty tough and durable material.
Wheels
As for the wheels, Magnum Scout 2022, has a 26″ aluminum model. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, they provide less traction than 29″ wheels do.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Scout comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
