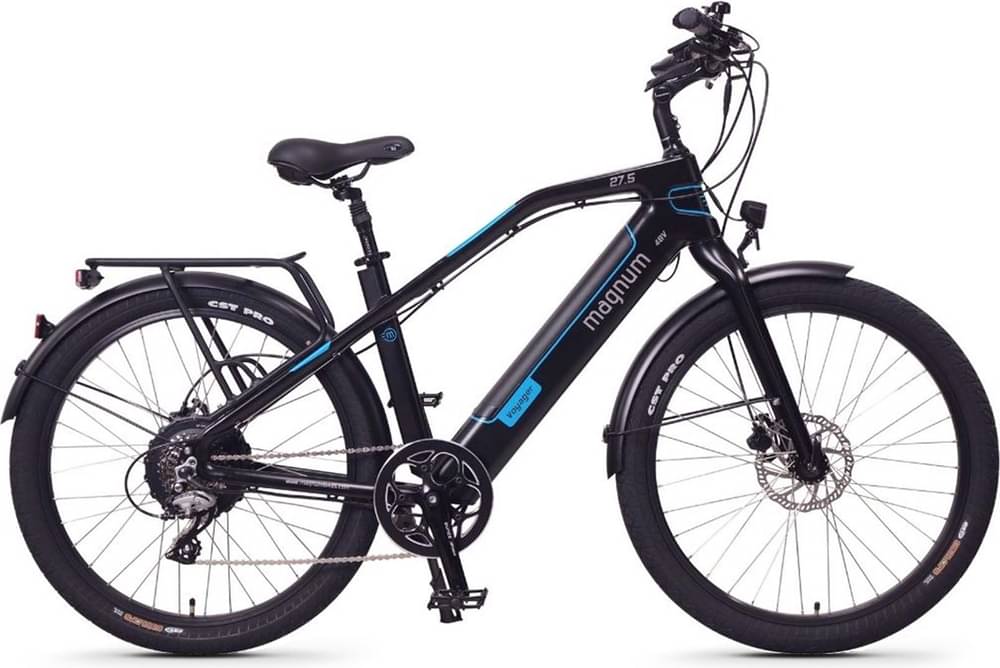

Magnum Voyager 2021
2021 E-bike
Estimate price |
2,349$
Weight | 29.93 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 650b -
Travel Front 80mm -
Fork SunTour XCT
-
Groupset Altus -
Suspension Hardtail -
Motor 500W 90Nm hub-drive -
Battery Weight: 7.6 lbs (3.44 kg), Brand: Samsung, LG, Panasonic, Voltage: 48 volts, Amp Hours: 12 ah, Watt Hours: 576 wh, Chemistry: Lithium Nickel Cobalt Manganese (Li-NCM) -
Drivetrain 1 × 8 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Aluminum Alloy
Suspension Fork
SR Suntour XCT Spring Suspension, 80mm Travel, Compression Adjust, 28mm Steel Stanchions, 100mm Hub Spacing, 9mm Axle with Quick Release Skewer
Drivetrain
Shift Levers
Shimano Altus M310 Triggers on Right (One-Way High, Three-Shift Low)
Cassette
8 Speed 1x8 Shimano Acera RDM360 Derailleur, 11-32 Tooth Nickel Plated Cassette
Crank
Prowheel Ounce, Forged Alloy, 170mm Length, Square Taper Bottom Bracket, 48 Tooth Chainring with Alloy Guard
Pedals
Wellgo VB087 Aluminum Alloy Platform, Black, Fixed Pins
Wheels
Rims
Aluminum Alloy, Double Walled, Machined Sidewalls, 32mm Outer Width, 36 Hole
Spokes
Stainless Steel, 13 Gauge, Silver with Adjustable Nipples
Tires
CST, 27.5" x 2.35" (60-584)
Cockpit
Stem
Promax, Tool-Free Adjustable Angle, 70mm Base Height, 100mm Length, 25.4mm Clamp Diameter, One 15mm Spacer, One 10mm Spacer
Handlebar
60mm Rise, 70mm Back Sweep, Aluminum Alloy, 660mm Length
Grips
Ergonomic, Faux Leather, Stitched
Headset
Neco, Threadless, Internal Cups, Straight 1-1/8"
Seat
Saddle
Selle Royal Free Way Royalgel, Comfort Saddle
Seatpost
Suntour XCT-ATB Suspension Fork (80mm Travel, Preload Adjustment Bolt in Base), Aluminum Alloy
Motor & Battery
Motor
Weight: 10.1 lbs (4.58 kg), Brand: Das-Kit, Type: Rear-Mounted Geared Hub, Nominal Output: 500 watts, Peak Output: 700 watts, Torque: 90 Newton meters
Battery
Weight: 7.6 lbs (3.44 kg), Brand: Samsung, LG, Panasonic, Voltage: 48 volts, Amp Hours: 12 ah, Watt Hours: 576 wh, Chemistry: Lithium Nickel Cobalt Manganese (Li-NCM)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 72cm |
|---|---|
| Wheels | 650 |
| Rider Min Height | 120 cm |
About this model
Voyager completes the Magnum E Voyager model. There is 1 e-bike that carries this model name.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Commuter e-bikes
According to our math, the average price for a trustworthy Commuter e-bike is 2569$. However, you could also get a good Commuter e-bike even if you pay a lower amount than the average price. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
When Magnum released this model in 2021, its price was 2349$. Comparing the average cost of a Commuter e-bike to this one, you will see that Voyager price is 9.37% smaller.
Commuter e-bikes average weight
If we make a quick analysis of the average weight of a Commuter e-bike, we get 25.2 kg (55.56 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
With a weight of 29.93 kg (65.98 lbs), Magnum e-bike is much heavier than average. In conclusion, the average Commuter e-bike weighs 18.77% less than Voyager.
Voyager components
Fork
The SunTour XCT is included from the factory. It has a travel distance of 80mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Fork material
Voyager has a steel fork, which is tougher than carbon in the case of an impact. However, it can add some extra weight to the e-bike.
Wheels size
The Voyager 2021 e-bike is equipped with aluminum wheels when leaving the factory. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they have problems in wet conditions.
