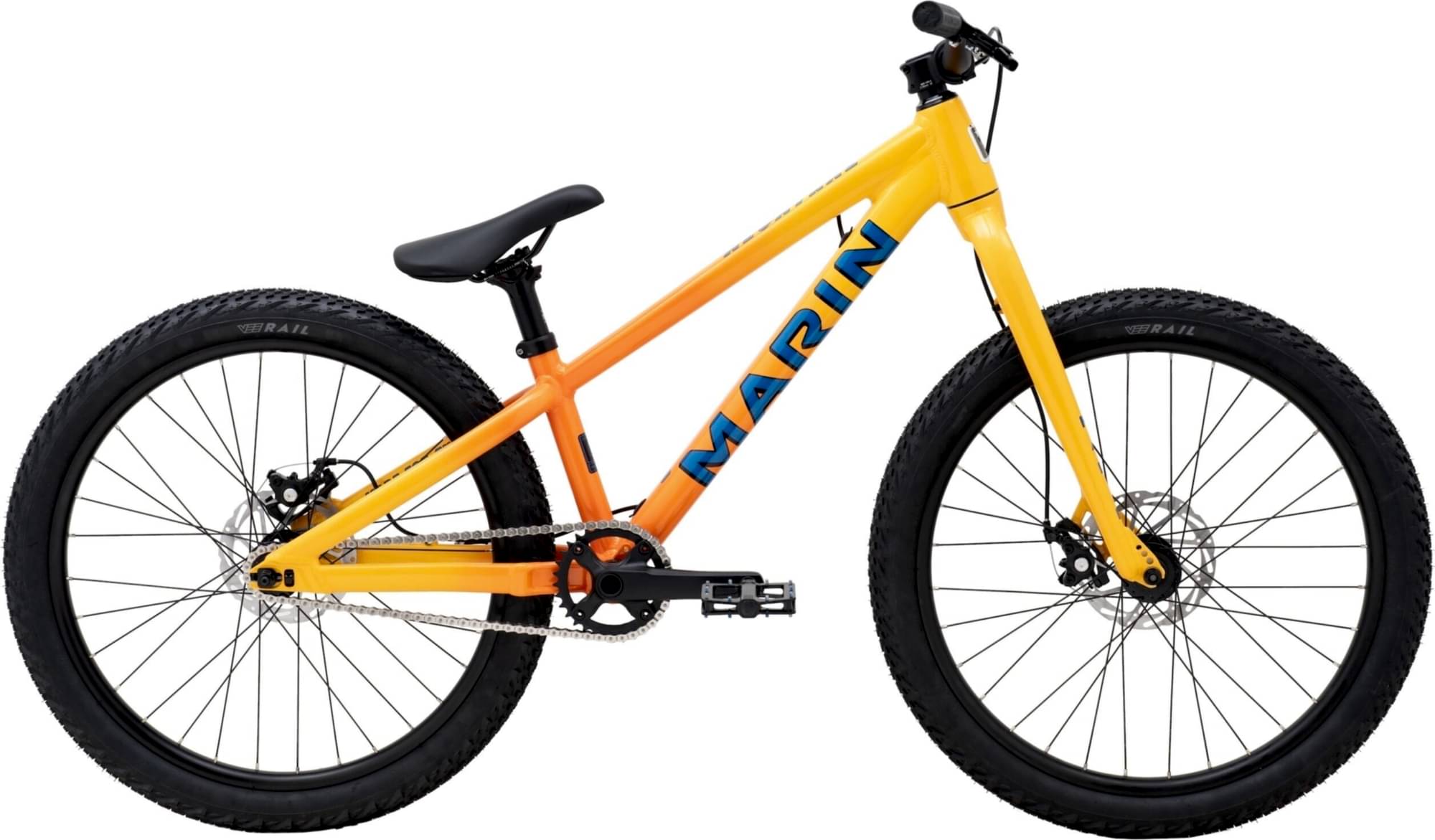

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Suspension Rigid -
Drivetrain Single Speed -
Brakes Tektro Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Series 3 6061 Aluminum, 24” Wheels, 135x10mm Horizontal Single Speed Dropouts, 73mm Threaded BB, ISCG 05 Tabs
Suspension Fork
Marin Series 2 CroMo 24", Suspension Corrected, 100x9mm Dropouts
Drivetrain
Rear Derailleur
-
Front Derailleur
-
Shift Levers
-
Cassette
14T Single Speed Cog
Crank
Marin Forged Alloy, Alloy 32T DM Chainring, 155mm Length
Bottom Bracket
External Sealed Cartridge Bearings
Chain
KMC HL-1
Pedals
Alloy Platform
Wheels
Front Hub
Forged Alloy, Bolt On 3/8" Axle, 100mm Spacing
Rear Hub
Forged Alloy, 135x10mm, Bolt-On, Quad Sealed Bearings, Disc, 32H
Rims
Marin Custom Extrusion, 27mm Inner, Pinned Joint
Spokes
14g Black Stainless Steel
Tires
Vee Tire, Rail 24x2.25”, LSG Compound, Wire Bead
Brakes
Brakes
Tektro MD-M280 Mechanical Disc 160mm Rotor
Brake Levers
Tektro CL-330TS Alloy
Cockpit
Stem
Marin 3D Forged Alloy, 31.8mm clamp, 35mm extension
Handlebar
Marin Riser, 6061 Double Butted Aluminum, 31.8mm at center bulge, 38mm Rise, 700mm Width, 4º Up, 9º Back
Grips
Marin MTN, Closed End
Headset
FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
Seat
Saddle
Marin DJ Saddle
Seatpost
Marin Alloy, 30.9mm
Fit data
Geometry
