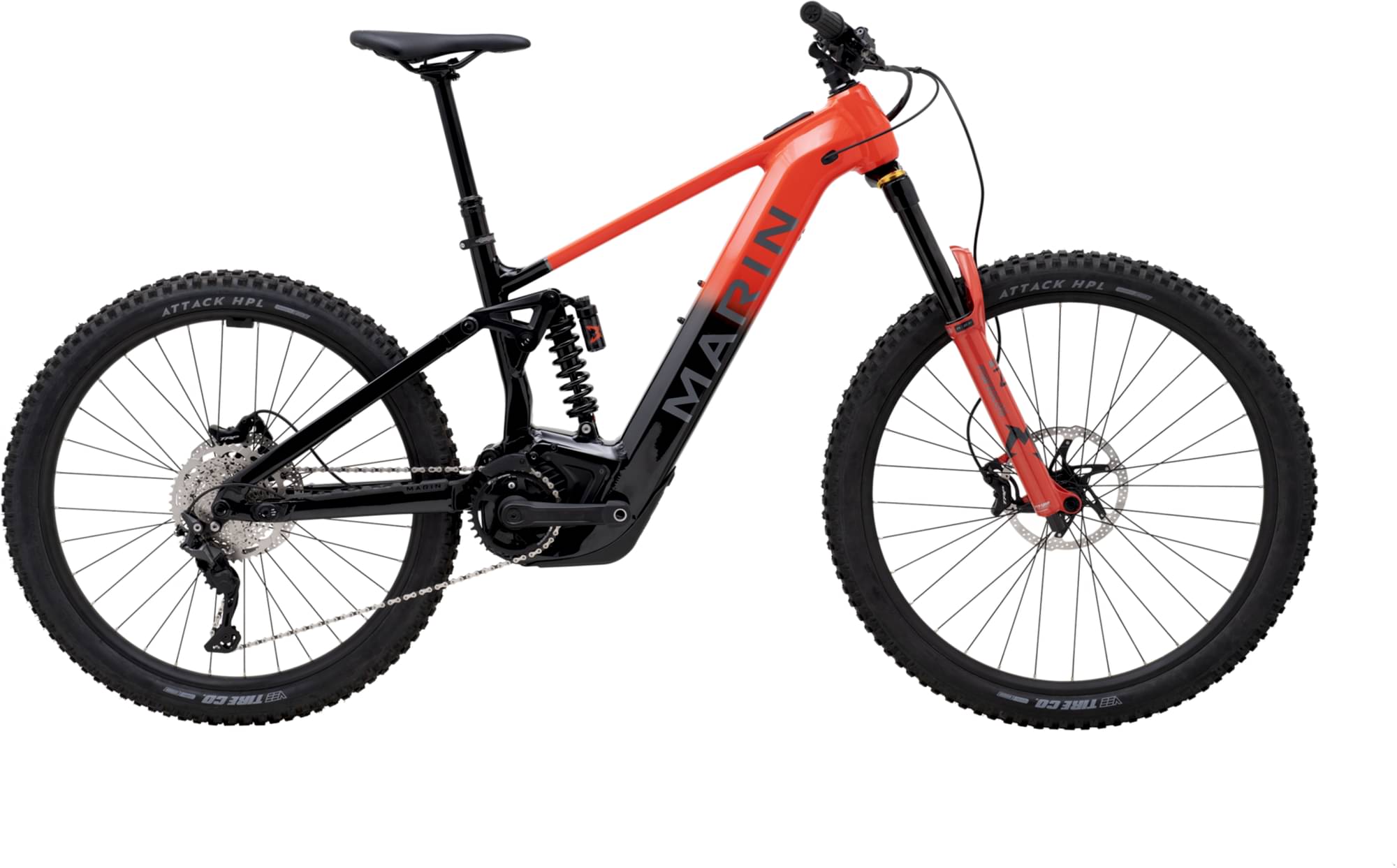

Marin Alpine Trail E1 Bosch 2024
2024 E-bike
Estimate price |
7,225$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 170mm -
Travel Rear 160mm -
Fork Marzocchi Bomber Z1
-
Groupset CUES -
Suspension Full -
Motor Bosch 600W 85Nm mid-drive -
Battery Bosch PowerTube 750 Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
167cm - 179cm
LG
176cm - 188cm
XL
15cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
All New, Series 4 Alloy, 160mm MultiTrac Suspension LT, Adjustable Headset & CS Length/Height, Integrated Battery/Charging Port, 148mm Rear Thru-Axle
Suspension Fork
Marzocchi Z1, 170mm, 29", 110x15 Kabolt Thru Axle, 44mm Offset
Drivetrain
Rear Derailleur
Shimano CUES RD-U6000 GS, 10-Speed
Front Derailleur
-
Shift Levers
Shimano CUES SL-U6000-10R, 10-Speed
Cassette
Shimano CS-LG300-10, 11-48T
Crank
e*thirteen e*spec Plus, 160mm Length
Chain
Shimano LG500
Pedals
-
Wheels
Front Hub
Shimano FH-TC500, 110x15mm, Centerlock, 32H
Rear Hub
Shimano HB-TC500, 148x12mm, Centerlock, Standard Freehub Body
Rims
Front: Marin Aluminum Double Wall, 29" Diameter, 32mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible; Rear: Marin Aluminum Double Wall, 27.5" Diameter, 32mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible
Spokes
14g Black Stainless Steel
Tires
Vee Tire Co Attack HPL, E-Control Compound, Front 29x2.5", Rear 27.5x2.5"
Brakes
Brakes
TRP Slate EVO 4-Piston Hydraulic, 203mm Rotor, 2.3mm Thick
Brake Levers
TRP Slate EVO
Cockpit
Stem
Marin 3D Forged Alloy, 35mm
Handlebar
Marin Mini Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
Grips
Marin Grizzly Lock-On
Headset
FSA Custom Headset, Adjustable HTA Design
Seat
Saddle
Marin Speed Concept
Seatpost
TranzX, YSP39 1x Remote, 34.9 Seatpost Diameter, Travel S = 150mm, M/L = 170mm, XL = 200mm
Motor & Battery
Motor
Bosch Performance Line CX, 85Nm, 20MPH (US, NZ)/25 km/h (Rest of World) Top Assisted Speed
Battery
Bosch PowerTube 750 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.377 mm | 1.311 mm | 1.244 mm |
| Bottom Bracket Height | 352 mm | 352 mm | 352 mm |
| Front Center | 813 mm | 848 mm | 880 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 145 mm | 145 mm | 145 mm |
| Stack | 633.51 mm | 642.46 mm | 646.93 mm |
| Reach | 460 mm | 490 mm | 520 mm |
| Top Tube Length | 591.33 mm | 626.52 mm | 659.24 mm |
| Seat Tube Angle | 79 ° | 78.8 ° | 78.6 ° |
| Seat Tube Length | 410 mm | 420 mm | 430 mm |
| Head Tube Angle | 63.5 ° | 63.5 ° | 63.5 ° |
| Head Tube Length | 115 mm | 125 mm | 130 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1248 mm | 1282 mm | 1314 mm |
| Bottom Bracket Drop | 7 mm | 7 mm | 7 mm |
| Standover Height | 712 mm | 721 mm | 732 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 167 cm | 176 cm | 15 cm |
| Rider Max Height | 179 cm | 188 cm | 193 cm |
