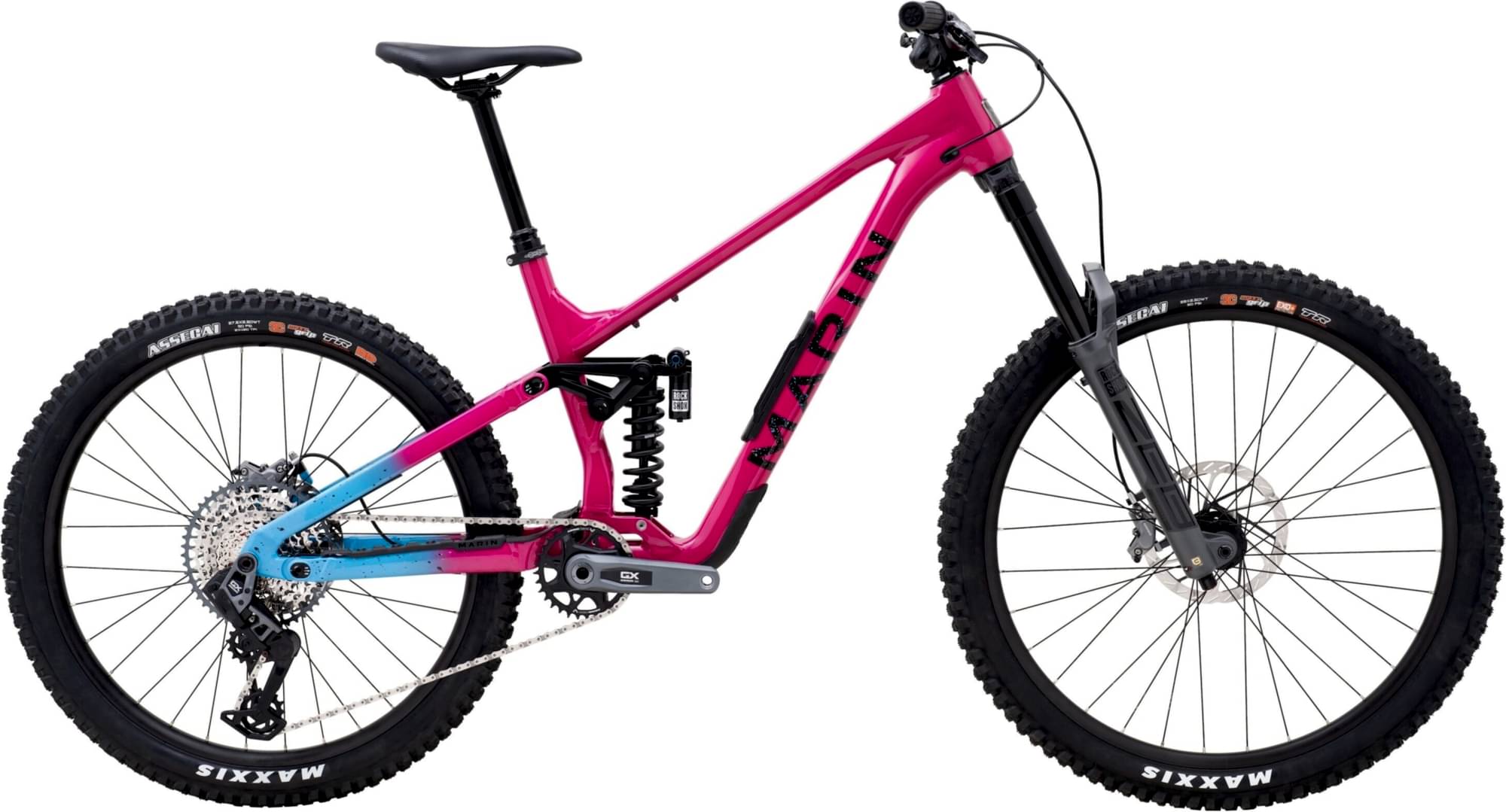

Marin Alpine Trail XR AXS 2024
2024 Mountain
Estimate price |
6,979$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 170mm -
Travel Rear 160mm -
Fork RockShox ZEB Ultimate
-
Groupset X01 Eagle AXS, GX Eagle Transmission -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 169cm
MD
166cm - 179cm
LG
176cm - 189cm
XL
187cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
All New Series 4 6061 Aluminum, 29” Wheels, 160mm Travel MultiTrac LT Suspension Platform, Integrated Downtube Storage, Adjustable Headset & CS Length/BB Height, Full Internal Cable Routing, Chainstay Mounted Post Mount Disc Brake, 148x12mm Boost Thru- Axle, 73mm Threaded BB w/ ISCG05 Tabs
Suspension Fork
RockShox Zeb Ultimate, 170mm Travel, 29", 110x15mm Maxle Stealth, 44mm Offset
Drivetrain
Rear Derailleur
SRAM GX Eagle AXS T-Type
Front Derailleur
-
Shift Levers
SRAM AXS POD MMX
Cassette
SRAM GX 1275 T-Type 10-52T
Crank
SRAM GX Eagle, 32T, 55MM CL, 170MM Length
Bottom Bracket
SRAM DUB MTB 73
Chain
SRAM GX Eagle T-Type
Pedals
-
Wheels
Front Hub
Formula, DC-711, 110x15mm, 6-Bolt Disc, 32h
Rear Hub
Formula, DCL-3482, 148x12, 4 Sealed Bearings, 6-Bolt Disc, XD Driver, 32H
Rims
Marin, Double Wall Alloy, 29mm Inner, Sleeved Joint, Disc Specific, 32H, Tubeless Compatible
Spokes
14g Black Stainless Steel
Tires
Maxxis Assegai MAXX GRIP, Front 29x2.5 EXO+, Rear 27.5x2.5" DoubleDown, Tubeless compatible
Brakes
Brakes
SRAM Code Bronze 4-Piston Hydraulic Disc, HSC 200mm Rotor
Brake Levers
SRAM Code Bronze Stealth Hydraulic
Cockpit
Stem
Marin CNC, 35mm Length, 35mm Bar Bore
Handlebar
Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back
Grips
Marin Grizzly Lock-On
Headset
FSA Custom, Adjustable HTA Design
Seat
Saddle
Marin Speed Concept
Seatpost
TranzX, YSP39 1x Remote, 34.9 Seatpost Diameter, Travel S = 150mm, M/L = 170mm, XL = 200mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.442 mm | 1.377 mm | 1.311 mm | 1.244 mm |
| Bottom Bracket Height | 352 mm | 352 mm | 352 mm | 352 mm |
| Front Center | 777 mm | 813 mm | 848 mm | 883 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 145 mm | 145 mm | 146 mm | 143 mm |
| Stack | 620.08 mm | 633.51 mm | 642.6 mm | 646.93 mm |
| Reach | 430 mm | 460 mm | 490 mm | 520 mm |
| Top Tube Length | 556 mm | 592 mm | 626 mm | 659 mm |
| Seat Tube Angle | 79.2 ° | 79 ° | 78.8 ° | 78.6 ° |
| Seat Tube Length | 400 mm | 420 mm | 430 mm | 460 mm |
| Head Tube Angle | 63.5 ° | 63.5 ° | 63.5 ° | 63.5 ° |
| Head Tube Length | 100 mm | 115 mm | 125 mm | 130 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1211 mm | 1248 mm | 1282 mm | 1317 mm |
| Bottom Bracket Drop | 7 mm | 7 mm | 7 mm | 7 mm |
| Standover Height | 683 mm | mm | 695 mm | 698 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 160 cm | 166 cm | 176 cm | 187 cm |
| Rider Max Height | 169 cm | 179 cm | 189 cm | 193 cm |
