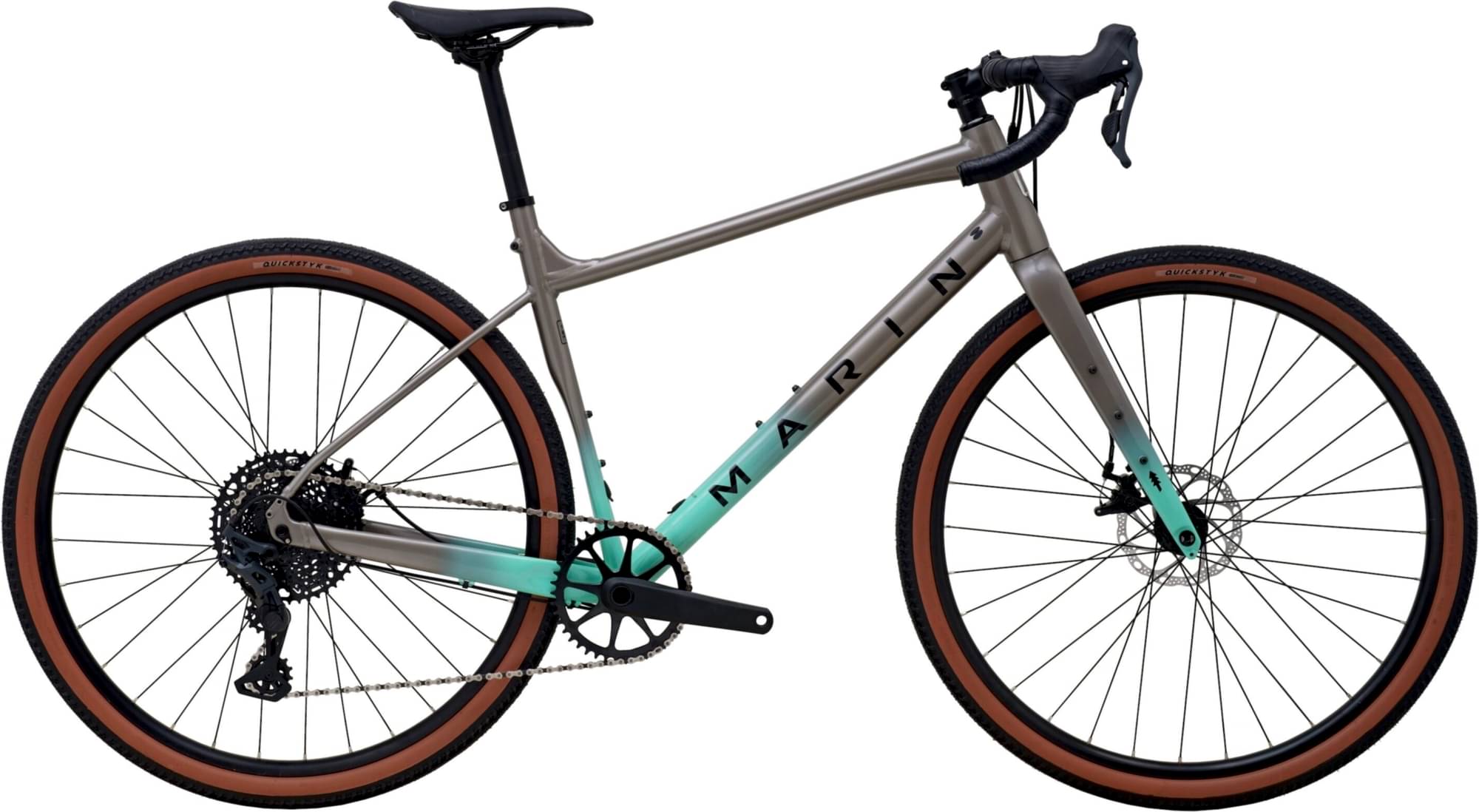

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset microSHIFT Sword -
Suspension Rigid -
Drivetrain 1 × 10 -
Brakes Tektro Mechanical Disc
Sizing
Recommended size guide.
SM
160cm - 169cm
MD
166cm - 179cm
LG
176cm - 189cm
XL
187cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Series 3 Beyond Road, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle
Suspension Fork
Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets
Drivetrain
Rear Derailleur
microSHIFT SWORD 10-Speed Wide-Range
Front Derailleur
-
Shift Levers
microSHIFT SWORD, 10-Speed
Cassette
microSHIFT SWORD 10-Speed, 11-48T
Crank
Forged Alloy 1x10, Hollow CrMo Spindle, Narrow Wide 42T
Bottom Bracket
External Sealed Cartridge Bearings
Chain
KMC X10
Pedals
-
Wheels
Front Hub
Forged Aluminum Alloy, Disc, 32H
Rear Hub
Forged Aluminum Alloy, Disc, 32H
Rims
Marin Aluminum Double Wall, 25mm Inner, 18mm Tall, Disc Specific
Tires
Vee Tire Co. Quickstyx, 700x45, Tubeless Compatible
Brakes
Brakes
Tektro MD-C500 Dual Piston Road Mechanical Disc, 160mm Rotor
Brake Levers
microSHIFT SWORD
Cockpit
Stem
Marin 3D Forged Alloy
Handlebar
Marin Butted Alloy, Compact 16º Flared Drop
Grips
Marin Shock Absorbing Perforated Tape
Headset
FSA Orbit IS, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”
Seat
Saddle
Marin Beyond Road Concept
Seatpost
Marin Alloy, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.369 mm | 1.348 mm | 1.339 mm | 1.351 mm |
| Bottom Bracket Height | 282.5 mm | 282.5 mm | 282.5 mm | 282.5 mm |
| Front Center | 653 mm | 680 mm | 710 mm | 743 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 90 mm | 90 mm | 90 mm | 90 mm |
| Stack | 547.6 mm | 566 mm | 589.1 mm | 621.5 mm |
| Reach | 400 mm | 420 mm | 440 mm | 460 mm |
| Top Tube Length | 546.7 mm | 582.3 mm | 608.9 mm | 638.2 mm |
| Seat Tube Angle | 75 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 460 mm | 485 mm | 505 mm | 530 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 130 mm | 150 mm | 175 mm | 210 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1065 mm | 1092 mm | 1122 mm | 1155 mm |
| Bottom Bracket Drop | 80 mm | 80 mm | 80 mm | 80 mm |
| Standover Height | 678 mm | 687 mm | 708 mm | 734 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 160 cm | 166 cm | 176 cm | 187 cm |
| Rider Max Height | 169 cm | 179 cm | 189 cm | 193 cm |
