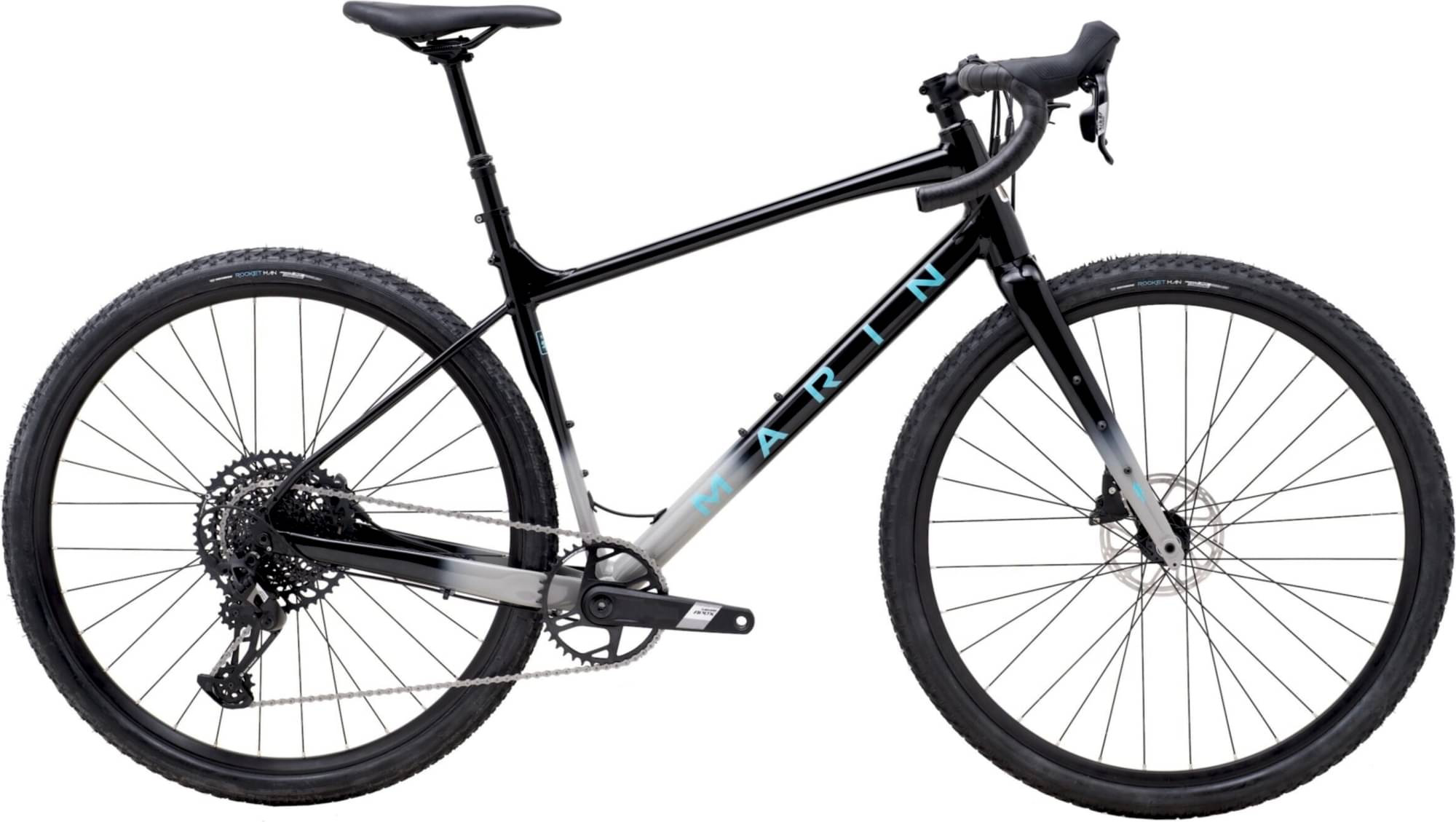

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Apex -
Suspension Rigid -
Drivetrain 1 × 12 -
Brakes SRAM Apex Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Series 3 Beyond Road, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle
Suspension Fork
Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets
Drivetrain
Rear Derailleur
SRAM Apex 1 12-Speed
Front Derailleur
-
Shift Levers
SRAM Apex 1 1x12-Speed
Cassette
SRAM CS-XG-1275, 10-52T
Crank
SRAM Apex 1, 40T
Bottom Bracket
SRAM DUB BSA
Chain
SRAM NX
Pedals
-
Wheels
Front Hub
Forged Aluminum Alloy, 100x12mm, Disc, 32H
Rear Hub
Forged Aluminum Alloy, 142x12mm, Disc, 32H
Rims
Marin Aluminum Double Wall, 25mm Inner, 18mm Tall, Disc Specific, Tubeless Compatible
Tires
Vee Tire Co. Quikstyk, 700x45, Folding Bead, Tubeless Compatible
Brakes
Brakes
SRAM Apex 1 Flat-Mount Hydraulic Disc, 160mm Rotor
Brake Levers
SRAM Apex 1 Hydraulic Disc
Cockpit
Stem
Marin 3D Forged Alloy
Handlebar
Marin Butted Alloy, Compact 16º Flared Drop
Grips
Marin Shock Absorbing Perforated Tape
Headset
FSA Orbit IS, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”
Seat
Saddle
Marin Beyond Road Concept Elite
Seatpost
TranzX YSP38J, Size S-M 70mm, Size L-XL 110mm Travel, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.369 mm | 1.348 mm | 1.339 mm | 1.351 mm |
| Bottom Bracket Height | 282.5 mm | 282.5 mm | 282.5 mm | 282.5 mm |
| Front Center | 653 mm | 680 mm | 710 mm | 743 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 90 mm | 90 mm | 90 mm | 90 mm |
| Stack | 547.6 mm | 566 mm | 589.1 mm | 621.5 mm |
| Reach | 400 mm | 420 mm | 440 mm | 460 mm |
| Top Tube Length | 546.7 mm | 582.3 mm | 608.9 mm | 638.2 mm |
| Seat Tube Angle | 75 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 460 mm | 485 mm | 505 mm | 530 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 130 mm | 150 mm | 175 mm | 210 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1065 mm | 1092 mm | 1122 mm | 1155 mm |
| Bottom Bracket Drop | 80 mm | 80 mm | 80 mm | 80 mm |
| Standover Height | 678 mm | 687 mm | 708 mm | 734 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
