Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 20" -
Groupset Tourney, Shimano -
Suspension Rigid -
Drivetrain 1 × 7 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Series 1 6061 Aluminum, 20” Wheels, IS Seatstay Disc Mounts, 135mm Dropouts
Suspension Fork
Steel Rigid Fork, 100mm Spacing, QR Lever
Drivetrain
Rear Derailleur
Shimano Tourney, 7-Speed
Front Derailleur
- - -
Shift Levers
Shimano Revo Twist 1x7-Speed
Cassette
Shimano HG20, 12-28T
Crank
Forged Alloy, 36T, 140mm, Ring Guard
Bottom Bracket
Sealed Cartridge Bearings, Square Taper
Chain
KMC Z50
Pedals
Kids Specific Nylon Pedal
Wheels
Front Hub
Formula, 32H
Rear Hub
Formula, 32H
Rims
Marin, Double Wall Alloy
Spokes
14g Stainless Steel
Tires
Multisurface, 20” x 2.125”
Brakes
Brakes
Tektro MD280 Mechanical Disc, 160mm Rotor
Brake Levers
Kids Specific Short Reach Alloy Lever
Cockpit
Stem
Marin Alloy, 60mm
Handlebar
Marin Riser, 30mm Rise, 590mm Width
Grips
Marin Dual Density
Headset
FSA, Threaded
Seat
Saddle
Marin Kids MTB
Seatpost
Marin Alloy
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 20" |
|---|---|
| Stack Reach Ratio | 1.49 mm |
| Bottom Bracket Height | 232 mm |
| Front Center | 484 mm |
| Rake | 33 mm |
| Stack | 432.39 mm |
| Reach | 290.66 mm |
| Top Tube Length | 425 mm |
| Seat Tube Angle | 73 ° |
| Seat Tube Length | 308 mm |
| Head Tube Angle | 70 ° |
| Head Tube Length | 105 mm |
| Chainstay Length | 373 mm |
| Wheelbase | 855 mm |
| Bottom Bracket Drop | 25 mm |
| Standover Height | 504 mm |
| Wheels | 20" |
About this model

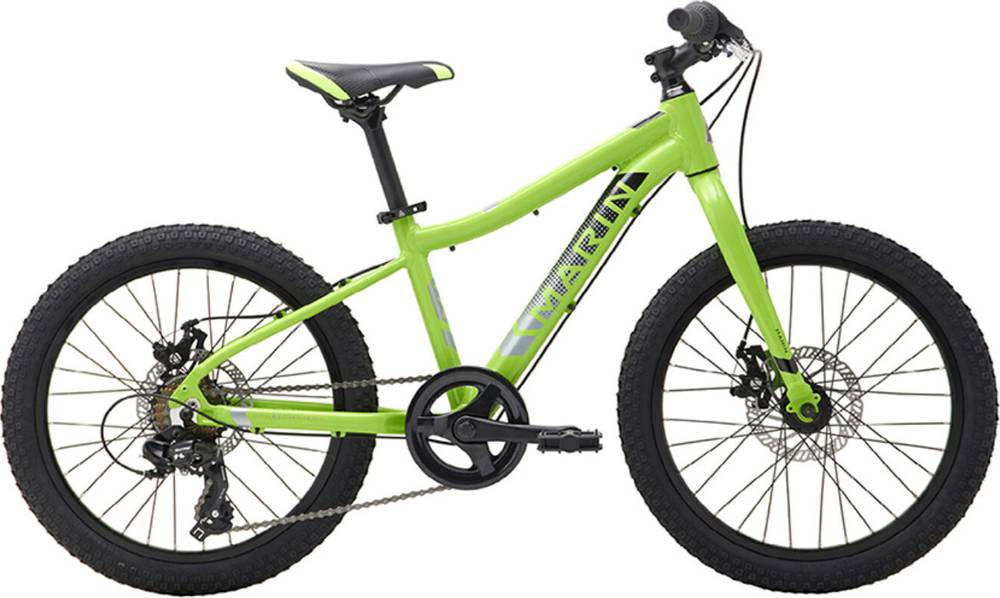

Hidden Canyon 20″ Disc is part of the Marin Hidden model. There are 13 bikes that carry this model name.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Youth bikes average price
If you want to purchase a solid Youth bike, it is important to know that the average cost is 278$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Youth bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Hidden Canyon 20″ Disc components
Fork material
The fork is made out of steel, which tends to be more flexible than carbon forks in general. However, a carbon fork is considerably lighter.
Wheels size
As for the wheels, Marin Hidden Canyon 20″ Disc 2018, has a 20″ aluminum model. The 20″ wheels are a good fit for folding bikes, BMX, or children bikes. In conclusion, they are great for flat ground or very easy trails.
Brakes
Nothing is more important on a bike than its ability to brake properly. Marin Hidden Canyon 20″ Disc is equipped with Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
