Bike details
Overview
Key information split into simple groups.

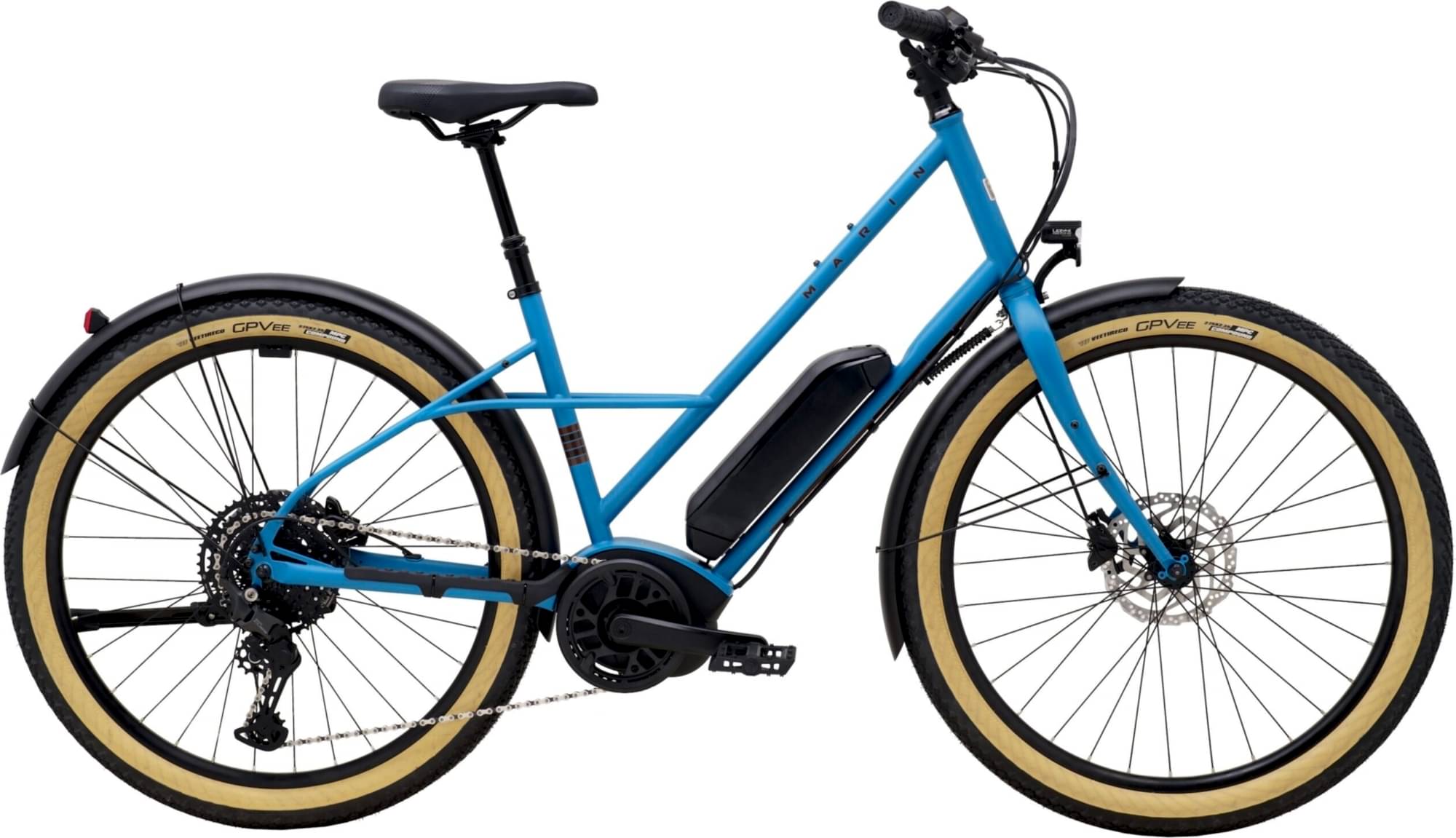

Bike summary
-
-
Frame Steel -
Groupset CUES -
Suspension Rigid -
Motor Bosch 250W 50Nm mid-drive -
Battery Bosch Power Pack 545, 545Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Series 2 Butted CrMo, 27.5” Wheels, Mixte Low-Step, Integrated Headset, Disc Brake, Kickstand Mount, Fender and Rack Mounts
Suspension Fork
CrMo Steel, Curved Blade, Disc Specific, Fender and Rack Eyelets
Drivetrain
Rear Derailleur
Shimano CUES 10-Speed
Front Derailleur
-
Shift Levers
Shimano CUES 10-Speed
Cassette
Shimano CUES 10-Speed 11-48T
Crank
Forged Aluminum w/ 38T Steel Chairing
Chain
KMC E11S
Pedals
Nylon Platform
Wheels
Front Hub
Forged Alloy, Disc Specific, 32H
Rear Hub
Forged Alloy, Disc Specific, 32H
Rims
Marin Aluminum Double Wall, Disc Specific
Spokes
14g Black Stainless Steel
Tires
Vee Tire Co. GPVee, 27.5x2.35", Wire Bead, Puncture Protection, Mixed Terrain Ready
Brakes
Brakes
Shimano MT201 Hydraulic, 180mm Rotor
Brake Levers
Shimano MT201 Hydraulic
Cockpit
Stem
Marin Alloy
Handlebar
Marin Urban Alloy, 31.8mm Clamp
Grips
Marin County
Headset
FSA Orbit CE No.8B
Seat
Saddle
Marin City Plush
Seatpost
TranzX YSP38J, 1x Shimano I-Spec EV Remote, Size S 70mm, All Other Sizes 110mm Travel
Motor & Battery
Motor
Bosch Active Plus, 250W, 50Nm, Class 1 (North America - 20mph/32Kph, EU - 25Kph)
Battery
Bosch Power Pack 545, 545Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.638 mm | 1.583 mm | 1.53 mm |
| Bottom Bracket Height | 280 mm | 280 mm | 280 mm |
| Front Center | 682 mm | 706 mm | 729 mm |
| Rake | 50 mm | 50 mm | 50 mm |
| Trail | 83 mm | 83 mm | 83 mm |
| Stack | 639 mm | 649 mm | 658 mm |
| Reach | 390 mm | 410 mm | 430 mm |
| Top Tube Length | 579 mm | 602 mm | 625 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 390 mm | 450 mm | 500 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 230 mm | 240 mm | 250 mm |
| Chainstay Length | 463 mm | 463 mm | 463 mm |
| Wheelbase | 1135 mm | 1159 mm | 1182 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm |
| Standover Height | 546 mm | 575 mm | 579 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
