Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Fork RockShox Recon Silver RL
-
Groupset SX Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Series 3 6061 Aluminum, 27.5” Wheels, Double Butted Frame, Internal Shifter and Dropper Post Routing, 148x12mm Boost Thru-Axle
Suspension Fork
RockShox Recon RL, 120mm Travel, Compression and Rebound Adjustment, Alloy Tapered Steerer, Solo Air Spring, 110x15mm Boost Spacing, Maxle Stealth, 42mm Offset
Drivetrain
Rear Derailleur
SRAM SX 12-Speed
Shift Levers
SRAM SX 1x12-Speed
Cassette
SRAM SX 12-Speed, 11/50T
Crank
Marin Forged Alloy 1x12, Hollow Spindle, Steel Narrow-Wide 32T Chainring, 76mm BCD
Bottom Bracket
External Sealed Cartridge Bearings
Chain
SRAM SX 12-Speed
Pedals
Nylon Platform
Wheels
Front Hub
Formula, 110x15mm, Sealed Cartridge Bearings, Centerlock Disc, 32H
Rear Hub
Formula, 148x12mm, Quad Sealed Cartridge Bearings, Alloy Axle, Centerlock Disc, 32H
Rims
Marin Aluminum Double Wall, 29mm Inner, Pinned Joint, Disc Specific, Tubeless Compatible
Spokes
14g Black Stainless Steel
Tires
Vee Tire, Crown Gem 29x2.3"/27.5x2.3", Dual Control Compound, Folding Bead
Brakes
Brakes
Shimano BR-MT400 Hydraulic Disc, 180mm Centerlock Rotor
Brake Levers
Shimano BL-MT400 Hydraulic
Cockpit
Stem
Marin 3D Forged Alloy, 35mm
Handlebar
Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 4º Up, 9º Back
Grips
Marin Single Clamp Locking
Headset
FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
Seat
Saddle
Marin Speed Concept
Seatpost
Marin Alloy, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.39 mm | 1.47 mm | 1.41 mm | 1.38 mm |
| Bottom Bracket Height | 308 mm | 308 mm | 311.5 mm | 311.5 mm | 311.5 mm |
| Front Center | 691 mm | 709 mm | 714 mm | 734 mm | 752 mm |
| Rake | 44 mm | 44 mm | 51 mm | 51 mm | 51 mm |
| Trail | 95 mm | 95 mm | 89 mm | 89 mm | 89 mm |
| Stack | 595.5 mm | 600.2 mm | 623.69 mm | 628.33 mm | 632.96 mm |
| Reach | 416 mm | 432 mm | 425.59 mm | 444.26 mm | 459.93 mm |
| Top Tube Length | 588 mm | 605 mm | 605 mm | 625 mm | 642 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 381 mm | 431 mm | 431 mm | 482 mm | 520 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 105 mm | 110 mm | 110 mm | 115 mm | 120 mm |
| Chainstay Length | 423 mm | 423 mm | 433 mm | 433 mm | 433 mm |
| Wheelbase | 1110 mm | 1128 mm | 1140 mm | 1161 mm | 1178 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 59 mm | 59 mm | 59 mm |
| Standover Height | 694 mm | 732 mm | 737 mm | 780 mm | 810 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 180 cm | 189 cm | 199 cm |
About this model

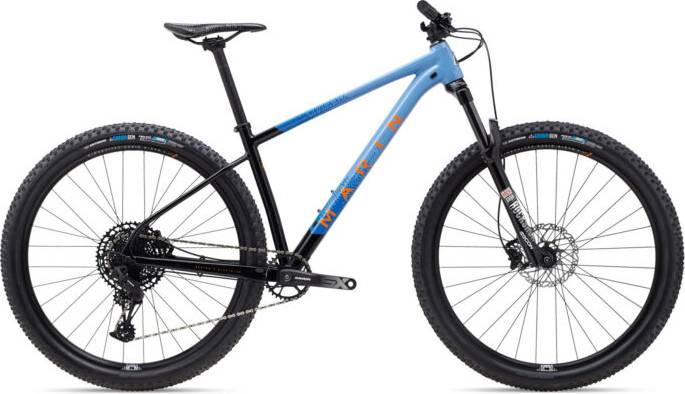

Nail Trail 6 is a Marin Nail model. There are 15 bikes that carry this model name.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail bikes
If you want an acceptable Trail bike you should know that the average price is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 1349$. Comparing this to the average Trail bike price, we see that the price is 104.74% smaller.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork
Marin Nail Trail 6 2020 bike is equipped with the RockShox Recon Silver RL fork, and has 120mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Fork material
Nail Trail 6 has an aluminum fork, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Wheels size
The wheels on Nail Trail 6 are the 27.5″ aluminum type. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Nail Trail 6 has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
Nail Trail 6 comes in 5 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
