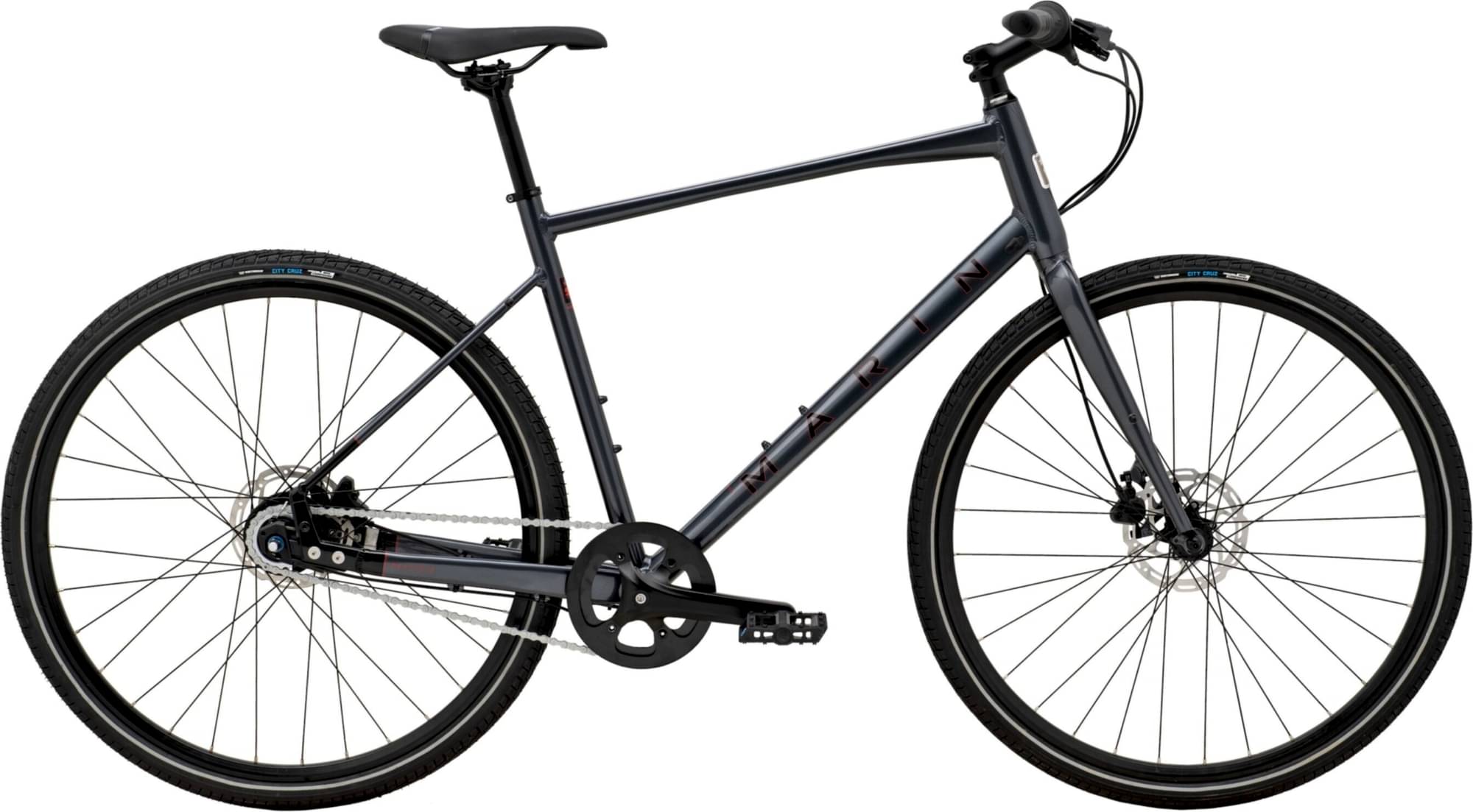

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Groupset Nexus -
Suspension Rigid -
Drivetrain Internally Geared Hub -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
XS
149cm - 156cm
SM
153cm - 167cm
MD
164cm - 177cm
LG
174cm - 187cm
XL
184cm - 190cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Series 2 Commute, 6061 Aluminum, 700C Wheels, Sliding Dropouts, Internal Cable Routing, Belt Drive Compatible, Flat-Mount Disc, Fender, Rack, and Integrated Kickstand Mounts
Suspension Fork
6061 Aluminum, Disc Brake, Straight-Blade
Drivetrain
Shift Levers
Shimano Nexus Twist Shifter 7-Speed
Cassette
Shimano Nexus Cog, 19T
Crank
Forged Alloy, 42T, 140mm, Ring Guard
Bottom Bracket
Sealed Cartridge Bearings, Square Taper
Chain
KMC Z1RB w/ Anti-Corrosion Coating
Pedals
Nylon Platform
Wheels
Front Hub
Forged Aluminum Alloy, 32H
Rear Hub
Shimano Nexus 7D 7-Speed Internally Geared Hub, Disc, 32H
Rims
Marin Aluminum Double Wall, Disc Specific
Tires
Vee Tire Co. Baldy, 700Cx32mm, Puncture Protection, Reflective Sidewall, Wire Bead
Brakes
Brakes
Shimano U300 Flat-Mount Hydraulic Disc, 160mm Rotor
Brake Levers
Shimano Hydraulic
Cockpit
Stem
Marin Alloy
Handlebar
Marin Alloy Flat
Grips
Dual Density Ergonomic
Headset
FSA No.8B
Seat
Saddle
Marin Fitness Plush
Seatpost
Marin Alloy, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.447 mm | 1.428 mm | 1.405 mm | 1.384 mm | 1.4 mm |
| Bottom Bracket Height | 285.5 mm | 285.5 mm | 285.5 mm | 285.5 mm | 285.5 mm |
| Front Center | 615 mm | 634 mm | 661 mm | 687 mm | 712 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 71 mm | 71 mm | 71 mm | 71 mm | 71 mm |
| Stack | 557 mm | 571 mm | 590 mm | 609 mm | 637 mm |
| Reach | 385 mm | 400 mm | 420 mm | 440 mm | 455 mm |
| Top Tube Length | 550 mm | 569 mm | 595 mm | 620 mm | 644 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm | 520 mm | 550 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 140 mm | 155 mm | 175 mm | 195 mm | 225 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1045 mm | 1065 mm | 1092 mm | 1118 mm | 1143 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 663 mm | 707 mm | 747 mm | 782 mm | 812 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 149 cm | 153 cm | 164 cm | 174 cm | 184 cm |
| Rider Max Height | 156 cm | 167 cm | 177 cm | 187 cm | 190 cm |
