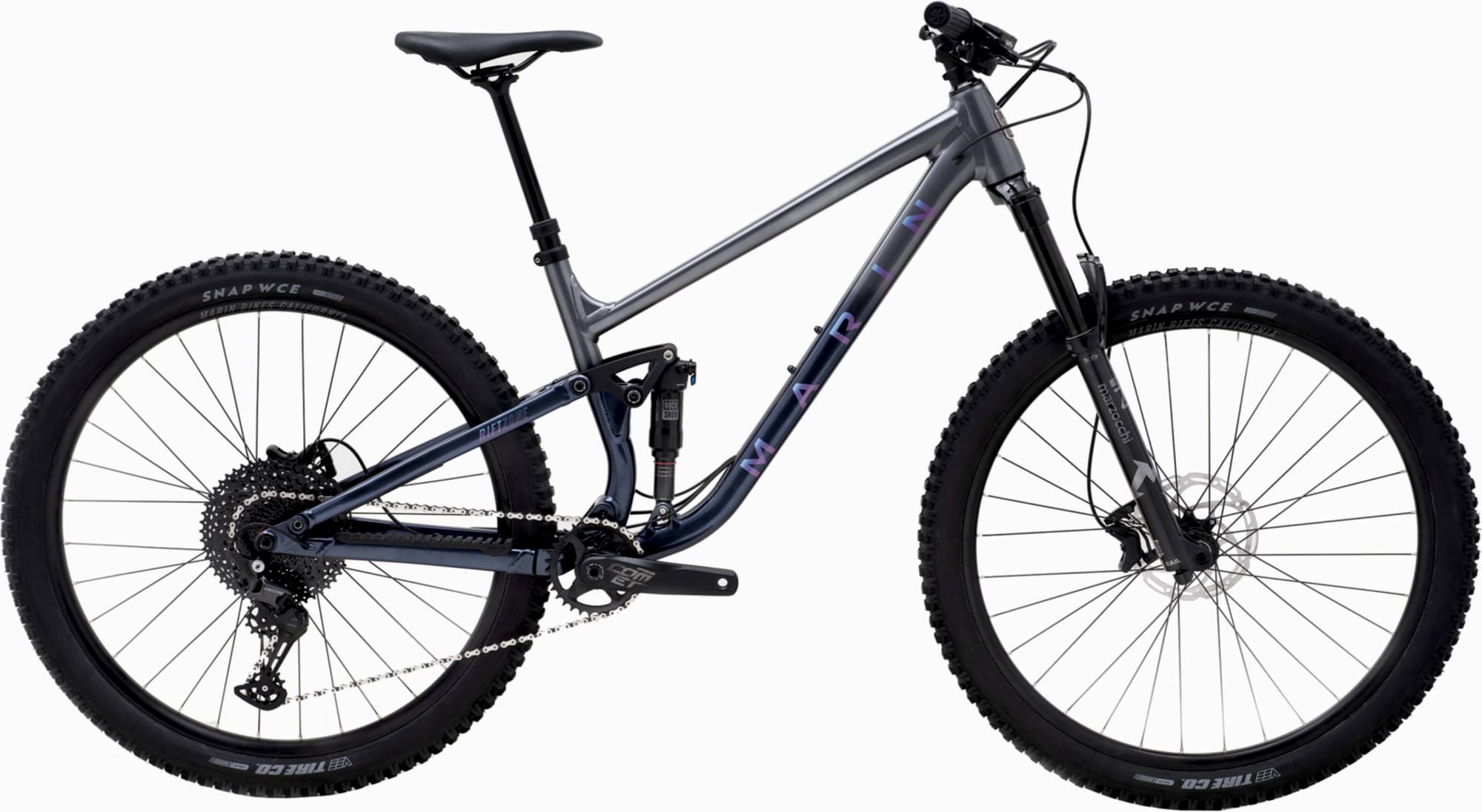

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 140mm -
Travel Rear 130mm -
Fork Marzocchi Bomber Z2
-
Groupset Deore -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
162cm - 170cm
LG
177cm - 185cm
XL
185cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Series 3 6061 Aluminum, 130mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs
Suspension Fork
Marzocchi Bomber Z2, Rail Damper with Sweep Adjustment, 140mm Travel, Kabolt Bolt-On Axle, 44mm Offset
Drivetrain
Rear Derailleur
Shimano Deore, 12-Speed, SGS
Front Derailleur
-
Shift Levers
Shimano Deore, 12-Speed, SL-M6100-R
Cassette
SunRace, 12-Speed, 11-51T
Crank
FSA Comet, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Boost Spacing
Bottom Bracket
External Sealed Cartridge Bearing
Chain
KMC X-12 Silver and Black
Pedals
-
Wheels
Front Hub
Shimano HF-TC500, 110x15mm, Centerlock, 32H
Rear Hub
Shimano FH-TC500, 148x12mm, Disc, HG Freehub Body
Rims
Marin, Double Wall Alloy, 29mm Inner, Pinned Joint, Disc Specific, 32H, Tubeless Compatible
Spokes
14g Black Stainless Steel
Tires
Vee Tire Co. Snap WCE 2.35", Top 40 Compound, GXE Core, 90 TPI, Tubeless compatible
Brakes
Brakes
Tektro HD-M535 Hydraulic Disc, 180mm Rotor
Brake Levers
Tektro HD-M535 Hydraulic
Cockpit
Stem
Marin 3D Forged Alloy, 35mm
Handlebar
Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
Grips
Marin Grizzly Lock On
Headset
FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
Seat
Saddle
Marin Speed Concept
Seatpost
X-Fusion Manic, 1x Composite Remote, Size S 150mm Travel, Size M-XL 170mm Travel, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.397 mm | 1.345 mm | 1.366 mm | 1.314 mm | 1.246 mm |
| Bottom Bracket Height | 339 mm | 339 mm | 343 mm | 343 mm | 343 mm |
| Front Center | 737 mm | 759 mm | 777 mm | 807 mm | 838 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 114 mm | 114 mm | 125 mm | 125 mm | 125 mm |
| Stack | 600.7 mm | 605.2 mm | 628.2 mm | 637.3 mm | 641.8 mm |
| Reach | 430 mm | 450 mm | 460 mm | 485 mm | 515 mm |
| Top Tube Length | 568.7 mm | 589.7 mm | 605 mm | 632.1 mm | 663.2 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 390 mm | 400 mm | 400 mm | 425 mm | 430 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 120 mm | 125 mm | 115 mm | 125 mm | 130 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1164 mm | 1186 mm | 1205 mm | 1234 mm | 1266 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm |
| Standover Height | 677 mm | 687 mm | 691 mm | 701 mm | 700 |
| Wheels | 27" | 27" | 29" | 29" | 29" |
| Rider Min Height | 162 cm | cm | cm | 177 cm | 185 cm |
| Rider Max Height | 170 cm | cm | cm | 185 cm | 193 cm |
