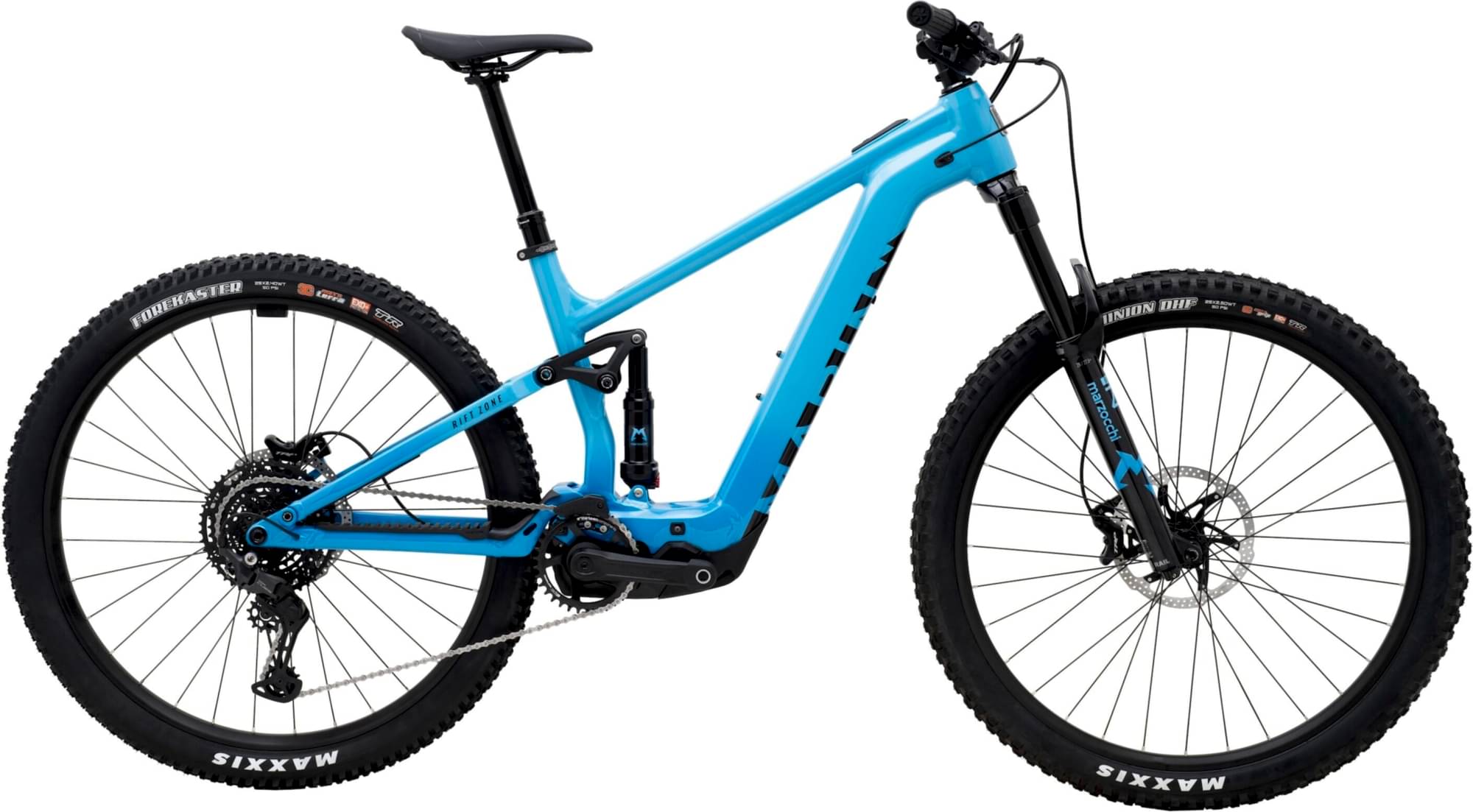

Marin Rift Zone EL1 2025
2025 E-bike
Estimate price |
6,281$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 150mm -
Travel Rear 140mm -
Fork Marzocchi Bomber Z1
-
Groupset CUES -
Suspension Full -
Motor Bosch 600W 55Nm mid-drive -
Battery Bosch 400 Wh Internal (Optional PowerMore 250 wh external battery using PowerMore 150mm cable EB12.120.036) -
Drivetrain 1 × 10 -
Brakes TRP Slate EVO Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 169cm
MD
166cm - 179cm
LG
176cm - 189cm
XL
187cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
All New Series 4 Alloy Lightweight E, 140mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle
Suspension Fork
Marzocchi Bomber Z1 150mm Travel, 29, 110x15 Kabolt Thru Axle, 44mm Offset
Drivetrain
Rear Derailleur
Shimano CUES RD-U6000 GS, 10-Speed
Front Derailleur
-
Shift Levers
Shimano CUES SL-U6000-10R, 10-Speed
Cassette
Shimano CS-LG300-10, 11-48T
Crank
e*thirteen e*spec Plus, 160mm Length, 34T
Chain
Shimano LG500
Pedals
Marin MTB Plastic
Wheels
Front Hub
Shimano HB-TC500, 110x10 Thru Axle, 32H, Centerlock
Rear Hub
Shimano FHTC500, 148x12 Thru Axle, Microspline, 32H, Centerlock
Rims
Marin Aluminum Double Wall, 29" Diameter, 32mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible
Spokes
14g Black Stainless Steel
Tires
Front: Maxxis Minion DHF, 29x2.4" MAXXGRIP, Tubeless ready, EXO+, Rear: Maxxis Forecaster 29x2.4", Tubeless Ready MAXX TERRA EXO+
Brakes
Brakes
TRP Slate EVO, 4-Piston Hydraulic Disc, Resin Pads, 203mm Rotor
Brake Levers
TRP Slate EVO Hydraulic Lever, I-Spec EV Compatible
Cockpit
Stem
Marin 3D Forged Alloy, 35mm
Handlebar
Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
Grips
Marin Grizzly Lock On
Headset
FSA Custom, Adjustable HTA Design
Seat
Saddle
Marin Speed Concept
Seatpost
TranzX, YSI34 QL, Plastic 1x Remote, Size S 150mm Travel, Size M and L 170mm Travel, Size XL 200mm Travel, 34.9mm
Motor & Battery
Motor
Bosch Performance Line SX, 600W, 55Nm torque, 20MPH (32KM/h) Top Assisted Speed
Battery
Bosch 400 Wh Internal (Optional PowerMore 250 wh external battery using PowerMore 150mm cable EB12.120.036)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.439 mm | 1.375 mm | 1.309 mm | 1.242 mm |
| Bottom Bracket Height | 342 mm | 342 mm | 342 mm | 342 mm |
| Front Center | 751 mm | 787 mm | 822 mm | 854 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 126 mm | 126 mm | 126 mm | 126 mm |
| Stack | 618.74 mm | 632.33 mm | 641.4 mm | 645.93 mm |
| Reach | 430 mm | 460 mm | 490 mm | 520 mm |
| Top Tube Length | 572.85 mm | 605.99 mm | 638.08 mm | 669.12 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 400 mm | 420 mm | 430 mm | 460 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 100 mm | 115 mm | 125 mm | 130 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1188 mm | 1225 mm | 1259 mm | 1291 mm |
| Bottom Bracket Drop | 36 mm | 36 mm | 36 mm | 36 mm |
| Standover Height | 674 mm | 687 mm | 691 mm | 699 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 160 cm | 166 cm | 176 cm | 187 cm |
| Rider Max Height | 169 cm | 179 cm | 189 cm | 193 cm |
