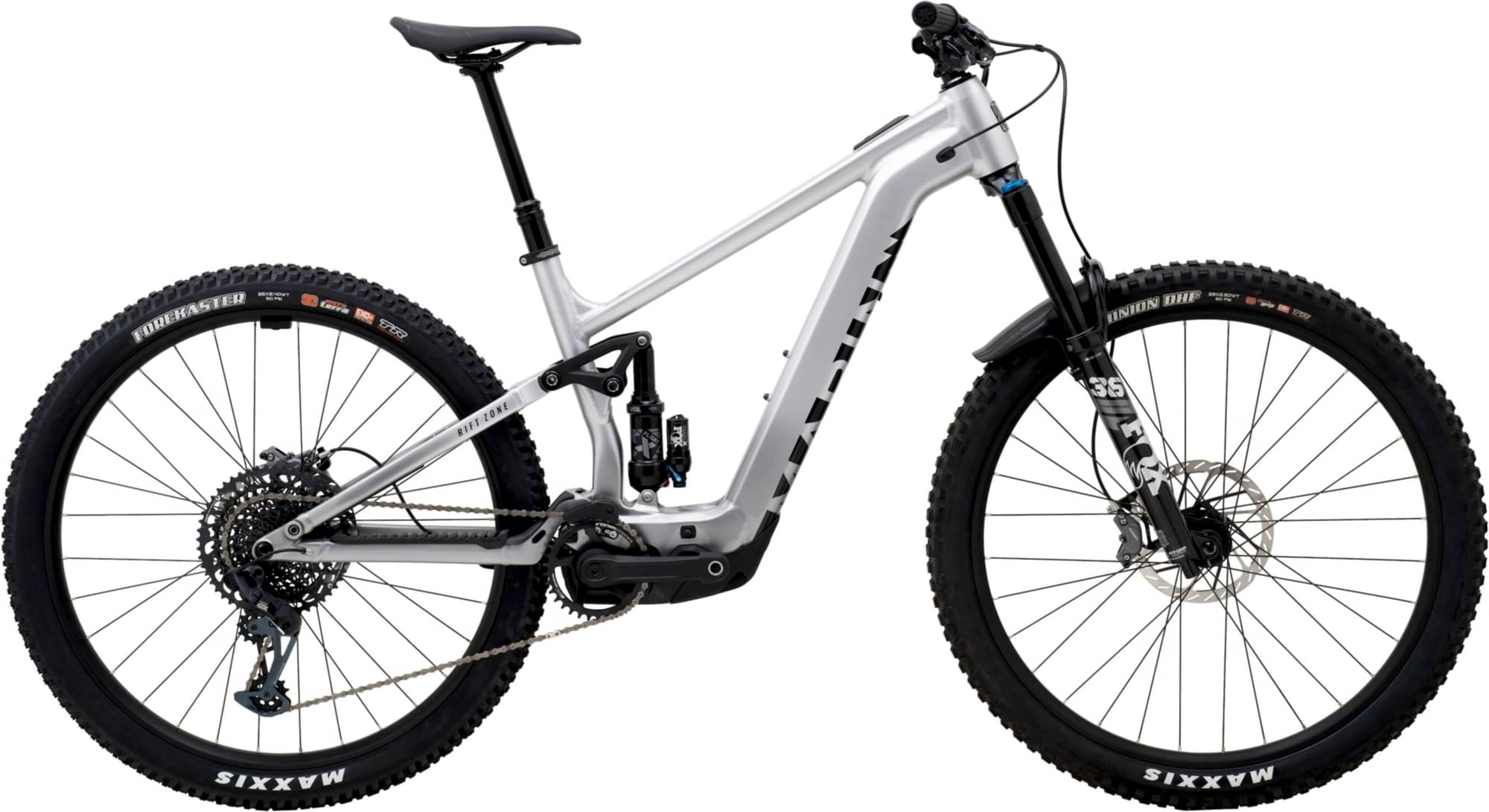

Marin Rift Zone EL2 2025
2025 E-bike
Estimate price |
7,561$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 150mm -
Travel Rear 140mm -
Fork Fox Performance Float 36
-
Groupset GX Eagle -
Suspension Full -
Motor Bosch 600W 55Nm mid-drive -
Battery Bosch 400 Wh Internal (Optional PowerMore 250 wh external battery using PowerMore 150mm cable EB12.120.036) -
Drivetrain 1 × 12 -
Brakes SRAM Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 169cm
MD
166cm - 179cm
LG
176cm - 189cm
XL
187cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
All New Series 4 Alloy Lightweight E Frame, 140mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle
Suspension Fork
Fox 36 Performance, 150mm Travel, 29", 110x15 Kabolt, 44mm Offset
Drivetrain
Rear Derailleur
SRAM GX Eagle Lunar
Front Derailleur
-
Shift Levers
SRAM GX Eagle Lunar MMX Mount
Cassette
SRAM XG 1275 Eagle Cassette 10-52T
Crank
e*thirteen e*spec Plus, 160mm Length, 34T
Chain
SRAM NX Eagle
Pedals
Marin MTB Plastic
Wheels
Front Hub
Formula DCL-3482, 4 Sealed Bearings, 148x12, XD Driver, 6-Bolt, 32H
Rear Hub
Formula DC-711, 110x15, 6-Bolt, 32H
Rims
Marin Aluminum Double Wall, 29" Diameter, 32mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible
Spokes
14g Black Stainless Steel
Tires
Front: Maxxis Minion DHF, 29x2.4" MAXXGRIP, Tubeless ready, EXO+, Rear: Maxxis Forecaster 29x2.4", Tubeless Ready MAXX TERRA EXO+
Brakes
Brakes
SRAM Code Bronze, 4-Piston Hydraulic Disc, 200mm HS2 Rotor
Brake Levers
SRAM Code Bronze Stealth
Cockpit
Stem
Marin CNC, 35mm Length, 35mm Bar Bore
Handlebar
Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back
Grips
Marin Grizzly Lock On
Headset
FSA Custom, Adjustable HTA Design
Seat
Saddle
Marin Speed Concept
Seatpost
TranzX, YSP39 1x Remote, 34.9 Seatpost Diameter, Travel S = 150mm, M/L = 170mm, XL = 200mm
Motor & Battery
Motor
Bosch Performance Line SX, 600W, 55Nm torque, 20MPH (32km/h) Top Assisted Speed
Battery
Bosch 400 Wh Internal (Optional PowerMore 250 wh external battery using PowerMore 150mm cable EB12.120.036)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.439 mm | 1.375 mm | 1.309 mm | 1.242 mm |
| Bottom Bracket Height | 342 mm | 342 mm | 342 mm | 342 mm |
| Front Center | 751 mm | 787 mm | 822 mm | 854 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 126 mm | 126 mm | 126 mm | 126 mm |
| Stack | 618.74 mm | 632.33 mm | 641.4 mm | 645.93 mm |
| Reach | 430 mm | 460 mm | 490 mm | 520 mm |
| Top Tube Length | 572.85 mm | 605.99 mm | 638.08 mm | 669.12 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 400 mm | 420 mm | 430 mm | 460 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 100 mm | 115 mm | 125 mm | 130 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1188 mm | 1225 mm | 1259 mm | 1291 mm |
| Bottom Bracket Drop | 36 mm | 36 mm | 36 mm | 36 mm |
| Standover Height | 674 mm | 687 mm | 691 mm | 699 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 160 cm | 166 cm | 176 cm | 187 cm |
| Rider Max Height | 169 cm | 179 cm | 189 cm | 193 cm |
