Bike details
Overview
Key information split into simple groups.

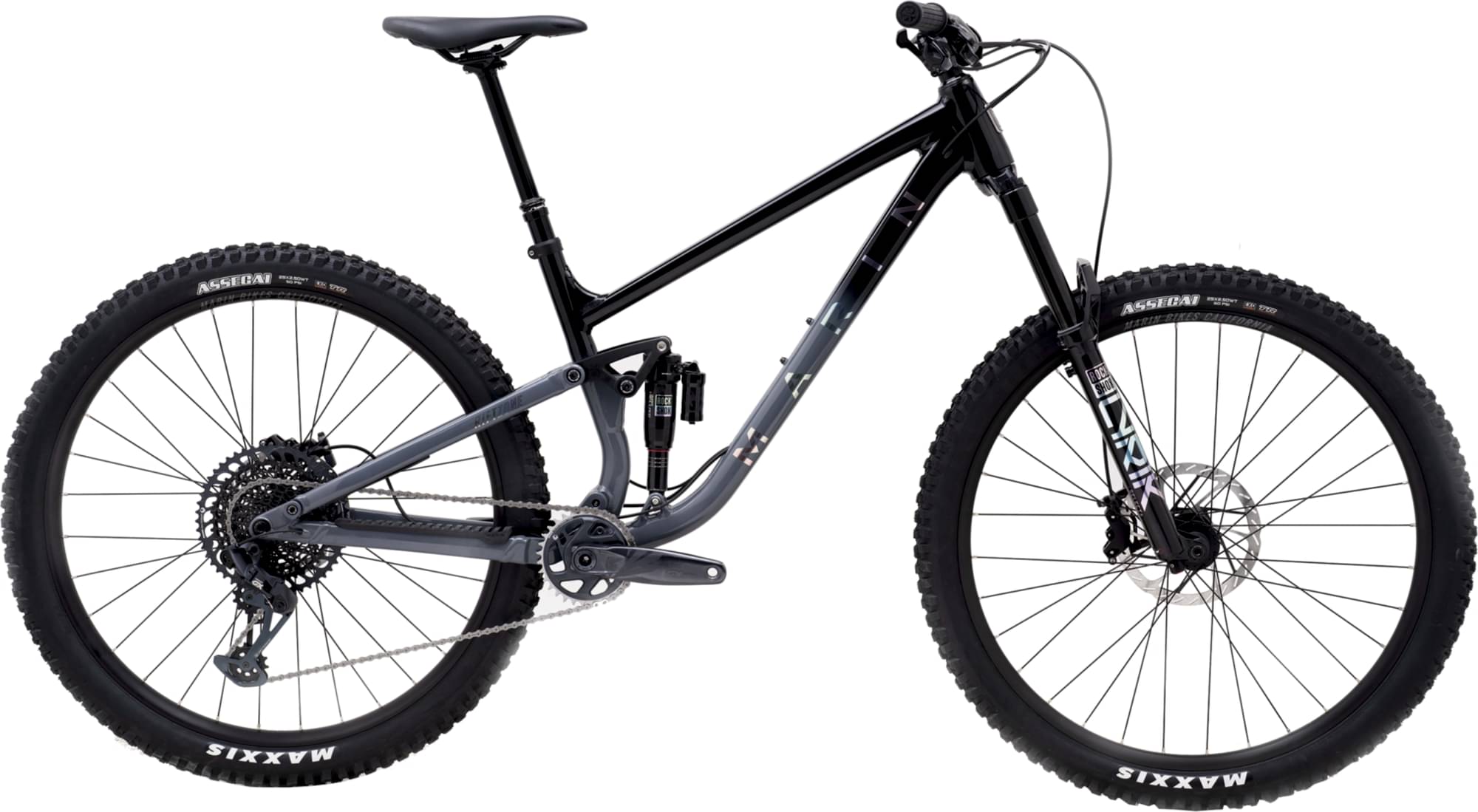

Bike summary
-
-
Frame Aluminum -
Travel Front 150mm -
Travel Rear 130mm -
Fork RockShox Lyrik Select+
-
Groupset GX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
162cm - 170cm
LG
177cm - 185cm
XL
185cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Series 3 6061 Aluminum, 29” Wheels, 130mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs
Suspension Fork
RockShox Lyrik Select+, 150mm Travel, 29" wheels, 110x15 Maxle Stealth, 42mm Offset
Drivetrain
Rear Derailleur
SRAM GX Eagle Lunar
Front Derailleur
-
Shift Levers
SRAM GX Eagle Lunar MMX Mount
Cassette
SRAM XG 1275 Eagle Cassette 10-52T
Crank
SRAM GX Eagle, 32T, 55MM CL, 170MM Length
Bottom Bracket
SRAM DUB MTB 73
Chain
SRAM NX Eagle
Pedals
-
Wheels
Front Hub
Formula, DC-711, 110x15mm, 6-Bolt Disc, 32h
Rear Hub
Formula, DCL-3482, 148x12, 4 Sealed Bearings, 6-Bolt Disc, XD Driver, 32H
Rims
Marin Aluminum Double Wall, 29mm Inner, Sleeved Joint, Disc Specific, 32H, Tubeless Compatible
Spokes
14g Black Stainless Steel
Tires
Maxxis Assegai, 29x2.5", MAXX TERAA, EXO, Tubeless Compatible
Brakes
Brakes
SRAM DB8 4-Piston Hydraulic Disc, HSC 200mm Rotor
Brake Levers
SRAM DB8 Hydraulic
Cockpit
Stem
Marin CNC, 35mm Length, 35mm Bar Bore
Handlebar
Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back
Grips
Marin Grizzly Lock-On
Headset
FSA No 57, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
Seat
Saddle
Marin Speed Concept
Seatpost
TranzX, YSP23JL, 1x Remote, Size S 150mm Travel, Size M and L 170mm Travel, Size XL 200mm Travel, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.371 mm | 1.397 mm | 1.366 mm | 1.314 mm | 1.246 mm |
| Bottom Bracket Height | 344 mm | 344 mm | 348 mm | 348 mm | 348 mm |
| Front Center | 720 mm | 737 mm | 777 mm | 807 mm | 838 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 109 mm | 121 mm | 133 mm | 133 mm | 133 mm |
| Stack | 569.1 mm | 600.7 mm | 628.2 mm | 637.3 mm | 641.8 mm |
| Reach | 415 mm | 430 mm | 460 mm | 485 mm | 515 mm |
| Top Tube Length | 550.6 mm | 568.7 mm | 605 mm | 632.1 mm | 663.2 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 330 mm | 390 mm | 400 mm | 425 mm | 430 mm |
| Head Tube Angle | 65.1 ° | 65.1 ° | 65.1 ° | 65.1 ° | 65.1 ° |
| Head Tube Length | 115 mm | 120 mm | 115 mm | 125 mm | 130 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1147 mm | 1164 mm | 1205 mm | 1234 mm | 1266 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm |
| Standover Height | 661 mm | 677 mm | 691 mm | 701 mm | 700 |
| Wheels | 27" | 27" | 29" | 29" | 29" |
| Rider Min Height | 162 cm | cm | cm | 177 cm | 185 cm |
| Rider Max Height | 170 cm | cm | cm | 185 cm | 193 cm |
