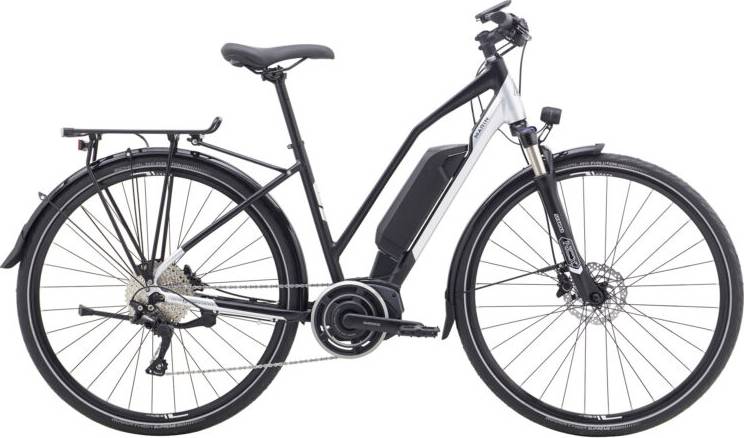

Marin San Anselmo DS E 2020
2020 E-bike
Estimate price |
2,999$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour
-
Groupset Deore, Shimano -
Suspension Hardtail -
Motor Shimano 250W 50Nm mid-drive -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
157cm - 167cm
MD
164cm - 177cm
LG
174cm - 185cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Series 3 E 6061 Aluminum, 700C wheels, Post Mount Disc Specific Forged Dropouts, Fender, Rack and Integrated Kickstand Mounts
Suspension Fork
SR Suntour NCXE LOR, Remote Hydraulic Lockout, Adjustable Damping, 63mm Travel
Drivetrain
Rear Derailleur
Shimano Deore 10-Speed
Shift Levers
Shimano Deore
Cassette
Sunrace 10-Speed 11-42t
Crank
Shimano STEPS E6000
Bottom Bracket
STEPS, press-fit
Chain
Shimano Deore
Pedals
Dual Sport Platform
Wheels
Front Hub
Forged Aluminum Alloy, 6-Bolt Disc, 32H
Rear Hub
Forged Aluminum Alloy, 6-Bolt Disc, 32H
Rims
Marin Aluminum Double Wall, Disc Specific
Spokes
14g Black Stainless Steel
Tires
Continental, E-Contact, 700Cx42, Reflective Sidewall, Puncture Protection
Brakes
Brakes
Shimano BR-M365 Hydraulic Disc, 160mm Rotor
Brake Levers
Shimano Hydraulic
Cockpit
Stem
Marin 3D Forged Alloy
Handlebar
Marin Flat Top Riser
Grips
Marin Locking Ergonomic
Headset
FSA Orbit CE No. 8D
Seat
Saddle
Marin City + Sport Plush
Seatpost
Marin Alloy
Motor & Battery
Motor
Shimano STEPS E6000, 44T Chainring
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.72 mm | 1.72 mm | 1.75 mm |
| Bottom Bracket Height | 295 mm | 295 mm | 295 mm |
| Front Center | 641 mm | 648 mm | 659 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 84 mm | 80 mm | 80 mm |
| Stack | 633 mm | 645 mm | 664 mm |
| Reach | 367 mm | 376 mm | 380 mm |
| Top Tube Length | 563 mm | 576 mm | 585 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 460 mm | 500 mm | 540 mm |
| Head Tube Angle | 69.5 ° | 70 ° | 70 ° |
| Head Tube Length | 160 mm | 170 mm | 190 mm |
| Chainstay Length | 472 mm | 472 mm | 472 mm |
| Wheelbase | 1105 mm | 1112 mm | 1123 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Standover Height | 526 mm | 523 mm | 537 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 164 cm | 174 cm |
| Rider Max Height | 167 cm | 177 cm | 185 cm |
Model Overview
San Anselmo DS E belongs to the Marin E San Anselmo model. Marin released 5 e-bikes variations of this model so far.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Commuter e-bikes
According to our calculations, the average cost of a Commuter e-bike that is reliable is 2569$. However, even if your budget is less than the average, you might still be able to get a top-quality Commuter e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
At the moment of the release date, Marin San Anselmo DS E price was 2999$. If we compare this with the average Commuter e-bike cost we notice that the price is 16.74% more expensive.
Overview of components
Fork
Marin San Anselmo DS E 2020 e-bike is equipped with the SunTour fork, and has 63mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
The wheels on San Anselmo DS E are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The San Anselmo DS E comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Marin San Anselmo DS E e-bike has 3 sizes, in the range of 157 cm – 185 cm (5.15 ft – 6.07 ft). In short, you can easily find one that suits you.
