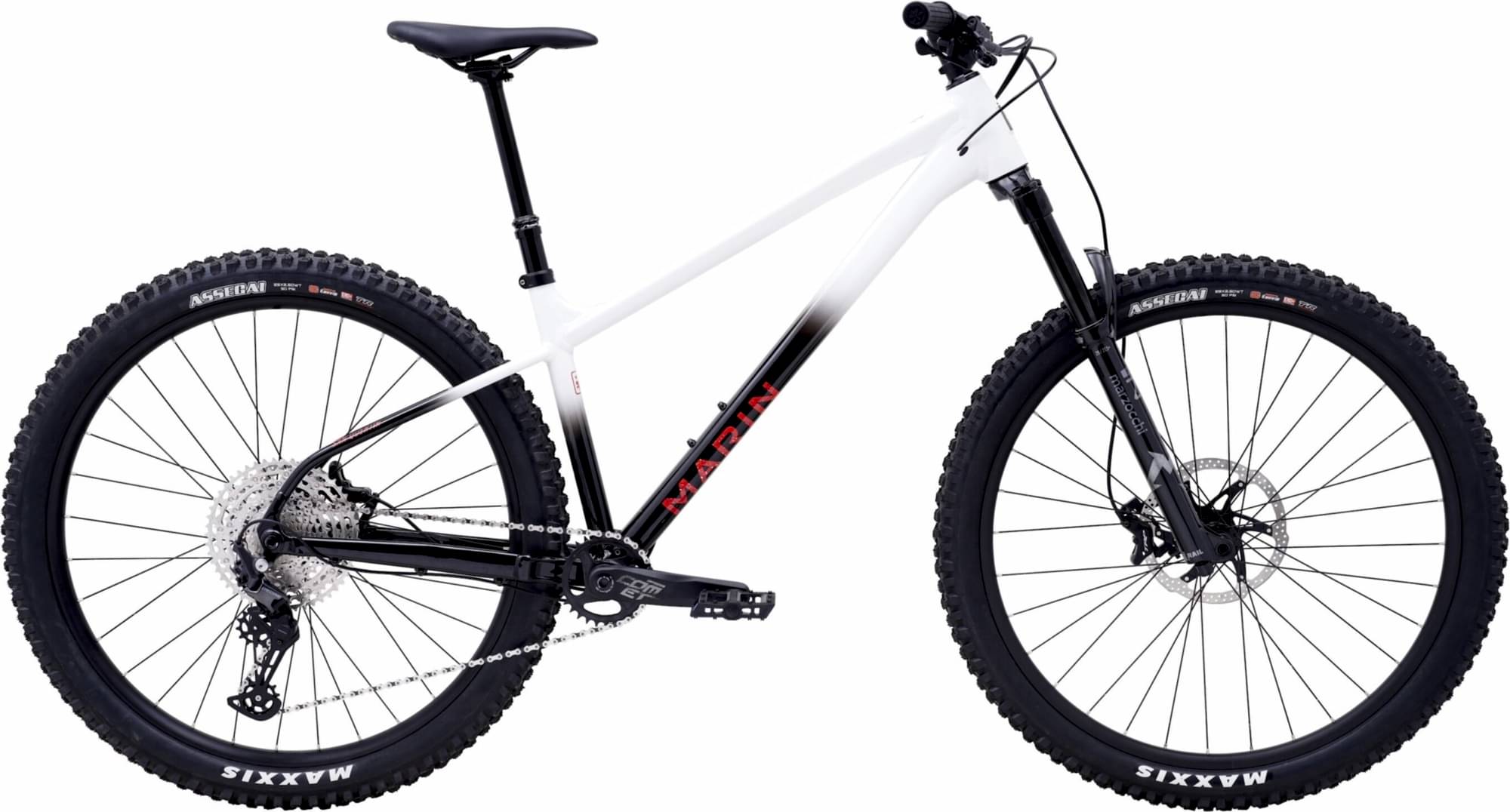

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 140mm -
Fork Marzocchi Bomber Z2
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes TRP Slate EVO Hydraulic Disc
Sizing
Recommended size guide.
SM
157cm - 167cm
MD
164cm - 174cm
LG
171cm - 182cm
XL
179cm - 188cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Series 3 6061 Aluminum, Double Butted, Internal Cable Routing, 12x148mm Thru-Axle, 73mm Threaded BB
Suspension Fork
Marzocchi Bomber Z2, 110x15mm Boost Spacing, 140mm Travel, Kabolt Axle, 44mm Offset
Drivetrain
Rear Derailleur
Shimano Deore, 12-Speed, SGS
Front Derailleur
-
Shift Levers
Shimano Deore, 12-Speed, SL-6100IR
Cassette
SunRace, 12-Speed, MicroSpline, 10-51T
Crank
FSA Comet, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Boost Spacing
Bottom Bracket
FSA MegaExo 73mm BSA
Chain
KMC X-12 Silver and Black
Pedals
Marin Nylon Flat
Wheels
Front Hub
Shimano HF-MT410B, 110x15mm, 32H
Rear Hub
Shimano HB-MT410B, 148x12mm, 32H, MicroSpline Freehub Body
Rims
Marin Aluminum Double Wall, Disc Specific, 29mm Inner, Sleeved Joint, 32H, Tubeless Compatible
Spokes
14g Black Stainless Steel
Tires
Maxxis Assegai, 29 x 2.5" MAXX TERRA, EXO Casing, Tubeless Compatible
Brakes
Brakes
TRP Slate EVO, 4-Piston Hydraulic, Resin Pads, 203mm Rotor
Brake Levers
TRP Slate EVO, I-Spec EV Compatible
Cockpit
Stem
Marin 3D Forged Alloy, 35mm
Handlebar
Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
Grips
Marin Grizzly Lock On
Headset
FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
Seat
Saddle
Marin Speed Concept
Seatpost
TranzX, YSP23JL, 1x Remote, Size S 125mm Travel, Size M 150mm Travel, Size L-XL 170mm Travel, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.498 mm | 1.413 mm | 1.372 mm | 1.3 mm |
| Bottom Bracket Height | 327 mm | 327 mm | 327 mm | 327 mm |
| Front Center | 762 mm | 792 mm | 810 mm | 842 mm |
| Rake | 37 mm | 37 mm | 44 mm | 44 mm |
| Trail | 128 mm | 128 mm | 134 mm | 135 mm |
| Stack | 632 mm | 636 mm | 645 mm | 650 |
| Reach | 422 mm | 450 mm | 470 mm | 500 mm |
| Top Tube Length | 568 mm | 596 mm | 619 mm | 650 |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 330 mm | 380 mm | 410 mm | 420 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 115 mm | 120 mm | 125 mm | 130 mm |
| Chainstay Length | 425 mm | 425 mm | 430 mm | 430 mm |
| Wheelbase | 1182 mm | 1212 mm | 1236 mm | 1268 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm | 50 mm |
| Standover Height | 650 | 683 mm | 688 mm | 695 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 157 cm | 164 cm | 171 cm | 179 cm |
| Rider Max Height | 167 cm | 174 cm | 182 cm | 188 cm |
