Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Tourney, Shimano -
Suspension Hardtail -
Drivetrain 2 × 7 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
149cm - 157cm
SM
160cm - 169cm
MD
166cm - 179cm
LG
176cm - 189cm
XL
187cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Series 2 Dual Sport, 6061 Aluminum, 700C Wheels, Disc Brake
Suspension Fork
SR/Suntour NEX, 63mm Travel, Preload Adjustment
Drivetrain
Rear Derailleur
Shimano Tourney, 7-Speed
Front Derailleur
Shimano TY710
Shift Levers
Shimano EF500 Shifter/Brake Lever Combo, 2x7-Speed
Cassette
SunRace 7-Speed, 11-34T
Crank
Forged Alloy Crank, 46/30T, Ring Guard
Bottom Bracket
Sealed Cartridge Bearings, Square Taper
Chain
KMC Z8
Pedals
Dual Sport Platform
Wheels
Front Hub
Forged Aluminum Alloy, 32H
Rear Hub
Forged Aluminum Alloy, 32H
Rims
Marin Aluminum Double Wall
Tires
Kenda Kahn, 700Cx40mm
Brakes
Brakes
Mechanical Disc
Brake Levers
Shimano w/ Integrated Shifters
Cockpit
Stem
Marin Alloy, 31.8mm Clamp
Handlebar
Marin Alloy Riser
Grips
Dual Density Ergonomic
Headset
FSA No.10-P
Seat
Saddle
Marin Fitness Plush
Seatpost
Marin Alloy, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.59 mm | 1.58 mm | 1.56 mm | 1.58 mm |
| Bottom Bracket Height | 291 mm | 291 mm | 291 mm | 291 mm | 291 mm |
| Front Center | 616 mm | 615 mm | 625 mm | 645 mm | 657 mm |
| Rake | 41 mm | 41 mm | 41 mm | 41 mm | 41 mm |
| Trail | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm |
| Stack | 586.99 mm | 596.41 mm | 605.85 mm | 619.99 mm | 638.84 mm |
| Reach | 380.43 mm | 375.94 mm | 382.26 mm | 398.04 mm | 403.28 mm |
| Top Tube Length | 554.9 mm | 558.9 mm | 568.1 mm | 588.2 mm | 599.2 mm |
| Seat Tube Angle | 73.5 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 381 mm | 431.8 mm | 482.6 mm | 520.7 mm | 558.8 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 135 mm | 155 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1052 mm | 1051 mm | 1060 mm | 1081 mm | 1093 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 658 mm | 704 mm | 747 mm | 779 mm | 813 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 149 cm | 160 cm | 166 cm | 176 cm | 187 cm |
| Rider Max Height | 157 cm | 169 cm | 179 cm | 189 cm | 193 cm |
Model Overview

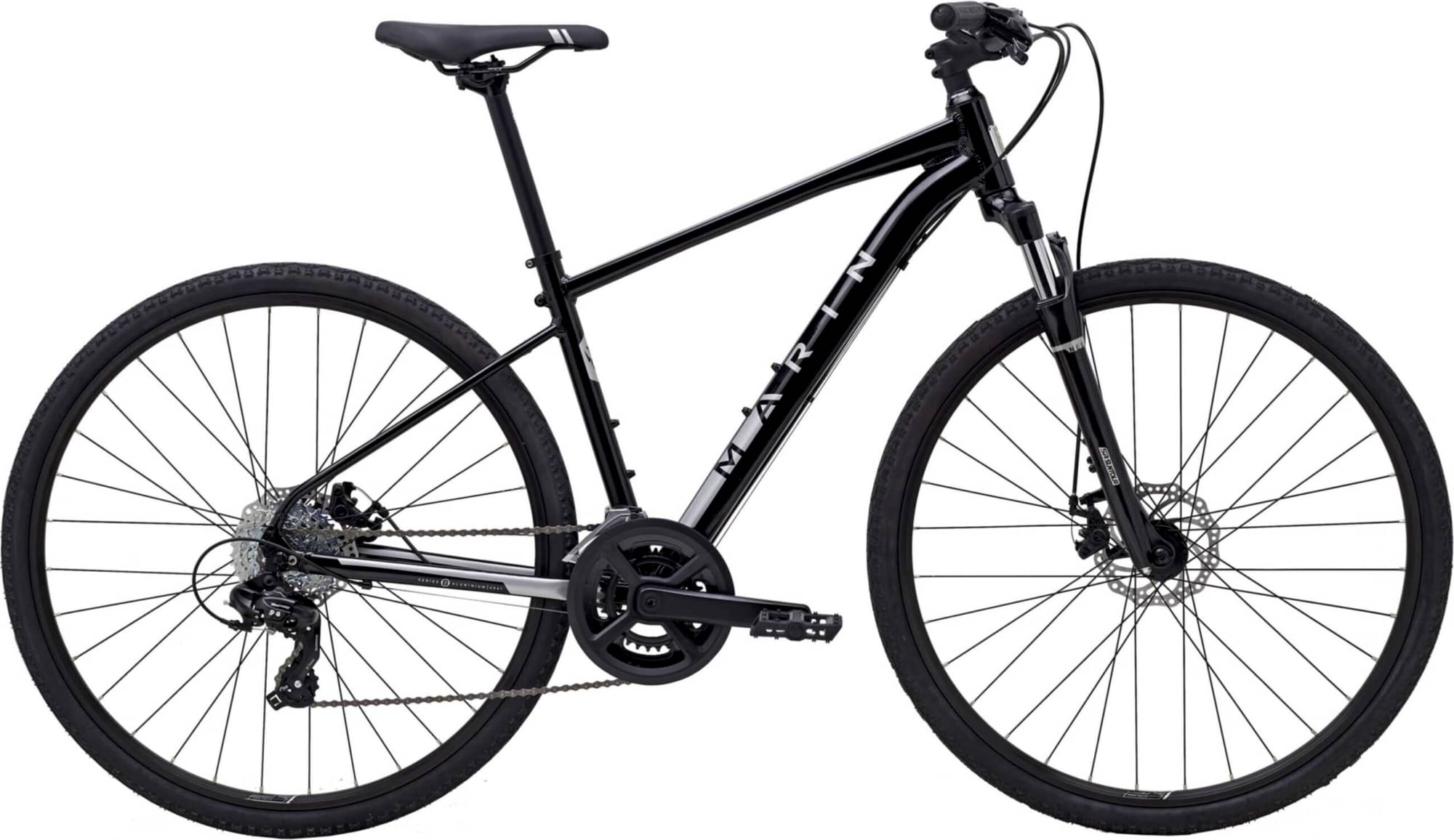

San Rafael DS1 is part of the Marin San Rafael model. Marin launched 29 bikes of this model so far.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Commuter bikes
Our math shows that the average cost of a dependable Commuter bike is 762$. However, even though the average price of a Commuter bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 599$. If we compare this with the average Commuter bike cost we notice that the price is 27.21% smaller.
San Rafael DS1 components
Fork
The Suntour NEX is included from the factory. It has a travel distance of 63mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
The wheels on San Rafael DS1 are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Marin San Rafael DS1 has Mechanical Disc brakes installed. They are much easier to maintain than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
Sizes
Marin San Rafael DS1 bike has 5 sizes, in the range of 149 cm – 193 cm (4.89 ft – 6.33 ft). In short, it won’t be difficult to find the right one for you.
