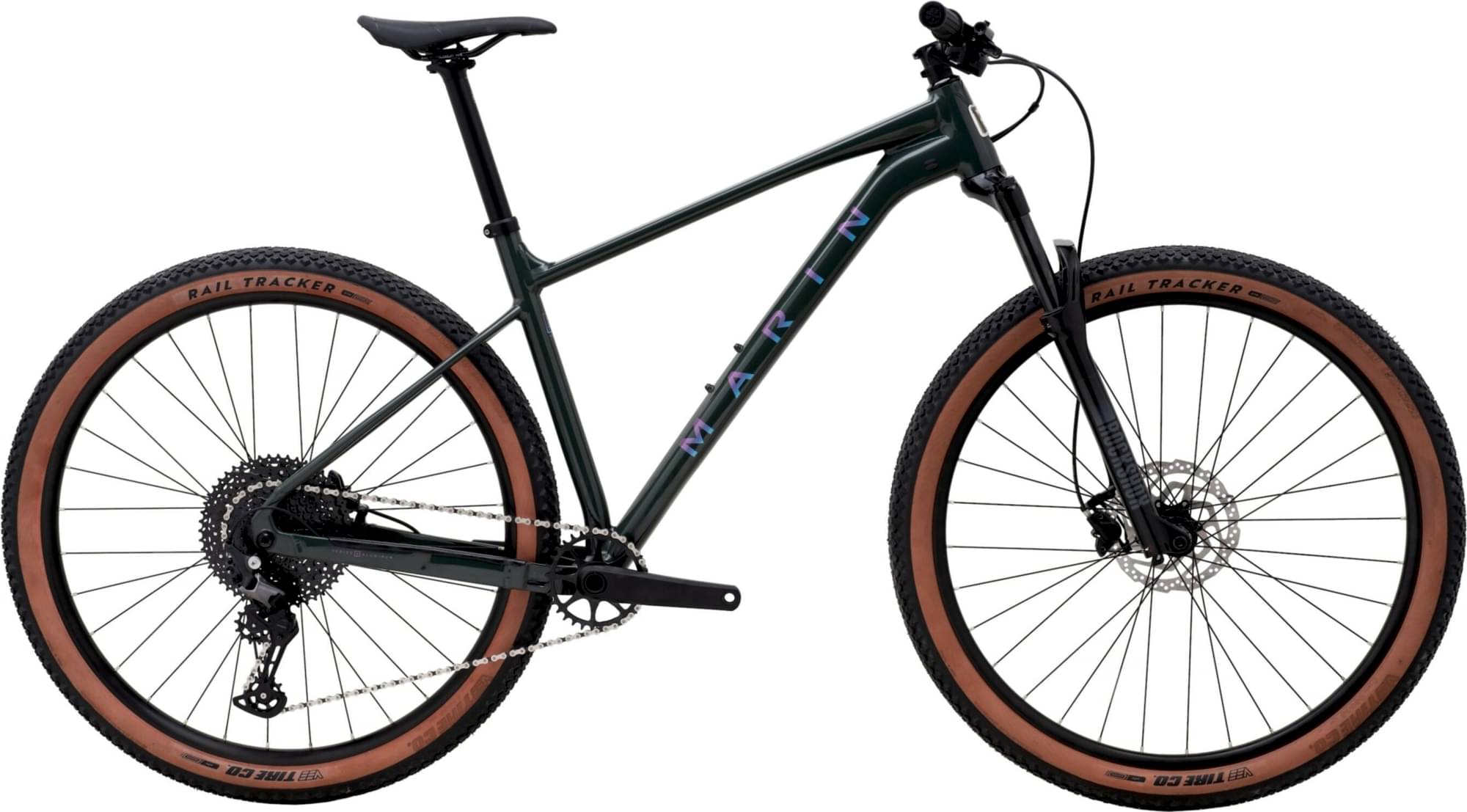

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 120mm -
Fork RockShox Judy Silver TK
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
All New Series 4 6061 Aluminum, 29" Wheels, Superlight Aluminum, Post-Mount Rear Brake, Internal Shifter and Dropper Post Routing, 148x12mm Boost Thru-Axle
Suspension Fork
RockShox Judy Silver TK, 120mm Travel, Alloy Tapered Steerer, Solo Air Spring, 110x15mm Boost Spacing, Maxle Stealth, 51mm Offset
Drivetrain
Rear Derailleur
Shimano Deore, RDM6100, 12-Speed
Front Derailleur
-
Shift Levers
Shimano Deore, SLM6100, 12-Speed
Cassette
SunRace, 12-Speed, 11-51T
Crank
Forged Alloy 1x12, Hollow Spindle, Steel Narrow Wide 32T Chainring
Bottom Bracket
External Sealed Cartridge Bearings
Chain
KMC X12
Pedals
Nylon Platform
Wheels
Front Hub
Forged Aluminum, 110x15mm, Disc, 32H
Rear Hub
Forged Aluminum, 148x12mm, Disc Specific, 32H
Rims
Marin Aluminum Double Wall, 29mm Inner, Sleeve Joint, Disc Specific, Tubeless Compatible
Spokes
14g Black Stainless Steel
Tires
Vee Tire, Rail Rocco XC, 29x2.3", Dual Control Compound, Folding Bead, Tubeless Ready
Brakes
Brakes
Shimano BR-MT200 Hydraulic Disc, 180mm Rotor
Brake Levers
Shimano BL-MT201
Cockpit
Stem
Marin 3D Forged Alloy, 35mm
Handlebar
Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 4º Up, 9º Back
Grips
Marin Single Clamp Locking
Headset
FSA No 42ACB, 1 1/8" x 1 1/2”
Seat
Saddle
Marin Speed Concept
Seatpost
Marin Alloy, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.502 mm | 1.46 mm | 1.416 mm | 1.332 mm |
| Bottom Bracket Height | 320 mm | 320 mm | 320 mm | 320 mm |
| Front Center | 703 mm | 728 mm | 752 mm | 791 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 115 mm | 115 mm | 115 mm | 115 mm |
| Stack | 616 mm | 628 mm | 637 mm | 646 mm |
| Reach | 410 mm | 430 mm | 450 mm | 485 mm |
| Top Tube Length | 587 mm | 610 mm | 633 mm | 670 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 381 mm | 431 mm | 482 mm | 520 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 97 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1122 mm | 1147 mm | 1171 mm | 1210 mm |
| Bottom Bracket Drop | 58 mm | 58 mm | 58 mm | 58 mm |
| Standover Height | 680 mm | 709 mm | 756 mm | 789 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
