Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 700c -
Groupset 105, Praxis -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
X6 Double-Butted Dirt Tuned Alloy w/ Integrated 1.5" Tapered Headtube, Internal Cable Routing, Flat-Mount Disc Brakes & QR/Ta Convertible Dropout System
Suspension Fork
Dirt Tuned MC7 full carbon fork w/1.5" steerer, 12mm thru-axle, flat mount disc brake, w/ fender mounts
Drivetrain
Rear Derailleur
New Shimano 105 R7000
Front Derailleur
New Shimano 105 R7000
Shift Levers
New Shimano 105 R7000
Cassette
New Shimano 105 R7000 11-32t 11-spd
Crank
Praxis Works Alba M24 46/36t
Bottom Bracket
Praxis Works M24
Chain
KMC X11
Pedals
N/A
Wheels
Rims
Brev M. CX Disc Tubeless Compatible, 23mm Int.
Tires
Kenda Small Block 8 700x35mm
Brakes
Brakes
Tektro Spyre-C Mechanical Disc
Brake Levers
New Shimano 105 R7000
Cockpit
Stem
Brev. M 3D Forged Alloy
Handlebar
Brev. M CX Compact Bend
Headset
Masi by Token 1.5" Tapered
Seat
Saddle
Masi Corsa Comp
Seatpost
Brev. M 3D Forged Alloy, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 49cm | 52cm | 55cm | 57cm | 60cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.45 mm | 1.45 mm | 1.52 mm | 1.55 mm |
| Bottom Bracket Height | 276 mm | 276 mm | 276 mm | 276 mm | 276 mm |
| Front Center | 574 mm | 579 mm | 600 mm | 615 mm | 625 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 72 mm | 65 mm | 64 mm | 64 mm | 64 mm |
| Stack | 537 mm | 550 mm | 569 mm | 602 mm | 621 mm |
| Reach | 368 mm | 379 mm | 393 mm | 397 mm | 401 mm |
| Top Tube Length | 520 mm | 540 mm | 565 mm | 580 mm | 595 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 490 mm | 520 mm | 550 mm | 570 mm | 600 mm |
| Head Tube Angle | 71 ° | 72 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 115 mm | 125 mm | 145 mm | 180 mm | 200 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 994 mm | 1000 mm | 1021 mm | 1036 mm | 1046 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm |
| Standover Height | 758 mm | 777 mm | 805 mm | 827 mm | 852 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
Model Overview

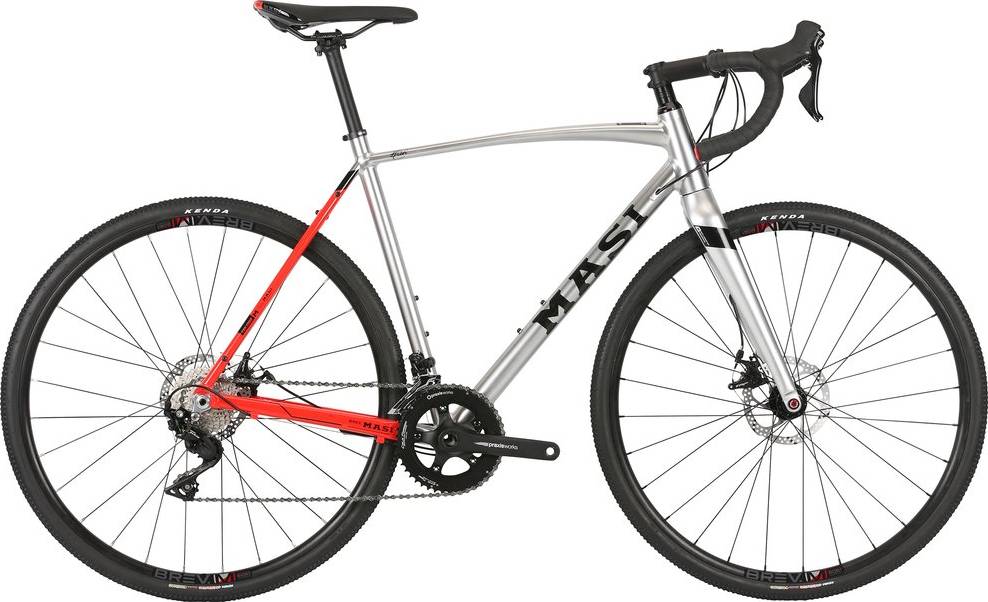

CXR Comp Alloy belongs to the Masi Cxr model. Masi released 6 bikes variations of this model so far.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Cyclocross bikes
According to our calculations, the average cost of a Cyclocross bike that is reliable is 2012$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Cyclocross bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2019 for 1349$. Comparing this to the average Cyclocross bike price, we see that the price is 49.15% smaller.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
CXR Comp Alloy components
Fork material
When it comes to the fork, this bike has a carbon one, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
When leaving the production line, the CXR Comp Alloy model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Mechanical Disc brakes. They are much easier to maintain than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
