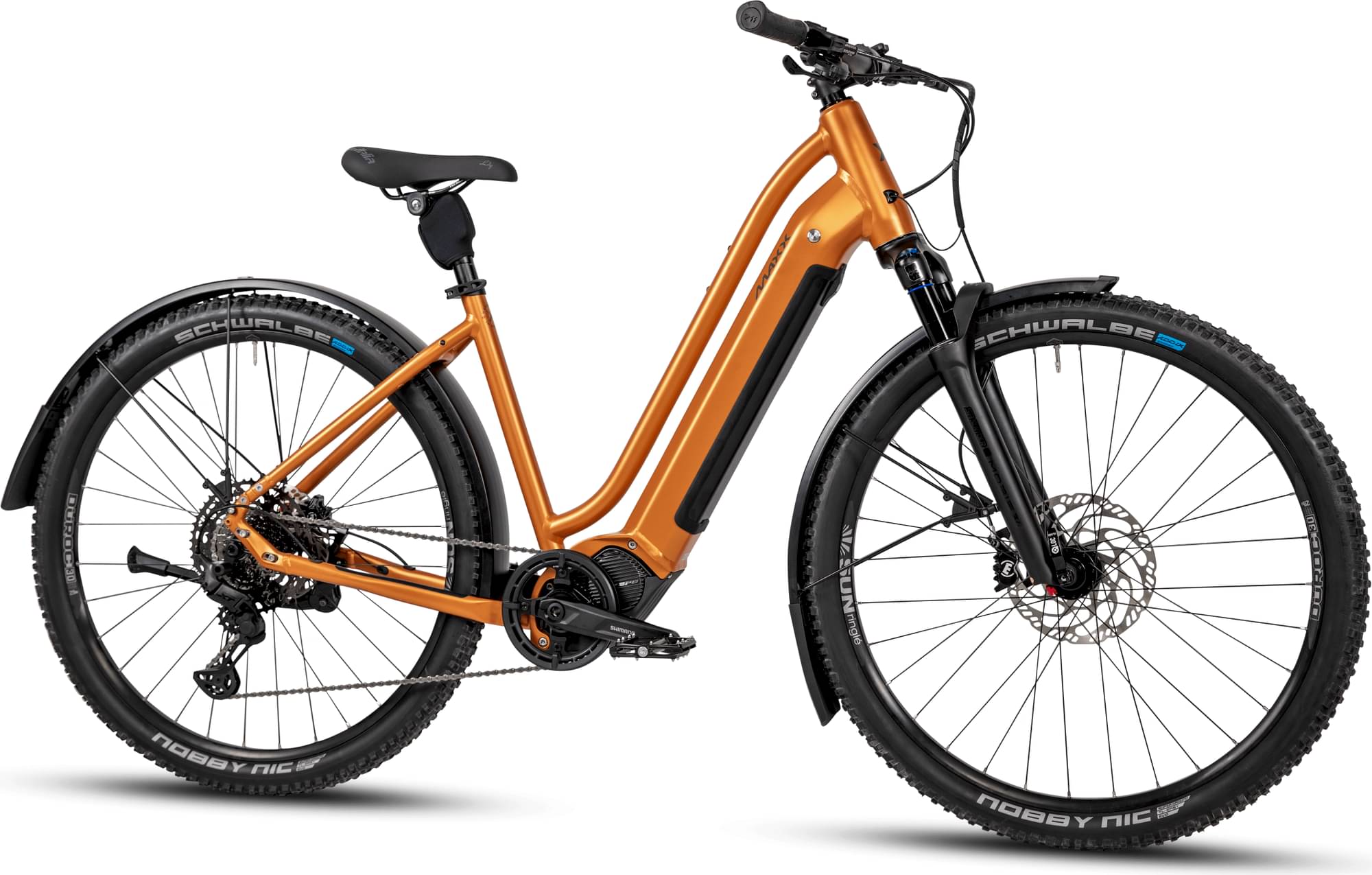

maxx Cross Comfort ELS Sport 2024
2024 E-bike
Estimate price |
5,467$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 80mm -
Fork Suntour MOBIE
-
Groupset XT, Shimano -
Suspension Hardtail -
Motor Shimano 250W 85Nm mid-drive -
Battery 726 Wh, incl. 4A charger -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 167cm
MD
165cm - 176cm
LG
174cm - 189cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum frame with Octatube (8-sided down tube) made of 6061-T6 Alu.
Suspension Fork
Suntour Mobie E 34, 80 mm, TA 15x100 mm, air spring, w/ lockout, black
Drivetrain
Rear Derailleur
Shimano XT RD M8130
Shift Levers
Shimano XT SL M8130
Cassette
Shimano CS LG700 11-50 Z, 1 x 11
Crank
Shimano SMCRME80 34 T,
Chain
Shimano 11-fach CNHG601
Pedals
Flat Pedal CNC, sealing bearings
Wheels
Front Hub
SunRingle SRC, through axle 15/100 mm
Rear Hub
SunRingle SRC Disc 6 H, Through Axle 12/142 mm
Rims
SunRingle Duroc 30, 32 H, SV, black max. 150 kg
Tires
Schwalbe Smart Sam Performance folding; 57-622 Black Refex
Brakes
Brakes
Shimano BR-M6120 4-Kolben- Disc 203/180 mm
Cockpit
Stem
MAXX MTB 0° oder 7°
Handlebar
MAXX Rizer 35 MTB
Headset
Acros AZX-203 R4, semi-integr. Alu-Cartridge, tapered
Seat
Saddle
Selle Italia Man Flow
Seatpost
MAXX Premium
Motor & Battery
Motor
Shimano EP600, 85 Nm, max. support 400%
Battery
726 Wh, incl. 4A charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.71 mm | 1.719 mm | 1.704 mm |
| Bottom Bracket Height | 284 mm | 284 mm | 284 mm |
| Front Center | 811 mm | 827 mm | 847 mm |
| Rake | 201 mm | 201 mm | 201 mm |
| Trail | -76 mm | -76 mm | -76 mm |
| Stack | 665 mm | 684 mm | 702 mm |
| Reach | 389 mm | 398 mm | 412 mm |
| Top Tube Length | 605 mm | 620 mm | 640 mm |
| Seat Tube Angle | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 420 mm | 480 mm | 540 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 180 mm | 200 mm | 220 mm |
| Chainstay Length | 485 mm | 485 mm | 485 mm |
| Wheelbase | 1153 mm | 1170 mm | 1191 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 155 cm | 165 cm | 174 cm |
| Rider Max Height | 167 cm | 176 cm | 189 cm |
