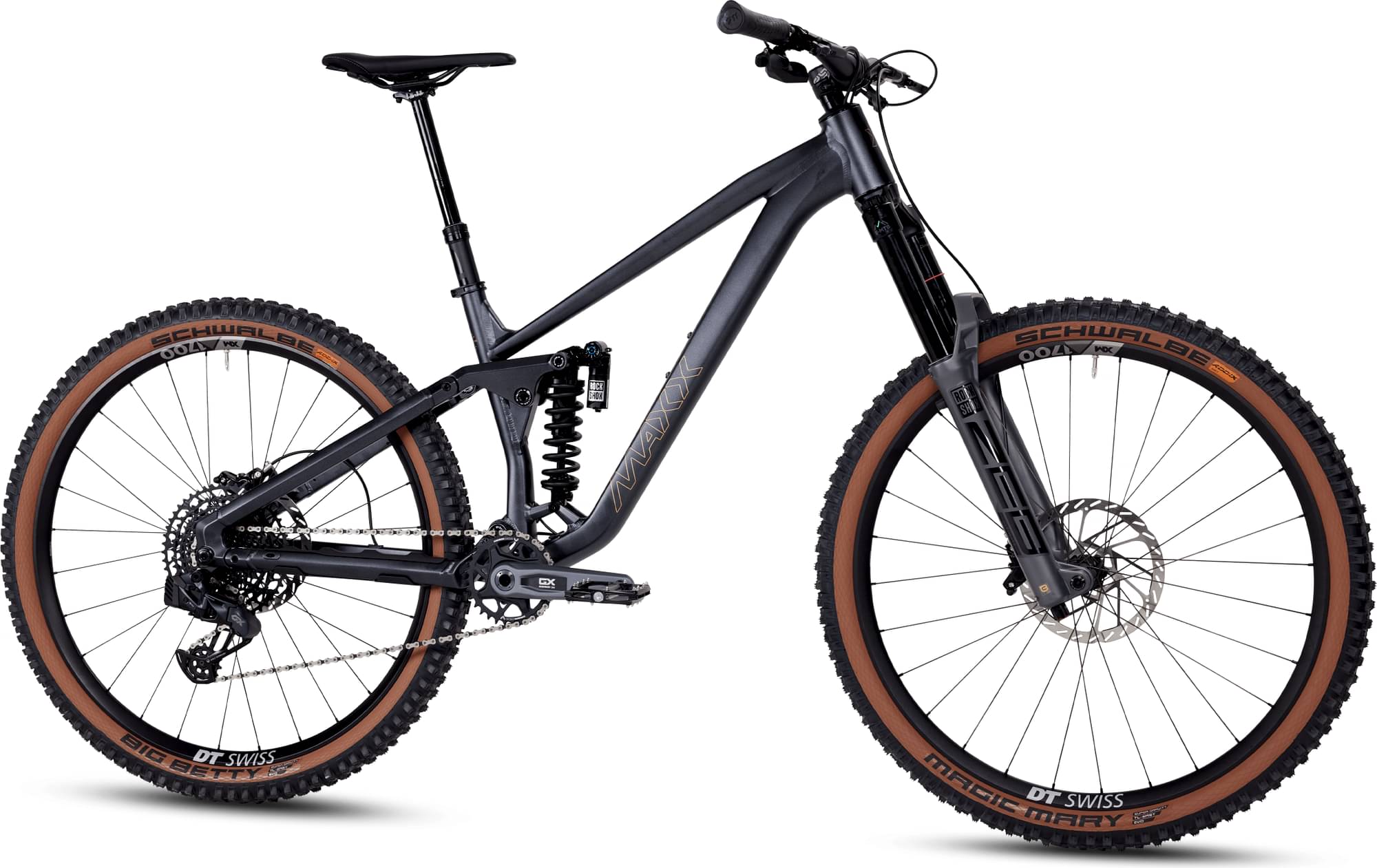

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 170mm -
Fork RockShox ZEB Select
-
Groupset XT, SLX -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Shimano Deore Hydraulic Disc
Sizing
Recommended size guide.
SM
164cm - 174cm
MD
172cm - 181cm
LG
179cm - 188cm
XL
186cm - 196cm
XXL
194cm - 208cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Frame material: aluminum 6061-T6 MAXX Custom tubing, 2-ply powder coated / light, strong and shock resistant - ideal for enduro use.
Suspension Fork
RockShox ZEB Select 170mm, TA 15x110, black
Rear Shock
FOX Float TR 205x65, adjustable platform, air spring
Drivetrain
Rear Derailleur
XT Schaltwerk '20 Shadow Plus. schwarz (1X12-fach)
Shift Levers
SLX Schalthebel 20. rechts. 12-fach Schelle
Cassette
SLX Kassette 12 fach 10-51 Z Micro Spline
Crank
XT Tretkurbeleinheit '20 1X12. 30Z.. Boost 170 mm
Chain
SLX Kette 12-fach CNM7100 126 Glieder
Pedals
MAXX Flat Pedal
Wheels
Front Hub
MICHE 550 Boost, through axle 15/110 mm
Rear Hub
MICHE 550 Boost, Through Axle 12/148 mm
Rims
Newman Performance Strong 30, 29" black (30 mm, 32 L)
Tires
SReifen MTB 29" Schwalbe Hans Dampf 60-622 Perf. TLR
Brakes
Brakes
Shimano BR-M6120 4 piston- Disc 203/180 mm
Cockpit
Stem
e*thirteen Base
Handlebar
e*thirteen Base 800 x 20, 35 mm
Headset
Acros Block-Lock, tapered, w/ 150° steering angle limitation
Seat
Saddle
Selle Italia Man Flow
Seatpost
M-WAVE Levitate In 3 height-adjustable
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.463 mm | 1.409 mm | 1.373 mm | 1.35 mm | 1.315 mm |
| Bottom Bracket Height | 350 mm | 350 mm | 350 mm | 350 mm | 350 mm |
| Front Center | 992 mm | mm | mm | mm | mm |
| Stack | 629 mm | 641 mm | 652 mm | 675 mm | 697 mm |
| Reach | 430 mm | 455 mm | 475 mm | 500 mm | 530 mm |
| Top Tube Length | 575 mm | 603 mm | 625.5 mm | 656 mm | 691 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 380 mm | 420 mm | 460 mm | 500 mm | 540 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 100 mm | 112.5 mm | 125 mm | 150 mm | 175 mm |
| Chainstay Length | 448 mm | 448 mm | 448 mm | 448 mm | 448 mm |
| Wheelbase | 1208 mm | 1238 mm | 1263 mm | 1299 mm | 1340 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 164 cm | 172 cm | 179 cm | 186 cm | 194 cm |
| Rider Max Height | 174 cm | 181 cm | 188 cm | 196 cm | 208 cm |
