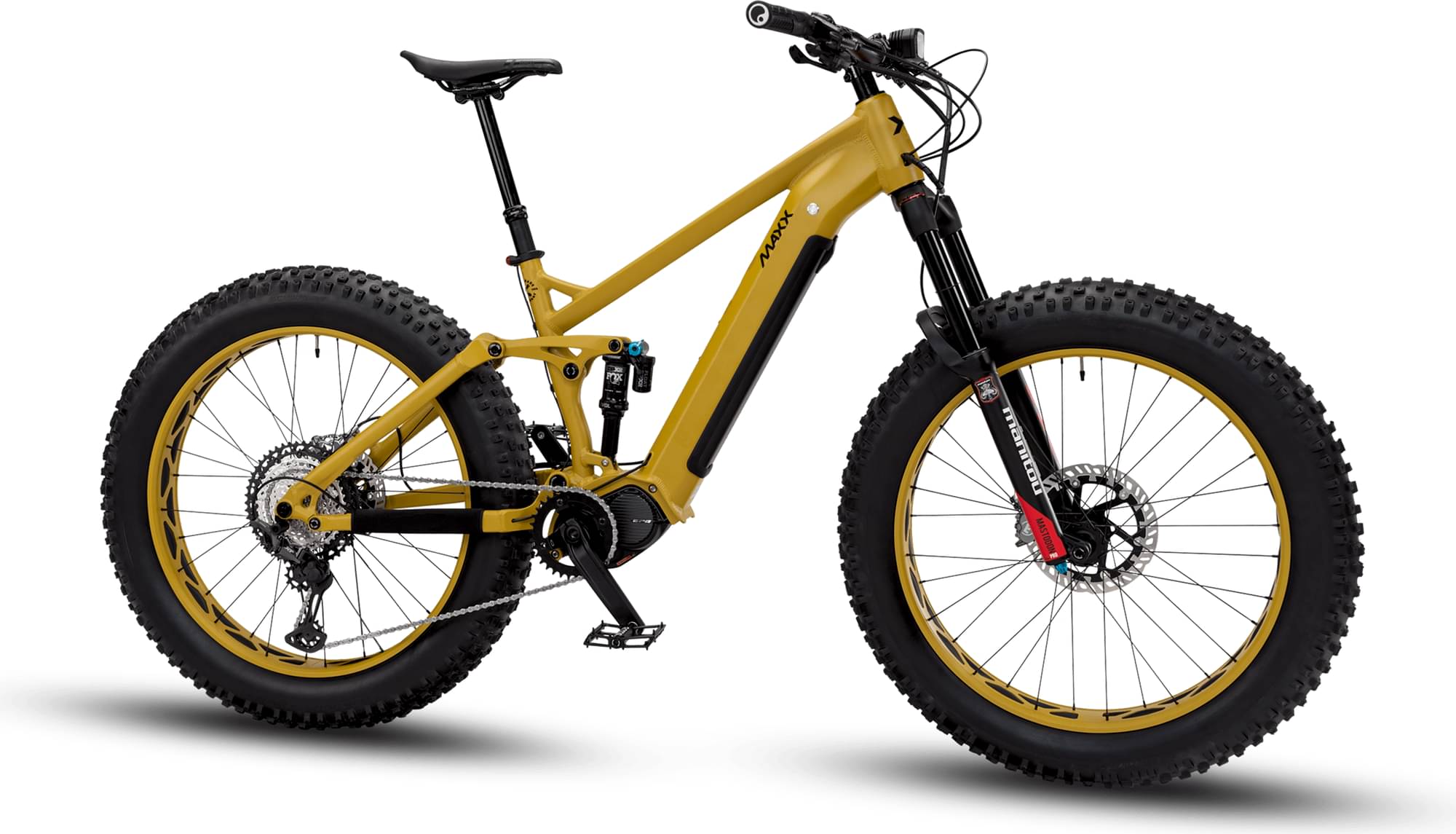

maxx Huraxdax ELS (EP8) 2024
2024 E-bike
Estimate price |
9,887$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 150mm -
Groupset XT -
Suspension Full -
Motor Shimano 85Nm mid-drive -
Battery 726 Wh, incl. 4A charger -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
LG
182cm - 190cm
XL
187cm - 198cm
XXL
195cm - 208cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
robust and rigid frame construction thanks to Octatube (8 angular down tube) - made of special 6061-T6 aluminum MAXX Custom tubing
Suspension Fork
Mastodon Pro Extension, airspring, 150 mm, TA 15 x 150 mm
Rear Shock
Manitou Mara T, adjustable platform, air spring
Drivetrain
Rear Derailleur
Shimano XT RD M8130
Shift Levers
Shimano XT SL M8130
Cassette
Shimano CS LG700 11-50 Z, 1 x 11
Crank
MAXX SX 34Z
Chain
Shimano 11-fach CNHG601
Pedals
Flat Pedal CNC, sealing bearings
Wheels
Front Hub
SunRingle SRC Disc 6H, through axle 15/150 mm
Rear Hub
SunRingle SRC Disc 6 H, Through Axle 12/197 mm
Rims
SunRingle Mulefut 80 SL, 32 H, FV, black
Tires
Schwalbe Al Mighty 4.8" 120-559 TLE
Brakes
Brakes
Shimano BR-M6120 4 piston- Disc 203/180 mm
Cockpit
Stem
e*thirteen Base
Handlebar
e*thirteen Base 800 x 20, 35 mm
Headset
Acros AZX-203 R4, semi-integr. Alu-Cartridge, tapered
Seat
Saddle
Selle Italia Man Flow
Seatpost
MAXX Premium w/QR
Motor & Battery
Motor
Shimano EP801, 85 Nm, max. support 400%
Battery
726 Wh, incl. 4A charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | LG | XL | XXL |
|---|---|---|---|
| Stack Reach Ratio | 1.448 mm | 1.406 mm | 1.402 mm |
| Bottom Bracket Height | 355 mm | 355 mm | 355 mm |
| Front Center | 1029 mm | 1052 mm | 1074 mm |
| Rake | 336 mm | 336 mm | 335 mm |
| Trail | -215 mm | -215 mm | -214 mm |
| Stack | 666 mm | 675 mm | 694 mm |
| Reach | 460 mm | 480 mm | 495 mm |
| Top Tube Length | 645 mm | 667 mm | 687 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 480 mm | 520 mm | 560 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 145 mm | 155 mm | 175 mm |
| Chainstay Length | 466 mm | 466 mm | 466 mm |
| Wheelbase | 1268 mm | 1292 mm | 1315 mm |
| Wheels | 26" | 26" | 26" |
| Rider Min Height | 182 cm | 187 cm | 195 cm |
| Rider Max Height | 190 cm | 198 cm | 208 cm |
