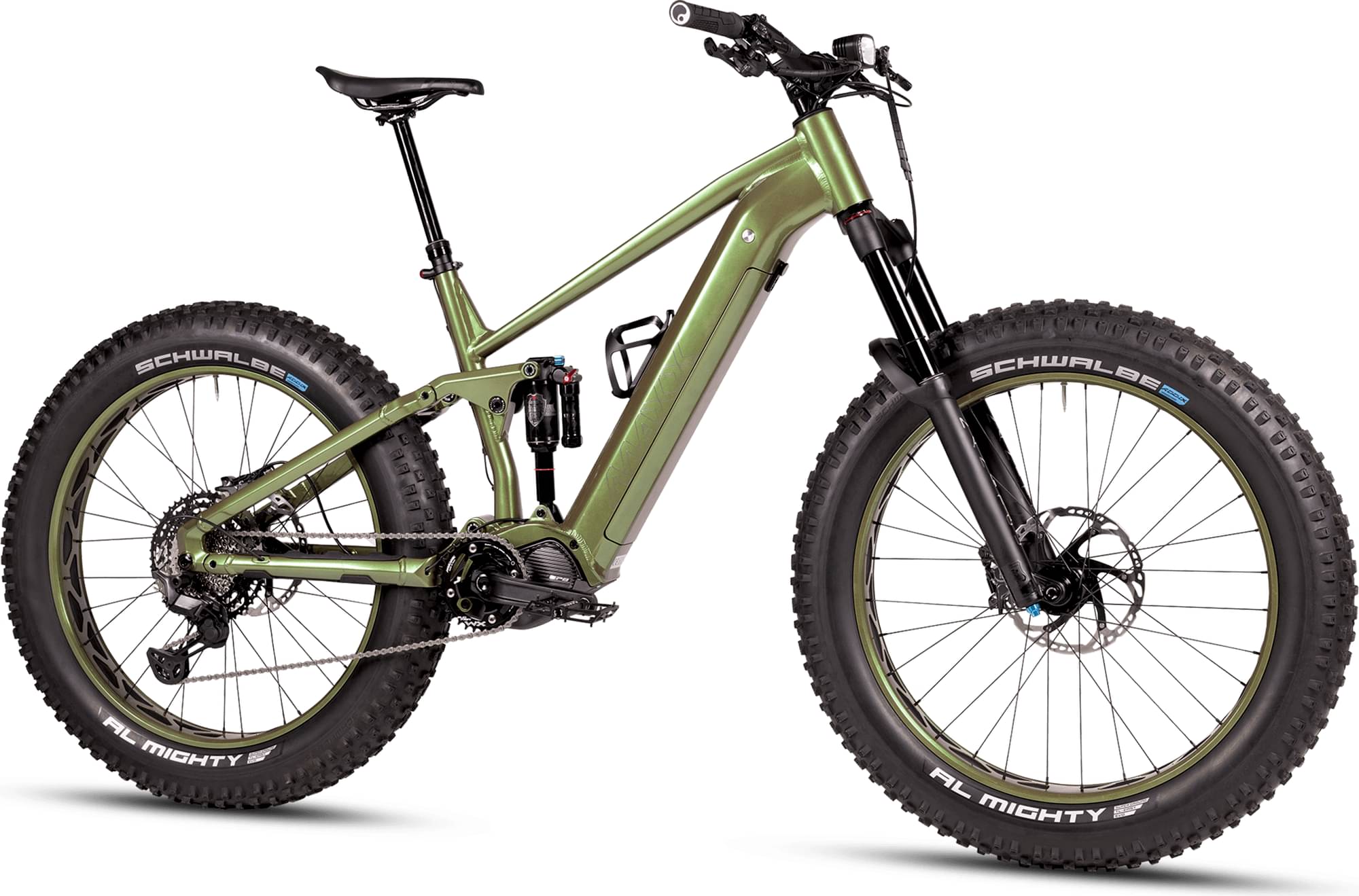

maxx Huraxdax ELS X2(EP801) 2025
2025 E-bike
Estimate price |
9,306$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 150mm -
Travel Rear 146mm -
Groupset XT -
Suspension Full -
Motor Shimano 600W 85Nm mid-drive -
Battery Darfon 600 Wh, Li-ion, 36 V Gen 2 EP600/801 -
Drivetrain 1 × 11 -
Brakes Shimano Deore Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 174cm
MD
172cm - 182cm
LG
180cm - 189cm
XL
187cm - 197cm
XXL
195cm - 208cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Robust and rigid frame construction thanks to Octatube (8 angular down tube) - made of special 6061-T6 aluminum MAXX Custom tubing.
Suspension Fork
Mastodon Pro Extension, airspring, 150 mm, TA 15 x 150 mm
Rear Shock
Manitou Mara Pro 205 X 62,5, frame S Rockshox Deluxe Select Plus TR 185x55
Drivetrain
Rear Derailleur
Shimano XT RD M8130
Shift Levers
Shimano XT SL M8130
Cassette
Shimano CS LG700 11-50 Z, 1 x 11
Crank
MAXX SX 34T
Chain
Shimano 11-fach CNHG601
Pedals
Flat Pedal CNC, sealing bearings
Wheels
Front Hub
SunRingle SRC Disc 6H, through axle 15/150 mm
Rear Hub
SunRingle SRC Disc 6 H, Through Axle 12/197 mm
Rims
Sun Ringle Mulefut 80 SL, 32 H, FV, black
Tires
Schwalbe Al Mighty 4.8" 120-559 TLE
Brakes
Brakes
Shimano BR-M6120 4 piston- Disc 203/180 mm
Cockpit
Stem
e*thirteen Base
Handlebar
e*thirteen Base 800 x 20, 35 mm
Headset
Acros Block-Lock, tapered, w/ 150° steering angle limitation
Seat
Saddle
Selle Italia Man Flow
Seatpost
MAXX Premium w/QR
Motor & Battery
Motor
Shimano EP801, 85 Nm, max. support 400%
Battery
Darfon 600 Wh, Li-ion, 36 V Gen 2 EP600/801
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.485 mm | 1.411 mm | 1.387 mm | 1.345 mm | 1.31 mm |
| Bottom Bracket Height | 355 mm | 355 mm | 355 mm | 355 mm | 355 mm |
| Front Center | 998 mm | mm | mm | mm | mm |
| Stack | 634 mm | 639 mm | 652 mm | 670 mm | 688 mm |
| Reach | 427 mm | 453 mm | 470 mm | 498 mm | 525 mm |
| Top Tube Length | 591 mm | 618 mm | 638 mm | 671 mm | 703 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 380 mm | 420 mm | 460 mm | 500 mm | 540 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 115 mm | 120 mm | 135 mm | 155 mm | 175 mm |
| Chainstay Length | 465 mm | 465 mm | 465 mm | 465 mm | 465 mm |
| Wheelbase | 1233 mm | 1251 mm | 1284 mm | 1320 mm | 1355 mm |
| Wheels | 26" | 26" | 26" | 26" | 26" |
| Rider Min Height | 160 cm | 172 cm | 180 cm | 187 cm | 195 cm |
| Rider Max Height | 174 cm | 182 cm | 189 cm | 197 cm | 208 cm |
