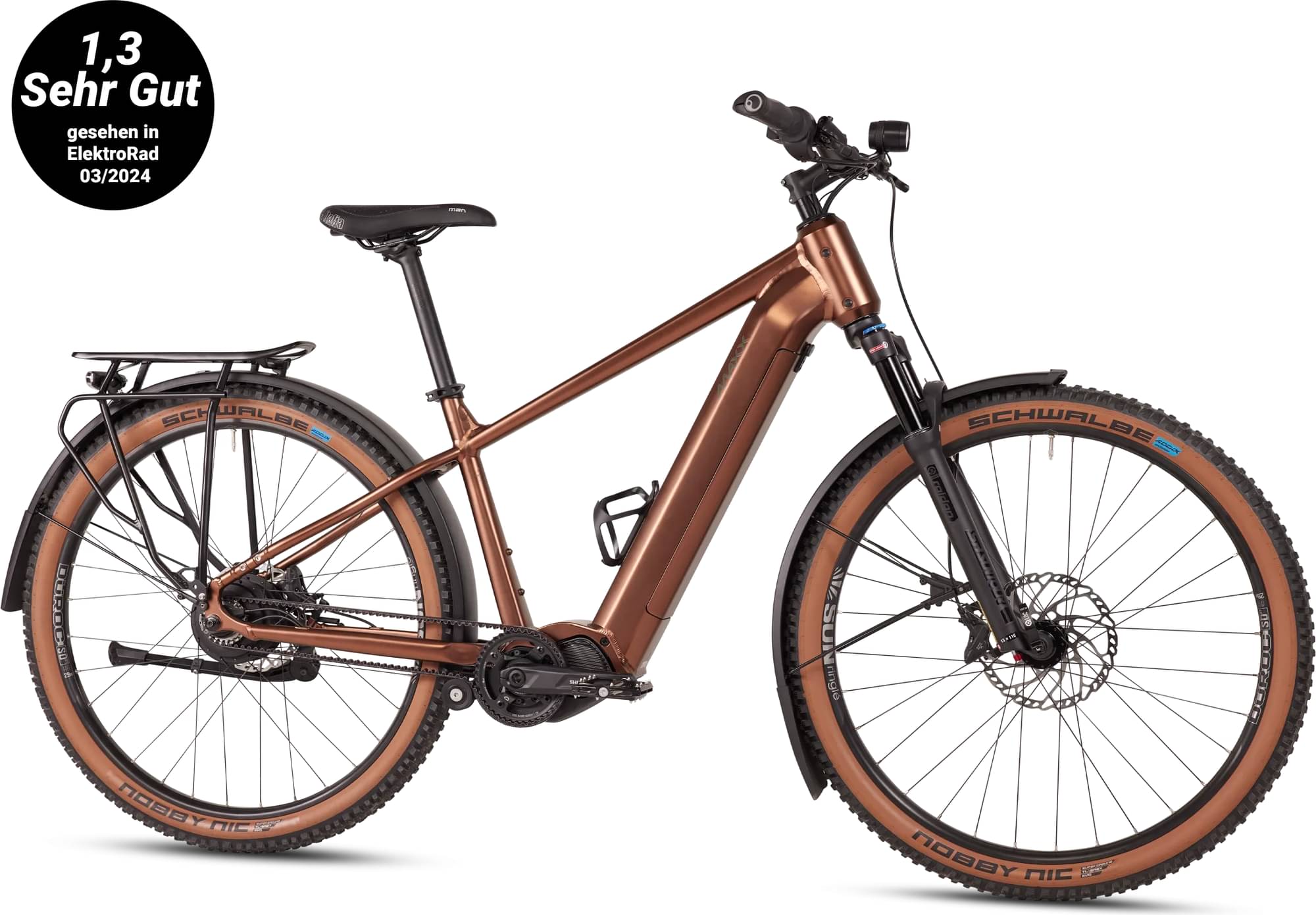

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset XT -
Suspension Rigid -
Motor Shimano 600W 85Nm mid-drive -
Battery Darfon 600 Wh, Li-ion, 36 V Gen 2 EP600/801 -
Drivetrain 1 × 11 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
SM
150cm - 165cm
MD
162cm - 181cm
LG
178cm - 189cm
XL
186cm - 197cm
XXL
194cm - 205cm
XXXL
202cm - 215cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Robust and rigid frame construction - made of special 6061-T6 Alu MAXX Custom tubing, 2-layer powder-coated in many colors and decors of your choice
Suspension Fork
MAXX Aluminum fork Pacemaxx ELS 27.5" 15 x 110, in frame color
Drivetrain
Rear Derailleur
Rear derailleur Shimano XT LINKGLIDE RD-M8130 11-speed
Shift Levers
Shimano XT Link Glide SL-M8130 11-speed
Cassette
Shimano LINKGLIDE LG700 11-speed 11-50 teeth
Crank
Shimano EP 600/8.. with CG SM-CRE80 44 t.
Chain
Shimano SLX 11-speed CNHG601
Pedals
MAXX Trekking GripLite
Wheels
Front Hub
SunRingle SRC 110 mm, TA15, 32 h
Rear Hub
SunRingle SRC 148 mm 11 f. TA 12 mm, 32 h
Rims
Sun Ringle Duroc 30 black (30 mm, 32 L)
Tires
Schwalbe Smart Sam Plus Perf. DD, GG, 57-584 Black-Reflex
Brakes
Brakes
Shimano BR-MT402 4 piston - Disc 203/180 mm
Cockpit
Stem
MAXX 16° (8°/12° optional)
Handlebar
MAXX Comfort Rizer, AL 6061, b=680 mm, h=15 mm, > 12°/-25 mm
Headset
Acros Block-Lock, tapered, w/ 150° steering angle limitation
Seat
Saddle
Ergon 'ST 10 Gel', black, 175 mm
Seatpost
MAXX Premium
Motor & Battery
Motor
Shimano EP600, 85 Nm, max. support 400%
Battery
Darfon 600 Wh, Li-ion, 36 V Gen 2 EP600/801
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL | XXXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.489 mm | 1.571 mm | 1.53 mm | 1.504 mm | 1.471 mm | 1.416 mm |
| Bottom Bracket Height | 297 mm | 305 mm | 305 mm | 305 mm | 305 mm | 305 mm |
| Front Center | 841 mm | 875 mm | 905 mm | 925 mm | 949 mm | 977 mm |
| Stack | 603 mm | 660 mm | 673 mm | 692 mm | 706 mm | 715 mm |
| Reach | 405 mm | 420 mm | 440 mm | 460 mm | 480 mm | 505 mm |
| Top Tube Length | 584 mm | 615 mm | 640 mm | 645 mm | 669 mm | 696 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 350 mm | 400 mm | 450 mm | 500 mm | 550 mm | 600 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 130 mm | 140 mm | 155 mm | 175 mm | 190 mm | 200 mm |
| Chainstay Length | 465 mm | 485 mm | 485 mm | 485 mm | 485 mm | 485 mm |
| Wheelbase | 1145 mm | 1197 mm | 1229 mm | 1250 mm | 1276 mm | 1305 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 | 650 |
| Rider Min Height | 150 cm | 162 cm | 178 cm | 186 cm | 194 cm | 202 cm |
| Rider Max Height | 165 cm | 181 cm | 189 cm | 197 cm | 205 cm | 215 cm |
