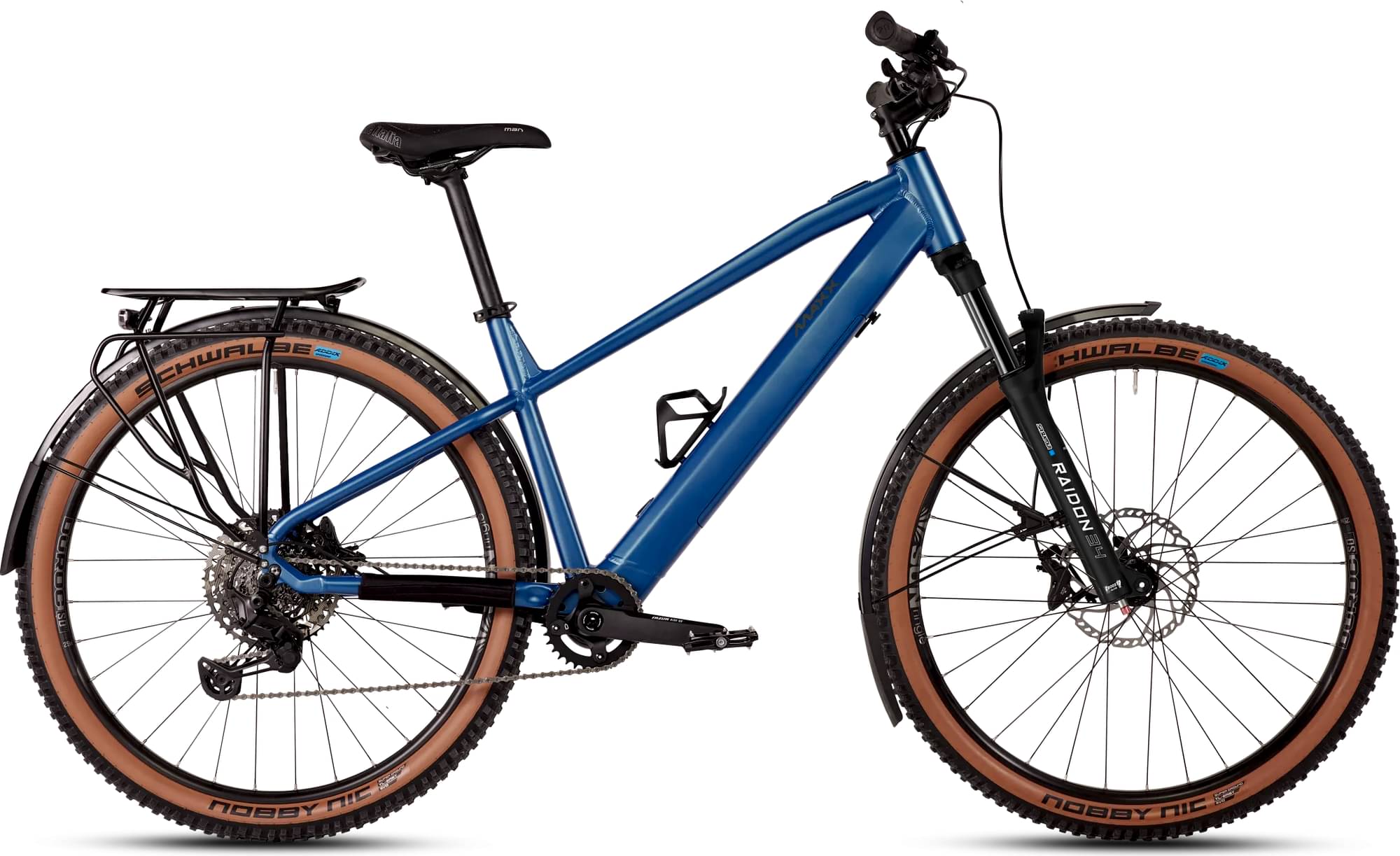

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset XT -
Suspension Rigid -
Motor Fazua 450W 60Nm mid-drive -
Battery Fazua 430 Wh, removable, incl. charger -
Drivetrain 1 × 11 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
XS
150cm - 161cm
SM
158cm - 171cm
MD
168cm - 181cm
LG
179cm - 189cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
4 frame sizes: XS/S (27.5"); M/L (29"), suitable for riders from 150 cm to 189 cm.
Suspension Fork
MAXX Aluminum fork Pacemaxx ELS 27.5" 15 x 110, in frame color
Drivetrain
Rear Derailleur
Shimano XT LINKGLIDE RD-M8130 11-speed
Shift Levers
Shimano XT Link Glide SL-M8130 11-speed
Cassette
Shimano LINKGLIDE LG700 11-speed 11-50 teeth
Crank
Fazua R60 Set Spider/Kettenblatt 34Z
Chain
Shimano SLX 11-speed CNHG601
Pedals
MAXX Trekking GripLite
Wheels
Front Hub
SunRingle SRC 110 mm, TA15, 32 h
Rear Hub
SunRingle SRC 148 mm 11 f. TA 12 mm, 32 h
Rims
Sun Ringle Duroc 30 black (30 mm, 32 L)
Tires
Schwalbe Smart Sam Plus Perf. DD, GG, 57-584 Black-Reflex
Brakes
Brakes
Shimano BR-MT402 4 piston - Disc 203/180 mm
Cockpit
Stem
MAXX 16° (8°/12° optional)
Handlebar
MAXX Comfort Rizer, AL 6061, b=680 mm, h=15 mm, > 12°/-25 mm
Headset
Acros Block-Lock, tapered, w/ 150° steering angle limitation
Seat
Saddle
Ergon 'ST 10 Gel', black, 175 mm
Seatpost
MAXX Premium
Motor & Battery
Motor
Fazua Ride 60, 60 Nm
Battery
Fazua 430 Wh, removable, incl. charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.452 mm | 1.378 mm | 1.448 mm | 1.414 mm |
| Bottom Bracket Height | 304 mm | 304 mm | 308 mm | 308 mm |
| Front Center | 845 mm | 874 mm | 907 mm | 927 mm |
| Stack | 578 mm | 587 mm | 637 mm | 646 mm |
| Reach | 398 mm | 426 mm | 440 mm | 457 mm |
| Top Tube Length | 575 mm | 605 mm | 635 mm | 655 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 350 mm | 380 mm | 420 mm | 460 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 435 mm | 435 mm | 455 mm | 455 mm |
| Wheelbase | 1100 mm | 1131 mm | 1188 mm | 1209 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 150 cm | 158 cm | 168 cm | 179 cm |
| Rider Max Height | 161 cm | 171 cm | 181 cm | 189 cm |
