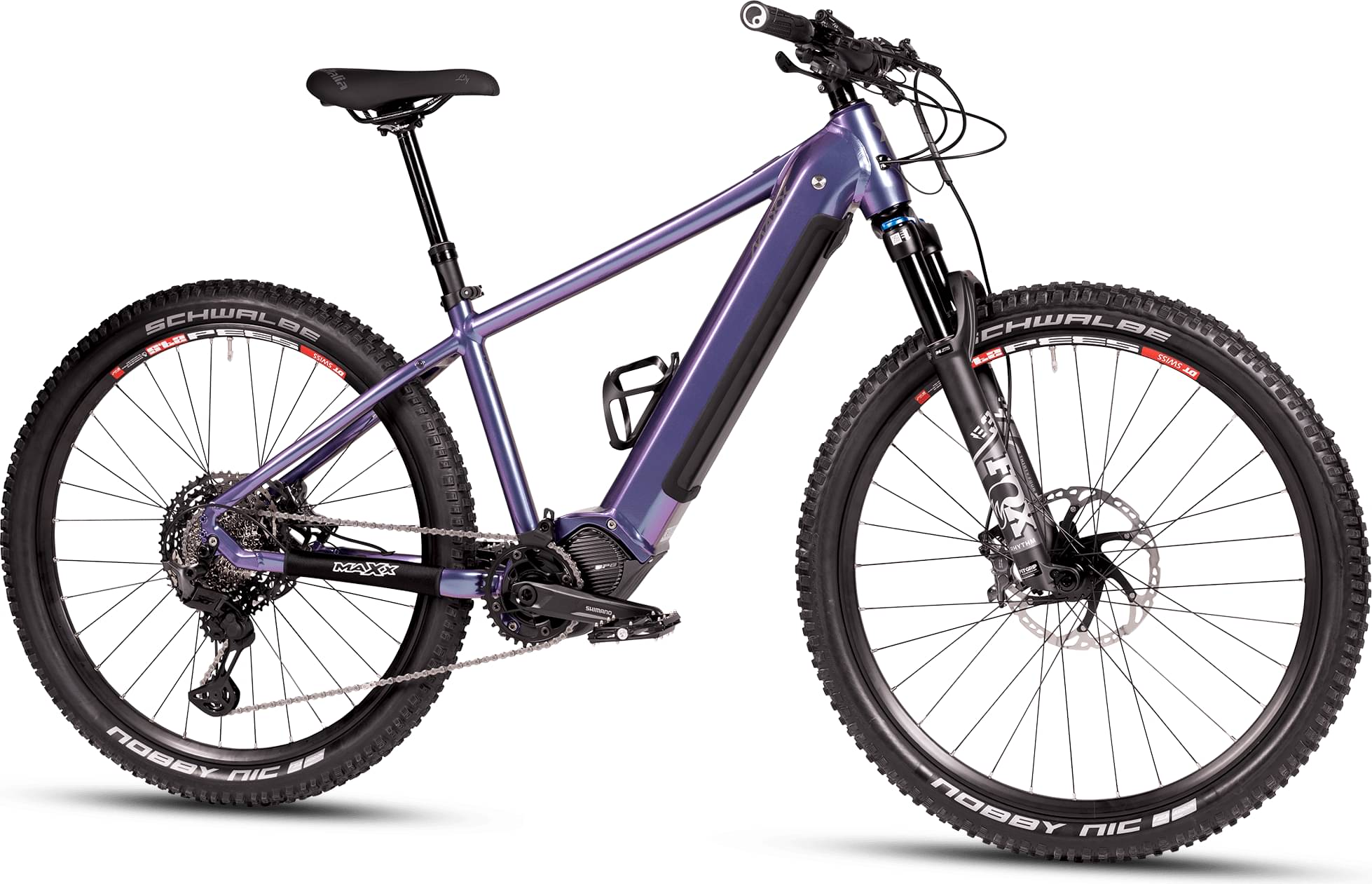

maxx Race ELS (EP8) 2025
2025 E-bike
Estimate price |
5,583$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork Suntour RAIDON
-
Groupset XT -
Suspension Hardtail -
Motor Shimano 600W 85Nm mid-drive -
Battery 726 Wh, incl. 4A charger -
Drivetrain 1 × 11 -
Brakes Shimano Deore Hydraulic Disc
Sizing
Recommended size guide.
XXL
195cm - 202cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Comfortable sports geometry for a wide range of uses Robust and stiff frame construction thanks to Octatube (8-sided down tube) made of 6061-T6 Alu MAXX Custom Tubing.
Suspension Fork
Suntour Raidon34 Boost, 100 mm; 15/110 mm, air spring, w/ lockout, black
Drivetrain
Rear Derailleur
Shimano XT RD M8130
Shift Levers
Shimano XT SL M8130
Cassette
Shimano CS LG700 11-50 Z, 1 x 11
Crank
Shimano SMCRME80 Boost 34 T,
Chain
Shimano 11-fach CNHG601
Pedals
Flat Pedal CNC, sealing bearings
Wheels
Front Hub
MICHE 550 Boost, through axle 15/110 mm
Rear Hub
MICHE 550 Boost, Through Axle 12/148 mm
Rims
Newman Performance Strong 30, 29" black (30 mm, 32 L)
Tires
Schwalbe Nobby Nic Performance folding; 62-622
Brakes
Brakes
Shimano BR-M6120 4-Kolben- Disc 203/180 mm
Cockpit
Stem
MAXX MTB 0° oder 7°
Handlebar
MAXX Rizer 35 MTB
Headset
Acros Block-Lock, tapered, w/ 150° steering angle limitation
Seat
Saddle
Selle Italia Man Flow
Seatpost
MAXX PremiumMAXX Premium w/QR
Motor & Battery
Motor
Shimano EP600, 85 Nm, max. support 400%
Battery
726 Wh, incl. 4A charger
Fit data
Geometry
