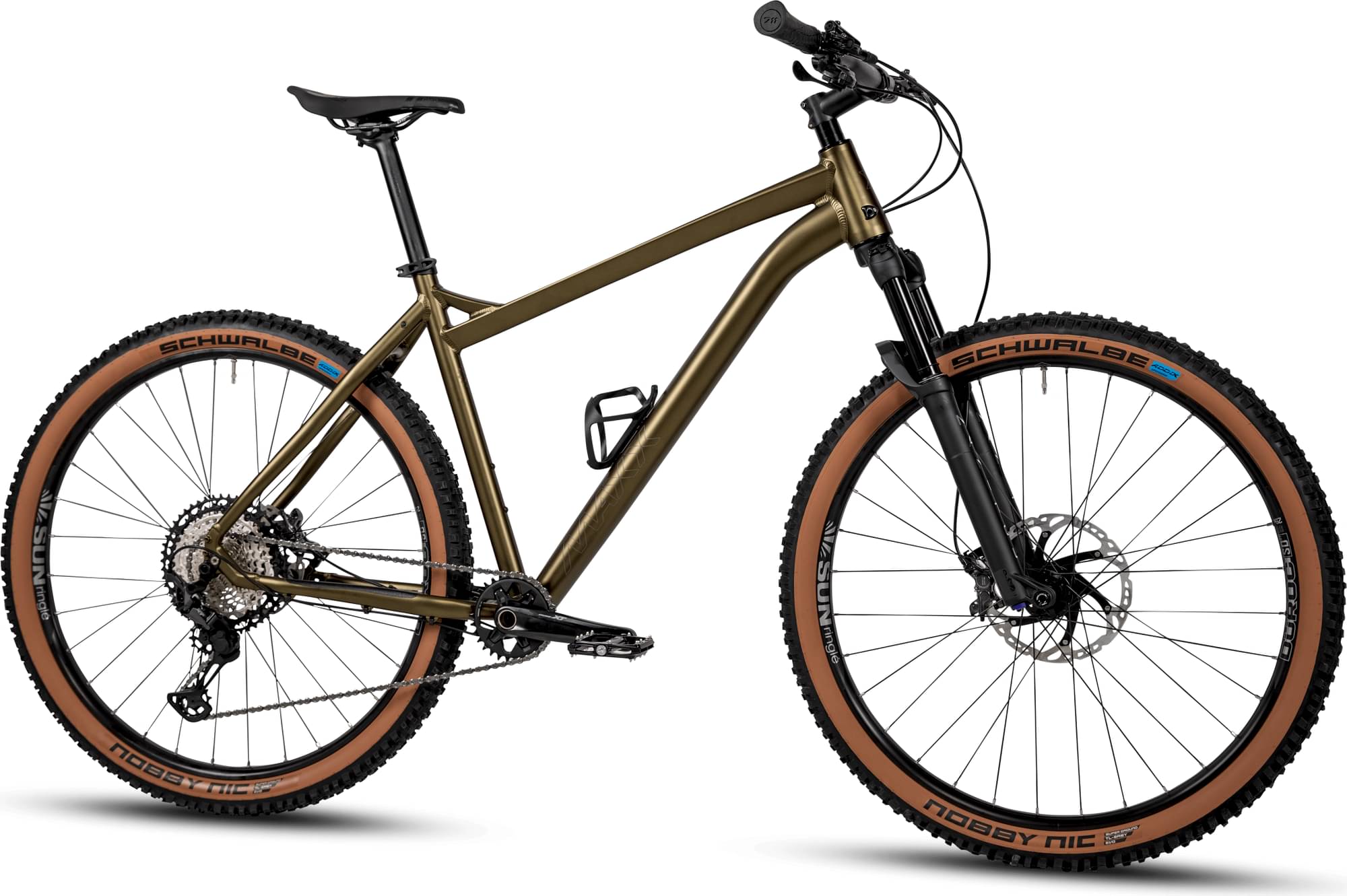

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork Suntour RAIDON
-
Groupset XT, SLX -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XL
189cm - 196cm
XXL
193cm - 204cm
XXXL
201cm - 207cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Robust and stiff high-end frame made of 6061-T6 Aluminium MAXX Custom tubing, double layer powdercoated
Suspension Fork
Suntour Raidon34 Boost, 100 mm; 15/110 mm, air spring, w/ lockout, black
Drivetrain
Rear Derailleur
Shimano XT RD M8100
Shift Levers
Shimano SLX
Cassette
Shimano CS M7100 10-51 Z, 1 x 12
Crank
Shimano Boost XT 30 T,
Bottom Bracket
BSA, 73mm, threaded
Chain
Shimano 12-fach CN M7100
Pedals
Flat Pedal CNC, sealed bearings
Wheels
Front Hub
SunRingle SRC, through axle 15/110 mm
Rear Hub
MICHE 550 Boost, Through Axle 12/148 mm
Rims
SunRingle Duroc SD 37, 32 H, SV, black
Tires
Schwalbe Nobby Nic Performance folding; 62-622
Brakes
Brakes
Shimano BR-M6120 4 piston- Disc 203/180 mm
Cockpit
Stem
MAXX MTB 7°
Handlebar
MAXX Rizer 35 MTB
Headset
Acros AZX-203 R4, semi-integr. Alu-Cartridge, tapered
Seat
Saddle
Selle Italia Man Flow
Seatpost
MAXX Premium
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XL | XXL | XXXL |
|---|---|---|---|
| Stack Reach Ratio | 1.424 mm | 1.422 mm | 1.418 mm |
| Bottom Bracket Height | 300 mm | 300 mm | 300 mm |
| Front Center | 901 mm | 922 mm | 937 mm |
| Rake | 239 mm | 239 mm | 234 mm |
| Trail | -106 mm | -106 mm | -101 mm |
| Stack | 645 mm | 664 mm | 682 mm |
| Reach | 453 mm | 467 mm | 481 mm |
| Top Tube Length | 650 | 670 mm | 690 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 520 mm | 560 mm | 600 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 135 mm | 155 mm | 175 mm |
| Chainstay Length | 455 mm | 455 mm | 475 mm |
| Wheelbase | 1192 mm | 1214 mm | 1256 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 189 cm | 193 cm | 201 cm |
| Rider Max Height | 196 cm | 204 cm | 207 cm |
