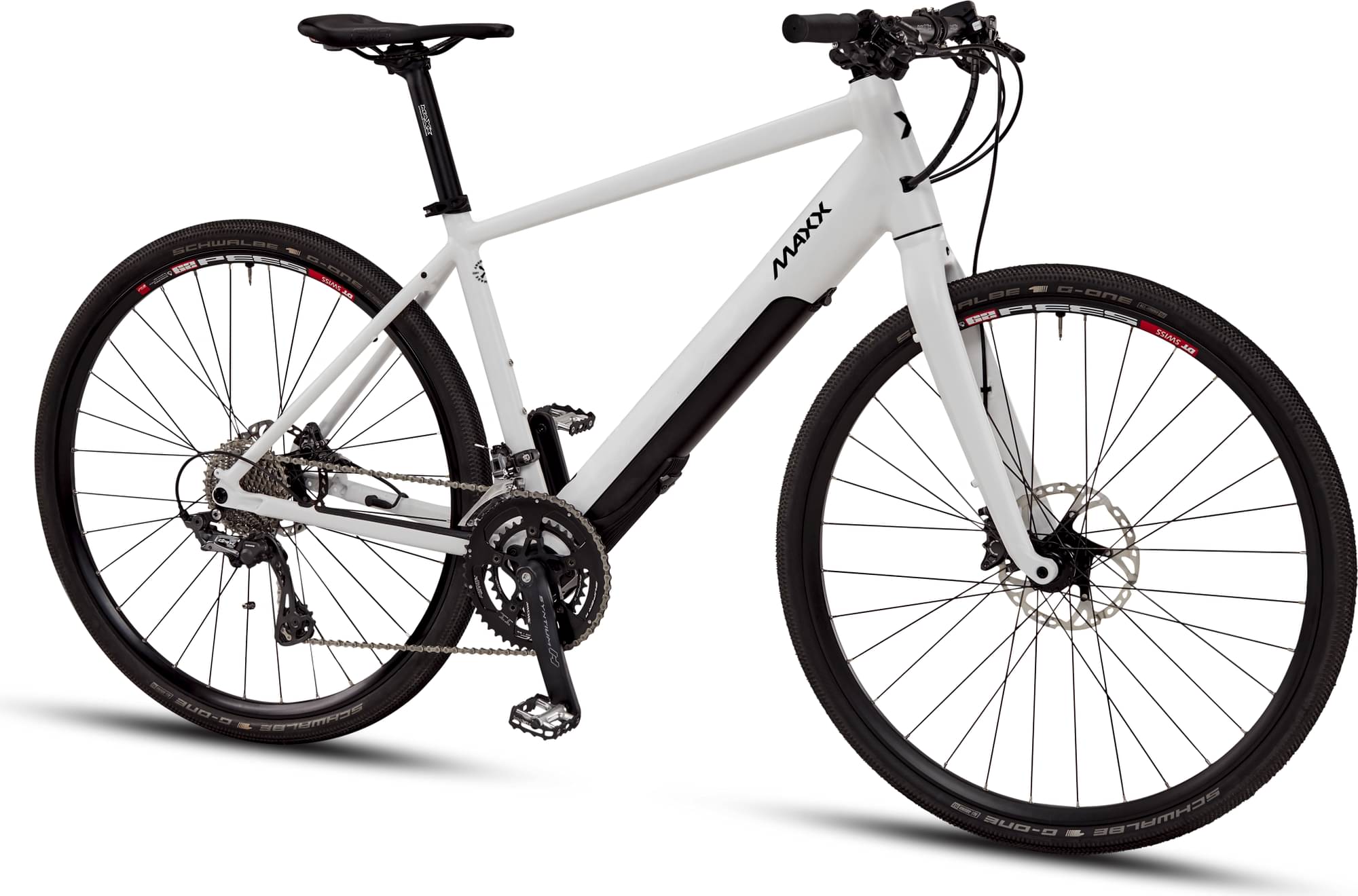

maxx Road ELF Sport (Fazua Ride 50) 2024
2024 E-bike
Estimate price |
5,816$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset GRX 800 -
Suspension Rigid -
Motor Fazua 58Nm mid-drive -
Battery Fazua, 250 X Wh, removable, incl. charger -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
4XL
204cm - 210cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Robust and light frame made 6061-T6 Alu MAXX Custom tubing, 2-layers powdercoated.
Suspension Fork
Rigid fork MAXX/Kinesis E-Type, 15 mm through axle, powdercoated in frame colour
Drivetrain
Rear Derailleur
Shimano GRX 810
Front Derailleur
Shimano GRX 810
Shift Levers
Shimano GRX 810
Cassette
Shimano Ultegra 11-34T 22-sp
Crank
Road 50/34 T,
Chain
KMC e11 EPT
Pedals
MAXX MTB Alu Lite
Wheels
Front Hub
SunRingle SRC Disc 6H, through axle 15/100 mm
Rear Hub
SunRingle SRC Disc 6 H, Through Axle 12/142 mm
Rims
SunRingle Duroc 30, 32 H, SV, black max. 150 kg
Tires
Schwalbe Durano E-Performance 40-622
Brakes
Brakes
Shimano XT BR-M8100 - Disc 180/160 mm
Cockpit
Stem
MAXX 8° (12°/16° optional)
Handlebar
MAXX Dropbar
Headset
Acros AZX-203 R4, semi-integr. Alu-Cartridge, tapered
Seat
Saddle
Selle Italia Man Flow
Seatpost
MAXX Premium
Motor & Battery
Motor
Fazua Ride 50 Trail, 58 Nm
Battery
Fazua, 250 X Wh, removable, incl. charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 4XL |
|---|---|
| Stack Reach Ratio | 1.584 mm |
| Bottom Bracket Height | 284 mm |
| Front Center | 863 mm |
| Rake | 208 mm |
| Trail | -94 mm |
| Stack | 700 |
| Reach | 442 mm |
| Top Tube Length | 662.5 mm |
| Seat Tube Angle | 72.5 ° |
| Seat Tube Length | 640 mm |
| Head Tube Angle | 70 ° |
| Head Tube Length | 270 mm |
| Chainstay Length | 458 mm |
| Wheelbase | 1174 mm |
| Wheels | 700 |
| Rider Min Height | 204 cm |
| Rider Max Height | 210 cm |
