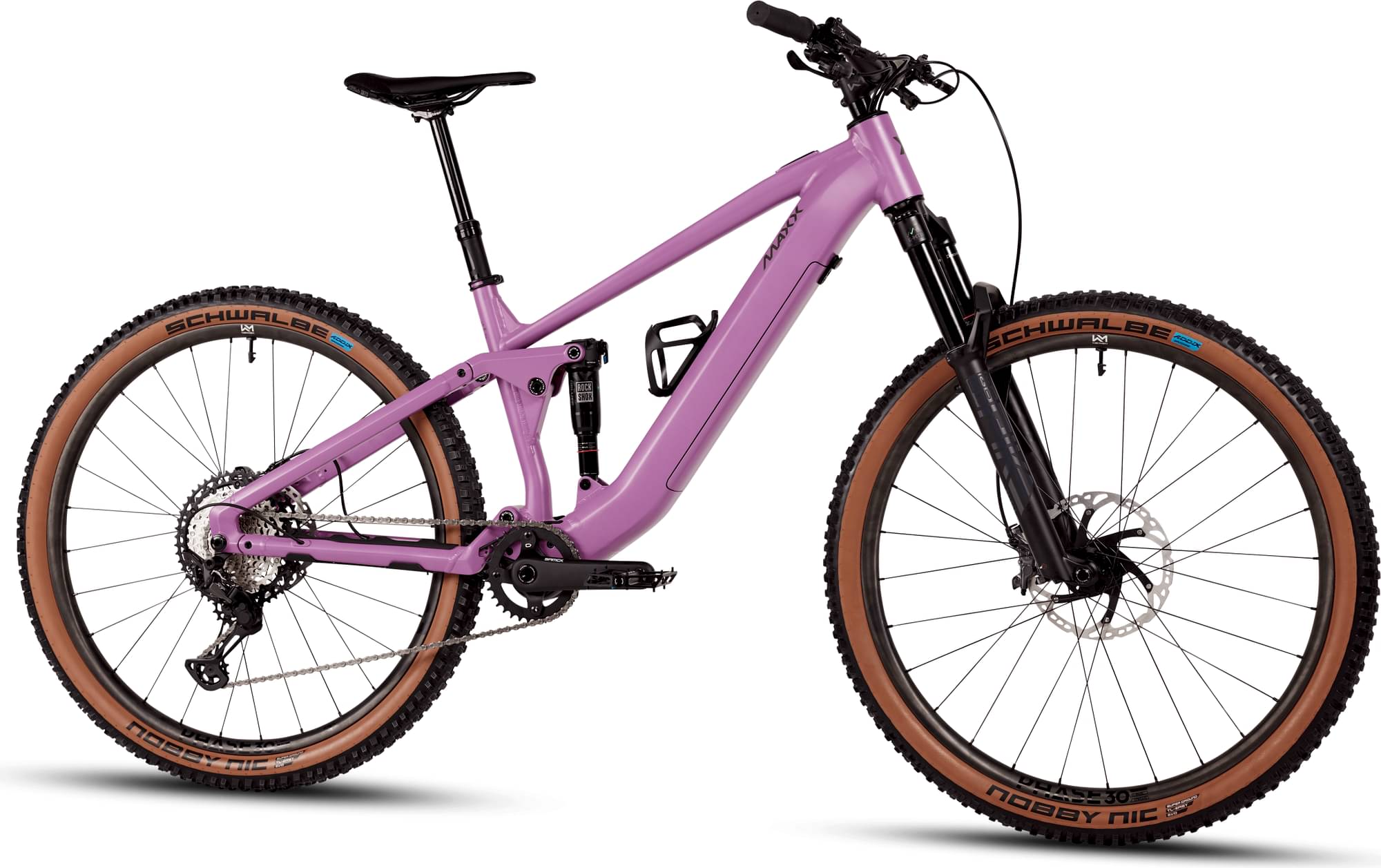

maxx The Jinxx ELF – Fazua Ride 60 2025
2025 E-bike
Estimate price |
6,397$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 140mm -
Fork RockShox Pike Select
-
Groupset XT -
Suspension Full -
Motor Fazua 450W 60Nm mid-drive -
Battery Fazua 430 Wh, removable, incl. charger -
Drivetrain 1 × 11 -
Brakes Shimano Deore Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 171cm
MD
169cm - 182cm
LG
180cm - 190cm
XL
187cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Lightweight aluminum frame made of 6061-T6 Alu
Suspension Fork
RockShox Pike Select 140mm; Debon Air air spring, black
Rear Shock
Rockshox Deluxe Select Plus TR 185x55, adjustable platform, air spring
Drivetrain
Rear Derailleur
Shimano XT RD M8130
Shift Levers
Shimano XT SL M8130
Cassette
Shimano CS LG700 11-50 Z, 1 x 11
Crank
Fazua Boost 34 T,
Chain
Shimano 11-fach CNHG601
Pedals
Flat Pedal CNC, sealing bearings
Wheels
Front Hub
MICHE 550 Boost, through axle 15/110 mm
Rear Hub
MICHE 550 Boost, through axle 12/148 mm
Rims
Sun Ringle Duroc 30 black (30 mm, 32 L)
Tires
Schwalbe Nobby Nic Performance; 65-584
Brakes
Brakes
Shimano BR-M6120 4-Kolben- Disc 203/180 mm
Cockpit
Stem
MAXX MTB 0° oder 7°
Handlebar
MAXX Rizer 35 MTB
Headset
Acros Block-Lock, tapered, w/ 150° steering angle limitation
Seat
Saddle
Selle Italia Man Flow
Seatpost
MAXX Premium
Motor & Battery
Motor
Fazua Ride 60, 60 Nm
Battery
Fazua 430 Wh, removable, incl. charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.33 mm | 1.365 mm | 1.32 mm | 1.293 mm |
| Bottom Bracket Height | 342 mm | 345 mm | 345 mm | 345 mm |
| Front Center | 974 mm | 996 mm | mm | mm |
| Stack | 589 mm | 625 mm | 635 mm | 653 mm |
| Reach | 443 mm | 458 mm | 481 mm | 505 mm |
| Top Tube Length | 595 mm | 620 mm | 645 mm | 674 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75.5 ° |
| Seat Tube Length | 380 mm | 420 mm | 460 mm | 500 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 110 mm | 120 mm | 140 mm | 150 mm |
| Chainstay Length | 445 mm | 461 mm | 461 mm | 461 mm |
| Wheelbase | 1197 mm | 1240 mm | 1266 mm | 1298 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 155 cm | 169 cm | 180 cm | 187 cm |
| Rider Max Height | 171 cm | 182 cm | 190 cm | 196 cm |
