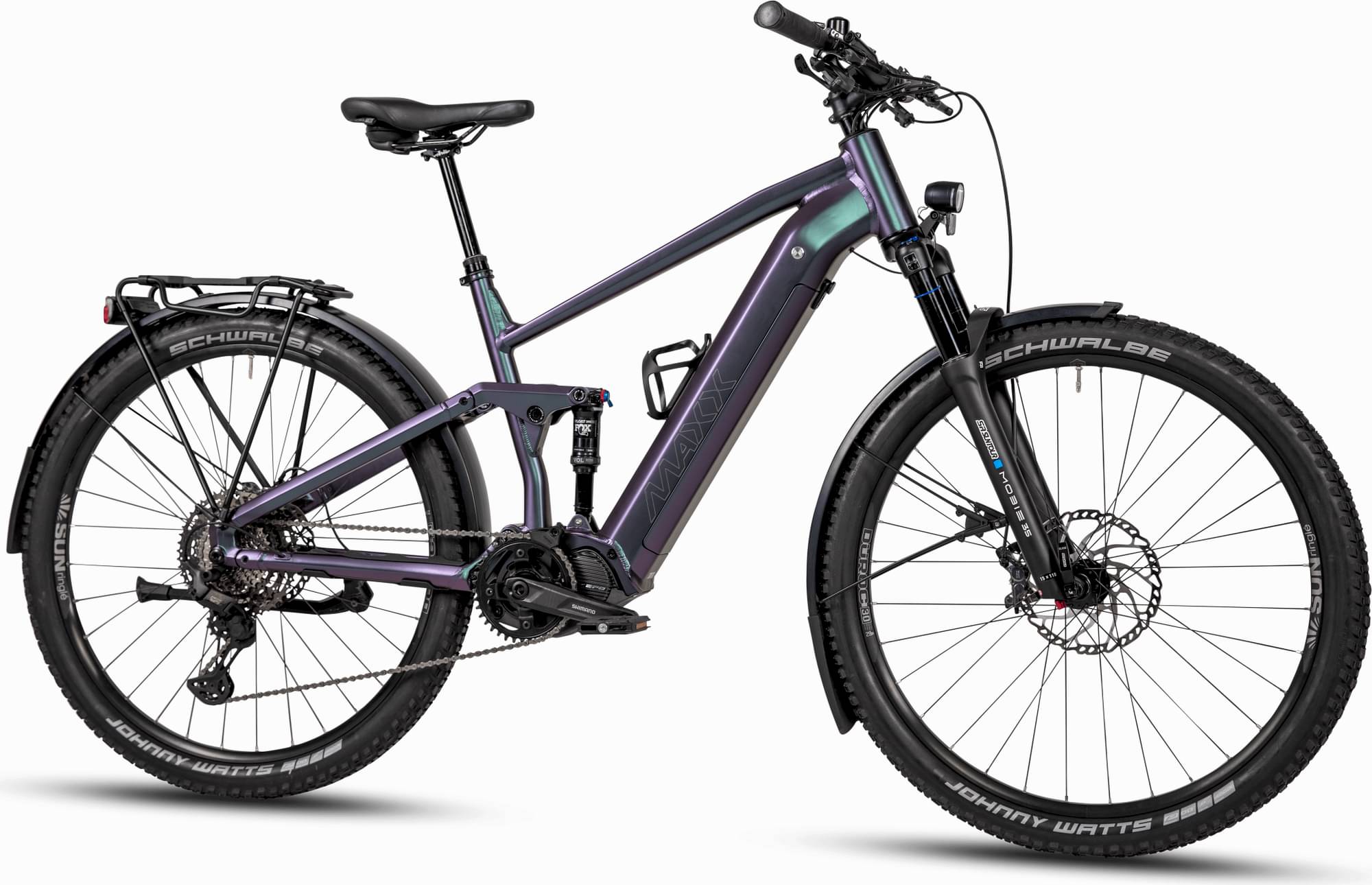

maxx Tour ELS TOUR (EP8) 2025
2025 E-bike
Estimate price |
7,212$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Fork Suntour AURON -
Groupset XT -
Suspension Hardtail -
Motor Shimano 600W 85Nm mid-drive -
Battery 726 Wh, incl. 4A charger -
Drivetrain 1 × 11 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 175cm
MD
173cm - 182cm
LG
180cm - 189cm
XL
187cm - 197cm
XXL
195cm - 208cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Robust and rigid frame construction thanks to Octatube (8 angular down tube) - made of special 6061-T6 aluminum MAXX Custom tubing
Suspension Fork
Suntour Auron 35 EQ Boost 130mm, TA 15x110 mm, air spring, w/ lockout, black
Rear Shock
Rockshox Deluxe Select Plus TR 185x55 adjustable platform, air spring
Drivetrain
Rear Derailleur
Shimano XT RD M8130
Shift Levers
Shimano XT SL M8130
Cassette
Shimano CS LG700 11-50 Z, 1 x 11
Crank
Shimano 38 T
Chain
Shimano 11-fach CNHG601
Pedals
MAXX Trekking GripLite
Wheels
Front Hub
SunRingle SRC, through axle 15/110 mm
Rear Hub
SunRingle SRC Disc 6 H, Through Axle 12/148 mm
Rims
Newman Performance Strong 30, 29" black (30 mm, 32 L)
Tires
Schwalbe Jonny Watts; 60-622
Brakes
Brakes
Shimano BR-MT402 4 piston - Disc 203/180 mm
Cockpit
Stem
MAXX 16° (8°/12° optional)
Handlebar
MAXX Comfort Rizer
Headset
Acros Block-Lock, tapered, w/ 150° steering angle limitation
Seat
Saddle
Ergon 'ST 10 Gel', black, 175 mm
Seatpost
MAXX Premium
Motor & Battery
Motor
Shimano EP600, 85 Nm, max. support 400%
Battery
726 Wh, incl. 4A charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.482 mm | 1.436 mm | 1.404 mm | 1.377 mm | 1.355 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm | 345 mm | 345 mm |
| Front Center | 959 mm | 981 mm | mm | mm | mm |
| Stack | 633 mm | 642 mm | 653 mm | 665 mm | 679 mm |
| Reach | 427 mm | 447 mm | 465 mm | 483 mm | 501 mm |
| Top Tube Length | 591 mm | 613 mm | 634 mm | 655 mm | 676 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 380 mm | 420 mm | 470 mm | 520 mm | 560 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 125 mm | 135 mm | 145 mm | 160 mm | 175 mm |
| Chainstay Length | 470 mm | 470 mm | 470 mm | 470 mm | 470 mm |
| Wheelbase | 1214 mm | 1237 mm | 1260 mm | 1283 mm | 1307 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 160 cm | 173 cm | 180 cm | 187 cm | 195 cm |
| Rider Max Height | 175 cm | 182 cm | 189 cm | 197 cm | 208 cm |
