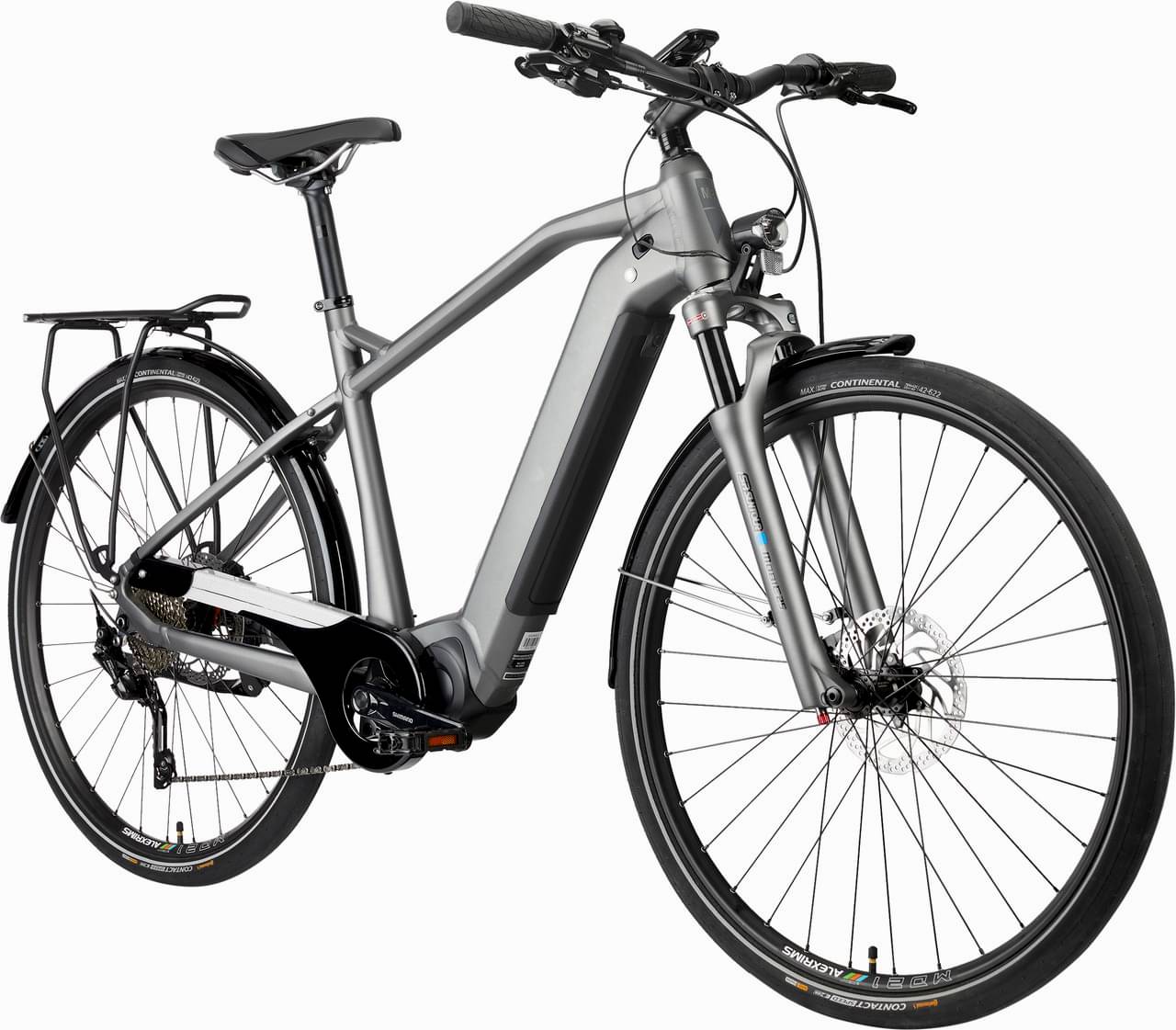

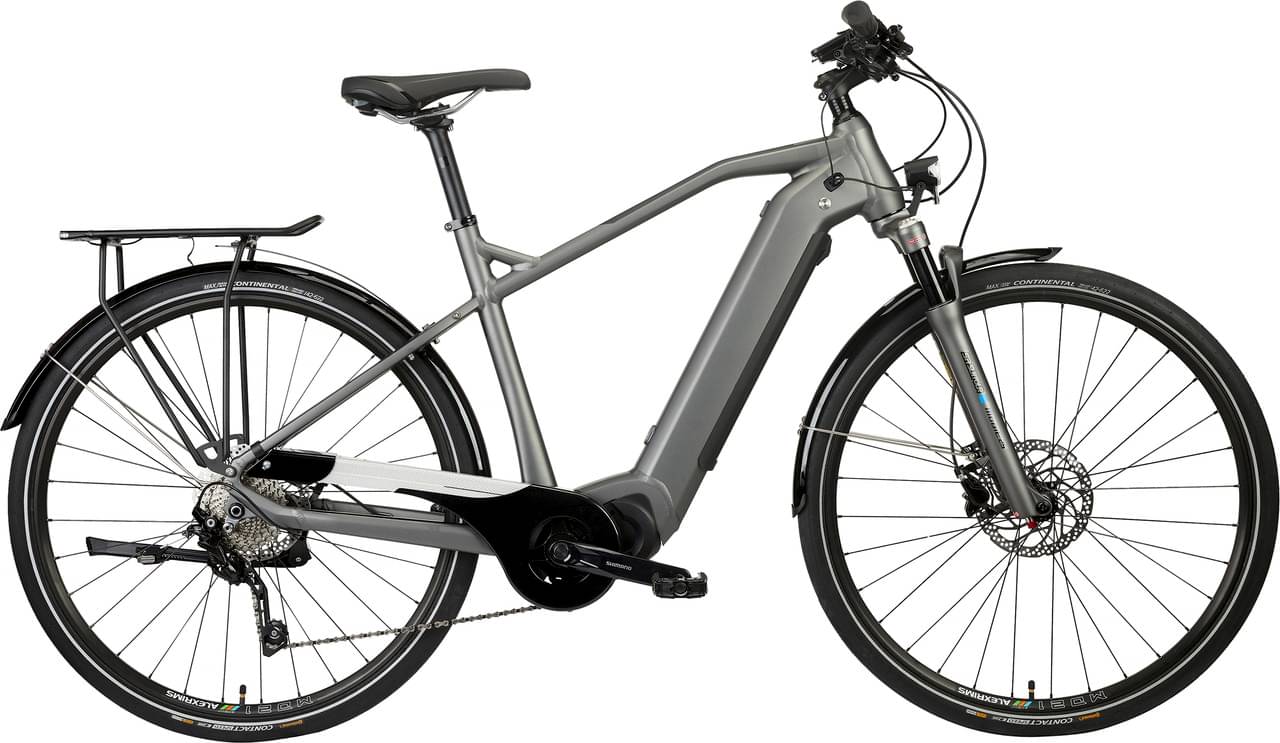

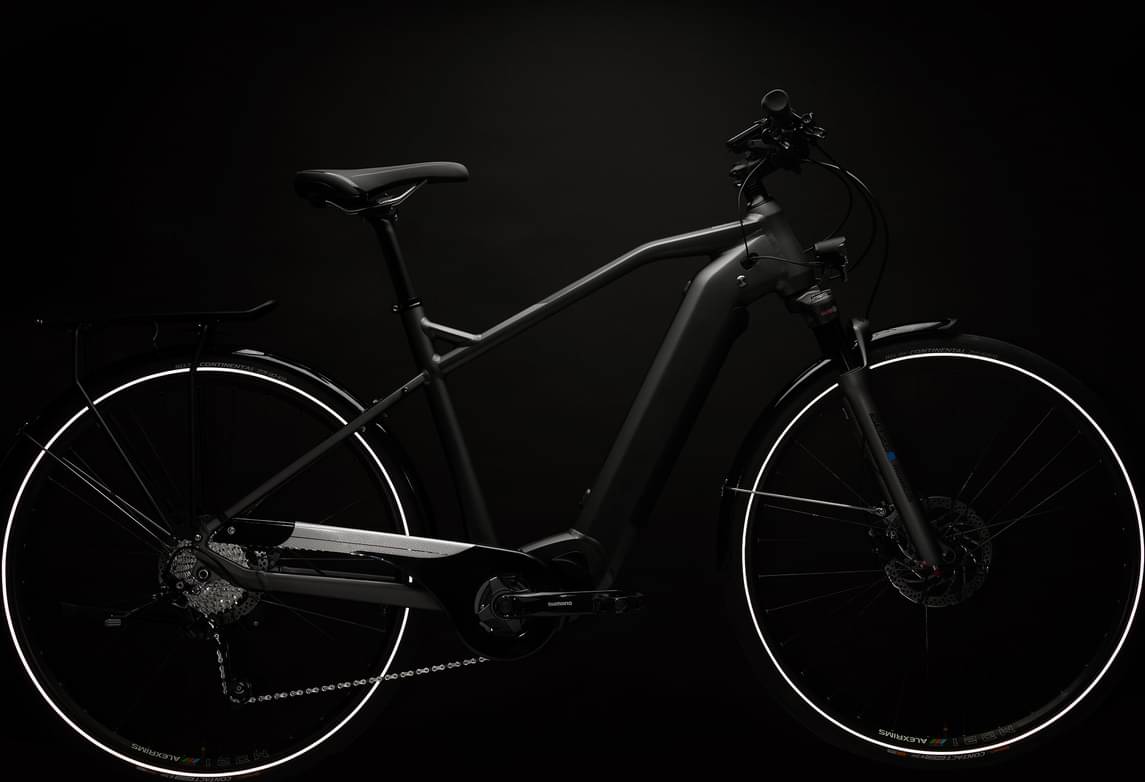

mec 407 E 2023
2023 E-bike
Estimate price |
1,520$
Weight | 22.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Deore, Shimano -
Suspension Hardtail -
Motor Shimano 250W 40Nm mid-drive -
Battery Darfon E4 -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum 6061 alloy
Suspension Fork
SR Suntour NEX
Drivetrain

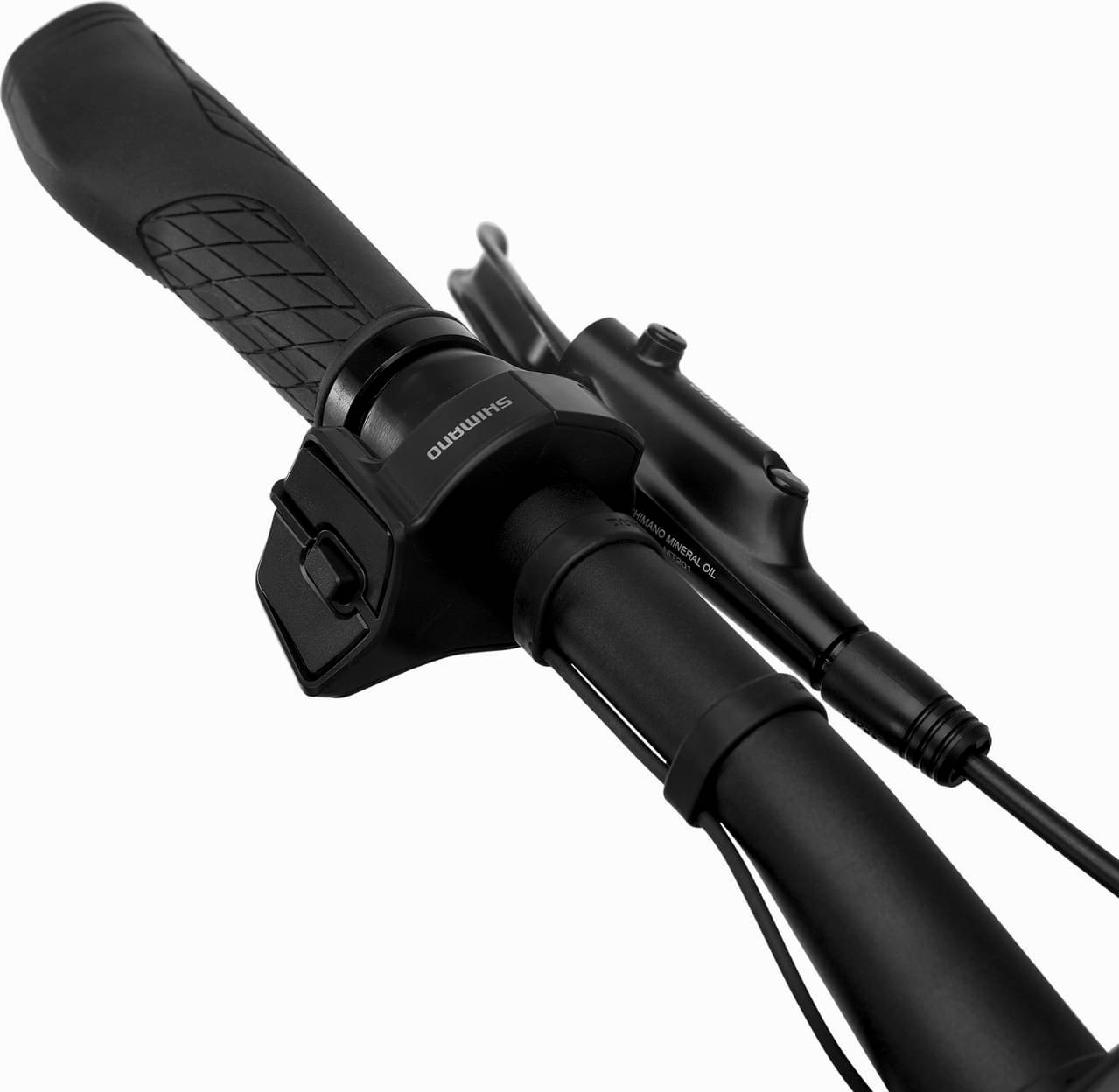

Shift Levers
Shimano Deore

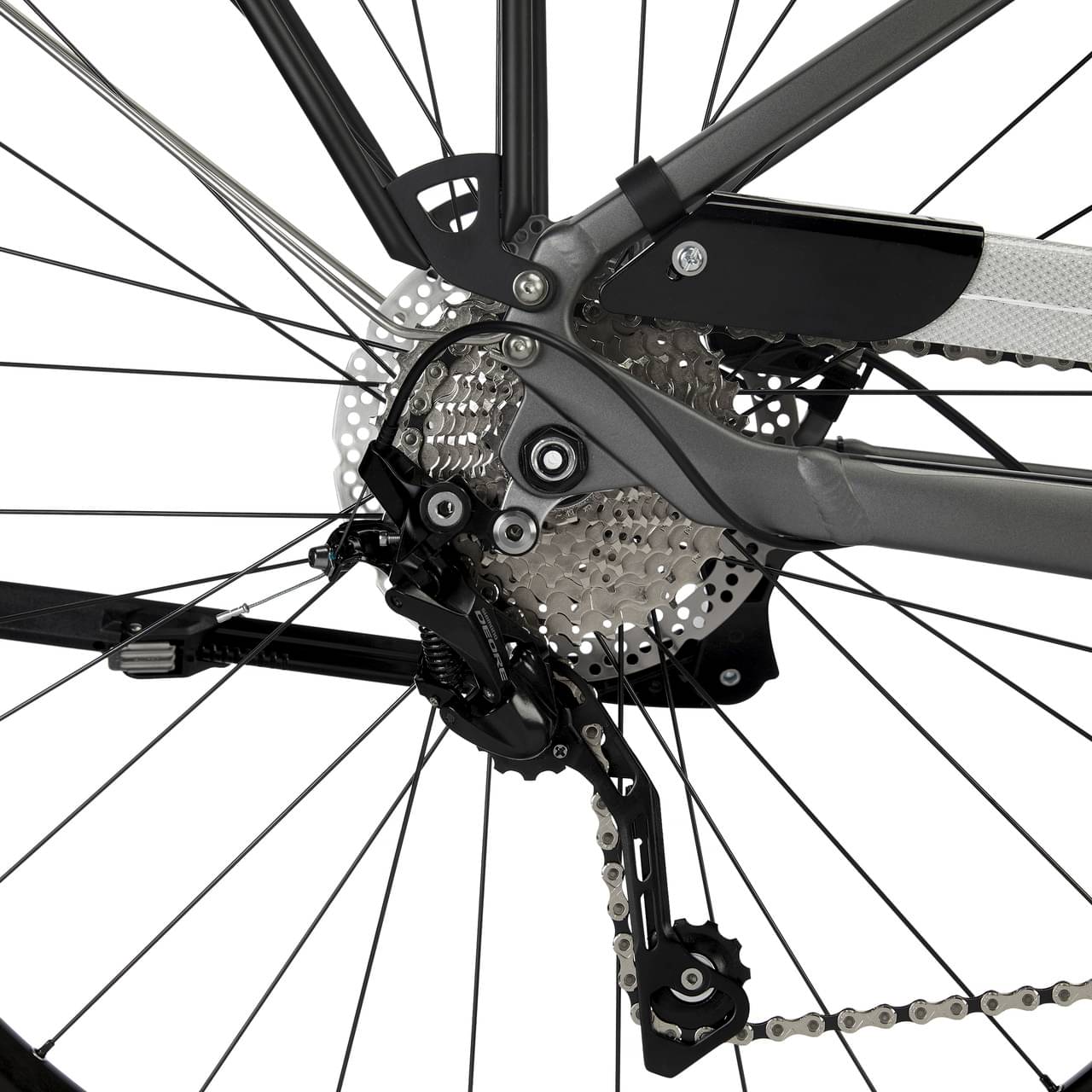

Cassette
Shimano CS-HG500 10-speed 11-34T
Crank
Shimano FC-E5000 38T
Chain
KMC E10S
Pedals
MEC Trekking
Wheels
Front Hub
Shimano Deore
Rear Hub
Shimano Deore
Rims
Alex MD21
Spokes
DT Champion
Tires
Continental Speed Contact Reflex 700 x 42
Brakes
Brakes
Shimano BR-MT201 (hydraulic disc)
Brake Levers
Shimano Acera
Cockpit
Stem
MEC E-City 31.8mm 35°
Handlebar
MEC E-City Riser 31.8mm
Headset
FSA Orbit
Seat
Saddle
MEC Comfort
Seatpost
MEC aluminum
Motor & Battery

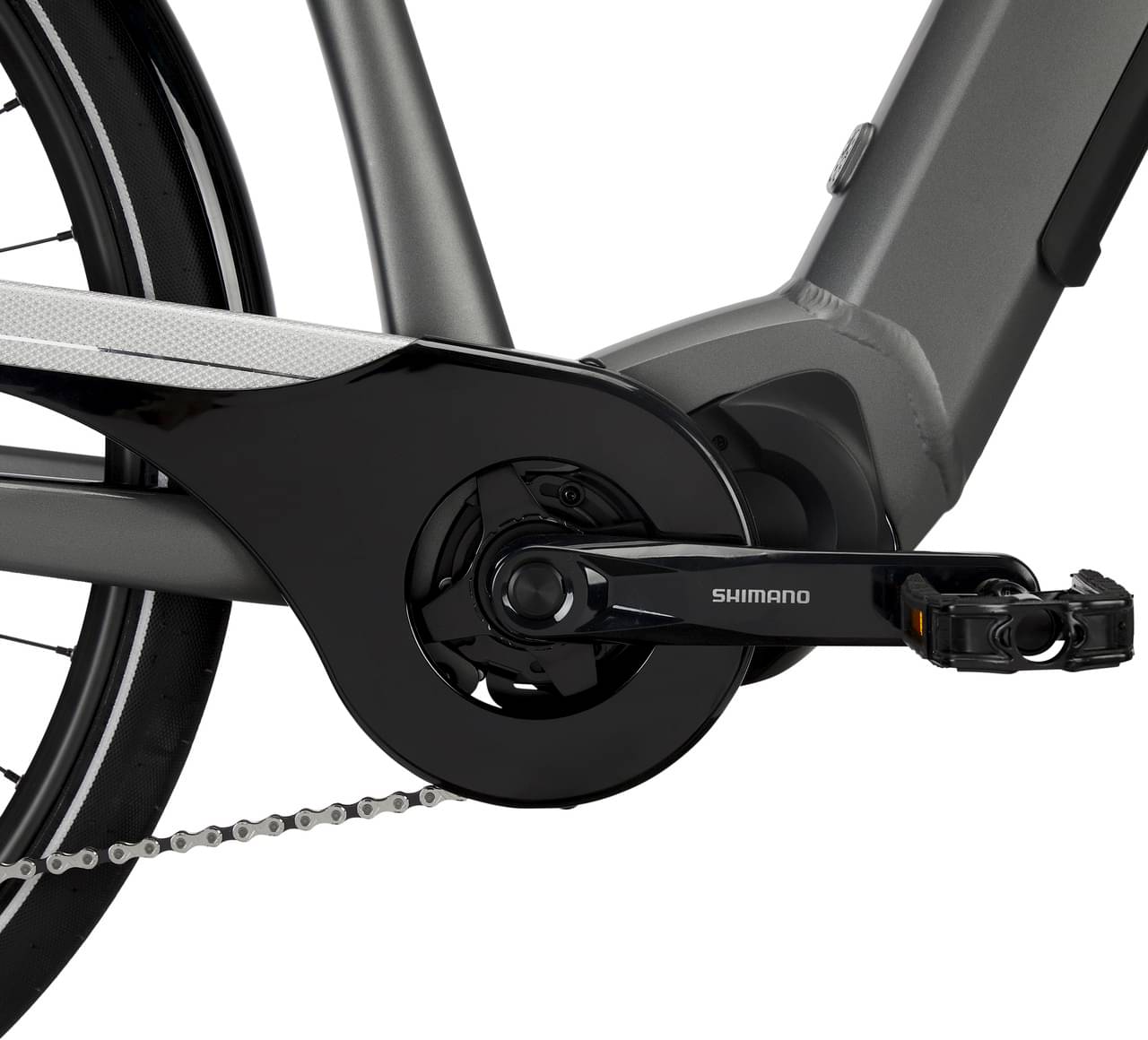

Motor
Shimano DU-E5000

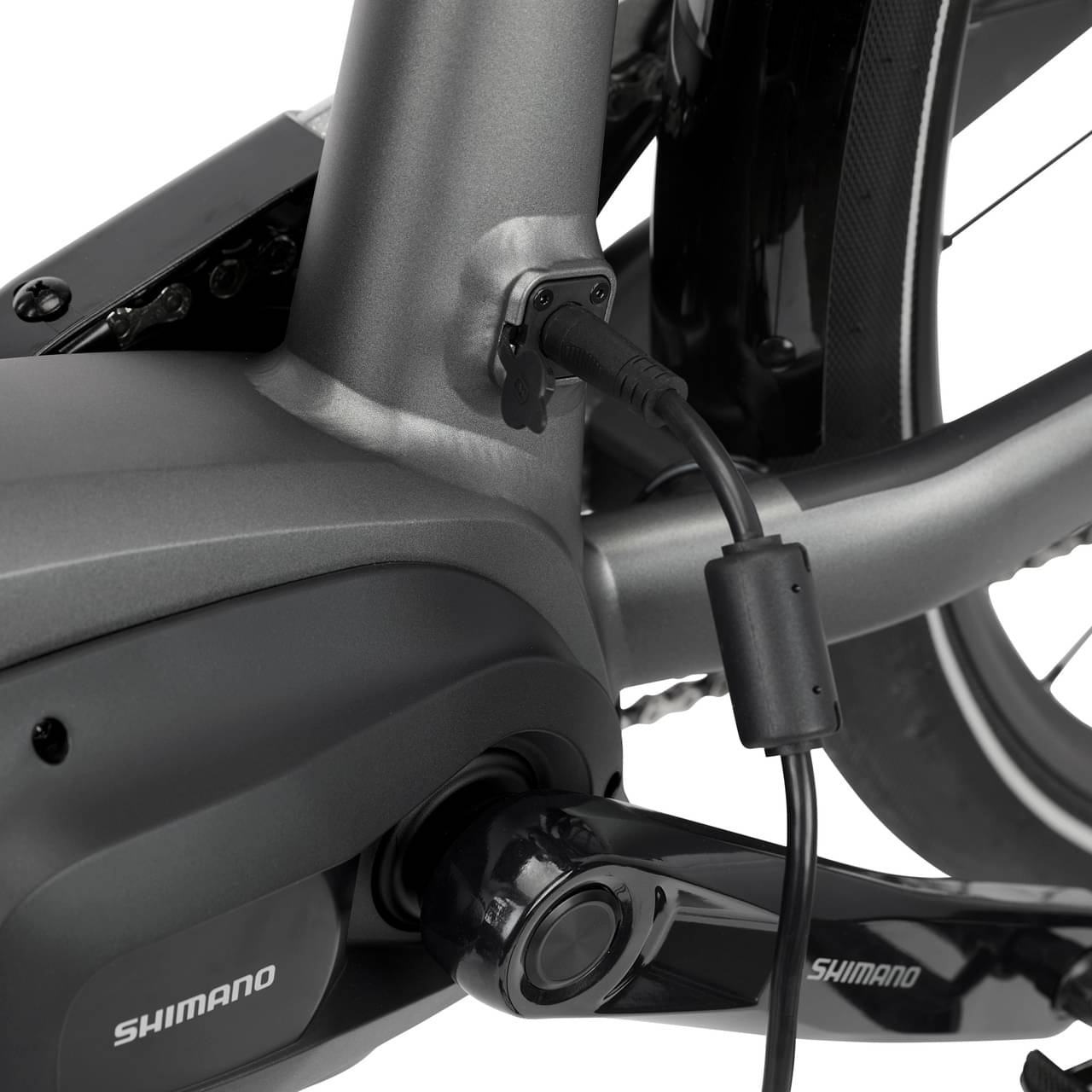

Battery
Darfon E4
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.534 mm | 1.537 mm | 1.496 mm | 1.462 mm | 1.427 mm |
| Front Center | 670 mm | 675 mm | 696 mm | 717 mm | 737 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 89 mm | 87 mm | 87 mm | 87 mm | 87 mm |
| Stack | 615 mm | 627 mm | 636 mm | 646 mm | 655 mm |
| Reach | 401 mm | 408 mm | 425 mm | 442 mm | 459 mm |
| Top Tube Length | 590 mm | 600 mm | 620 mm | 640 mm | 660 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 430 mm | 470 mm | 510 mm | 550 mm | 590 mm |
| Head Tube Angle | 68.5 ° | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 130 mm | 140 mm | 150 mm | 160 mm | 170 mm |
| Chainstay Length | 480 mm | 480 mm | 480 mm | 480 mm | 480 mm |
| Wheelbase | 1144 mm | 1149 mm | 1170 mm | 1190 mm | 1211 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 798 mm | 812 mm | 815 mm | 818 mm | 829 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
