Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Altus -
Suspension Rigid -
Drivetrain 3 × 8 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
MEC 6061 butted aluminum
Suspension Fork
Chromoly steel

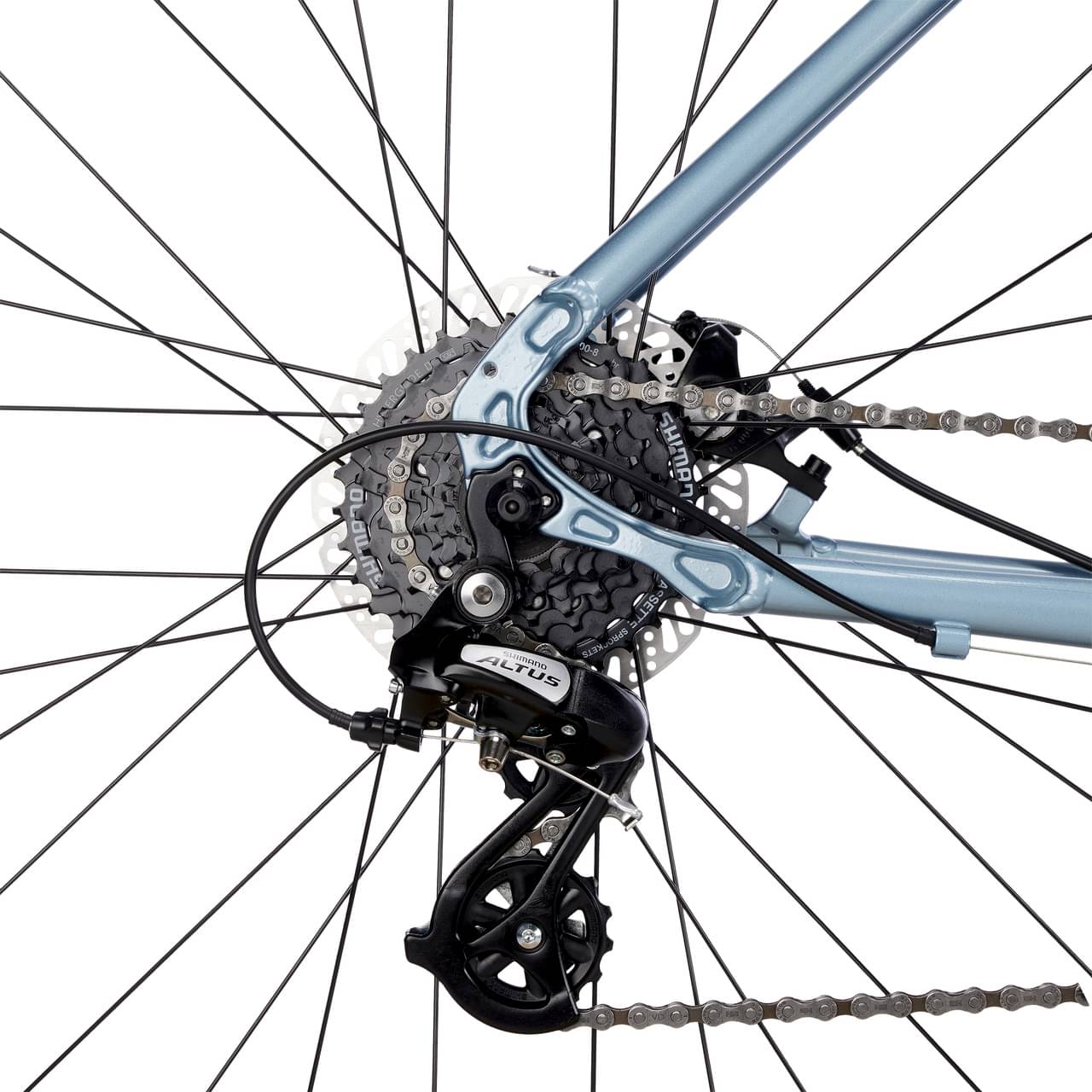

Drivetrain
Shift Levers
Shimano Altus
Cassette
Shimano HG200 8-speed 12-32T
Crank
Pro Wheel aluminum 48-38-28T
Bottom Bracket
Cartridge bearing
Chain
KMC
Pedals
Wellgo composite
Wheels
Front Hub
Formula
Rear Hub
Formula
Rims
Alex X2000
Spokes
Stainless
Tires
Kenda Kwest 700 x 38

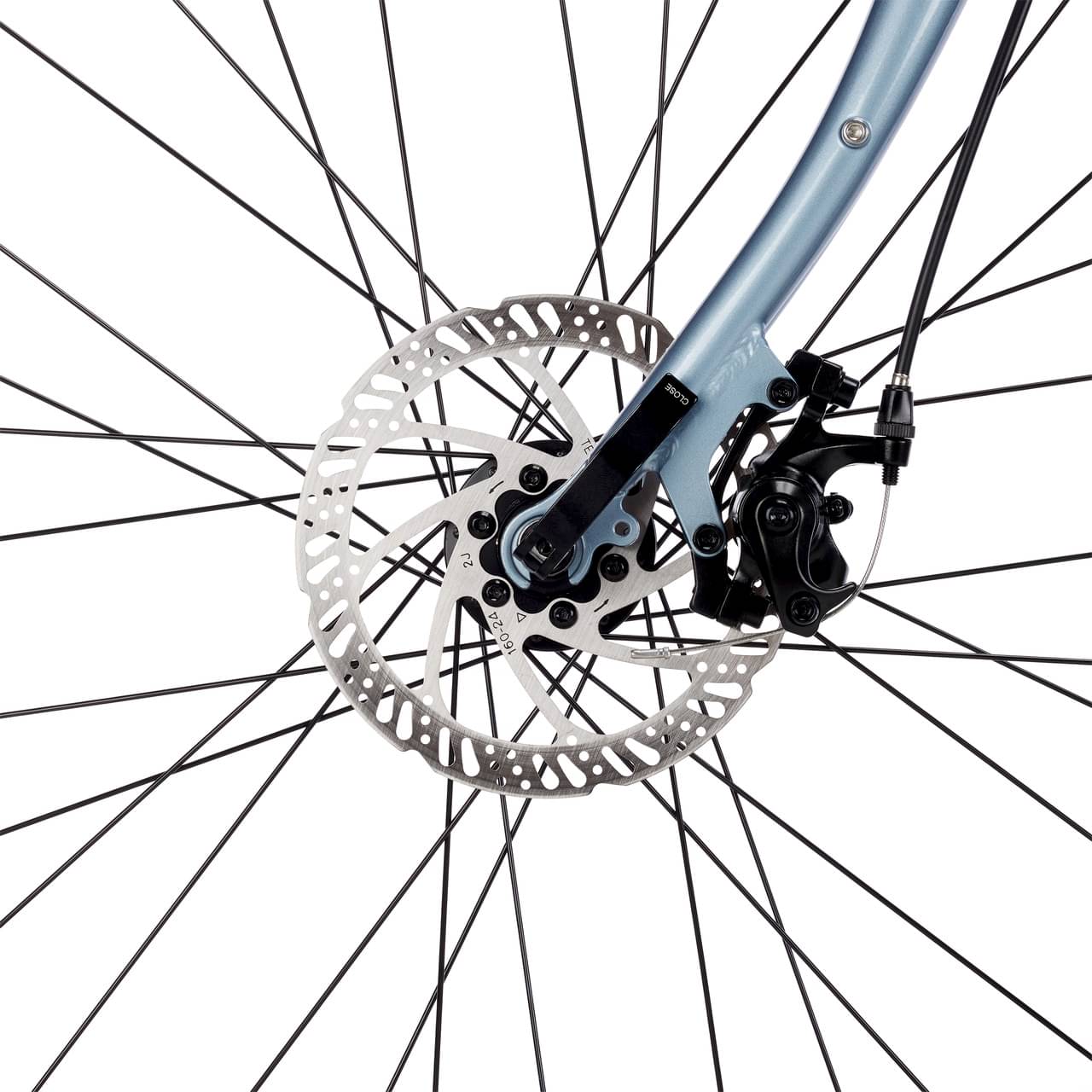

Brakes
Brakes
Tektro (mechanical disc)
Brake Levers
Tektro

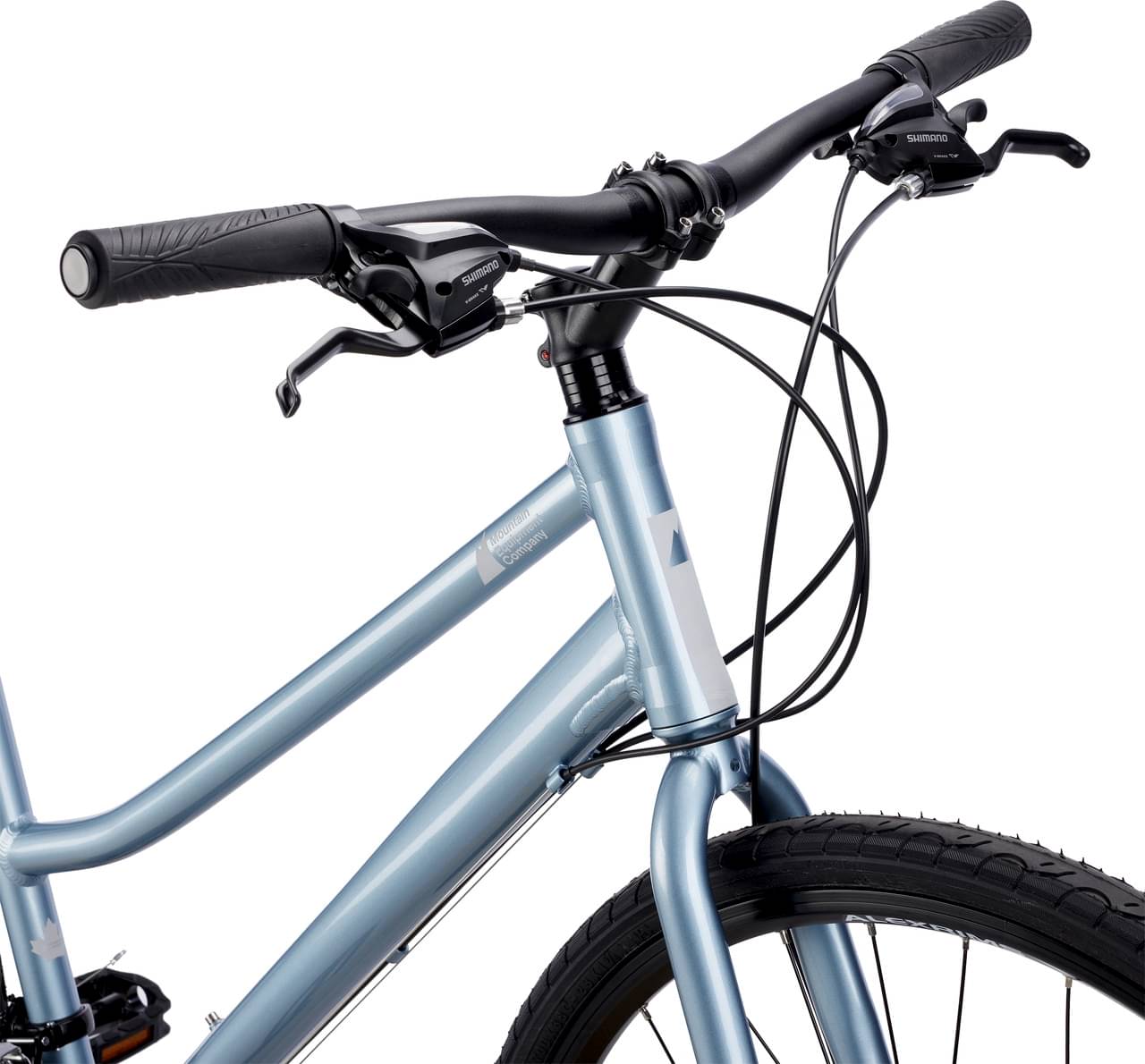

Cockpit
Stem
MEC AS-021 31.8mm
Handlebar
MEC City Riser 31.8mm
Headset
Neco H50
Seat
Saddle
Selle Royal Freccia
Seatpost
MEC aluminum
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.414 mm | 1.446 mm | 1.482 mm |
| Front Center | 630 mm | 631 mm | 641 mm |
| Rake | 45 mm | 45 mm | 45 mm |
| Trail | 86 mm | 91 mm | 86 mm |
| Stack | 553 mm | 567 mm | 581 mm |
| Reach | 391 mm | 392 mm | 392 mm |
| Top Tube Length | 550 mm | 560 mm | 570 mm |
| Seat Tube Angle | 74 ° | 73 ° | 73 ° |
| Seat Tube Length | 225 mm | 225 mm | 225 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 140 mm | 155 mm | 170 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1062 mm | 1063 mm | 1073 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
