Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Groupset GRX 400 -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Shimano GRX 400 Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Columbus Cromor steel
Suspension Fork
Chromoly steel
Drivetrain
Shift Levers
Shimano GRX 400

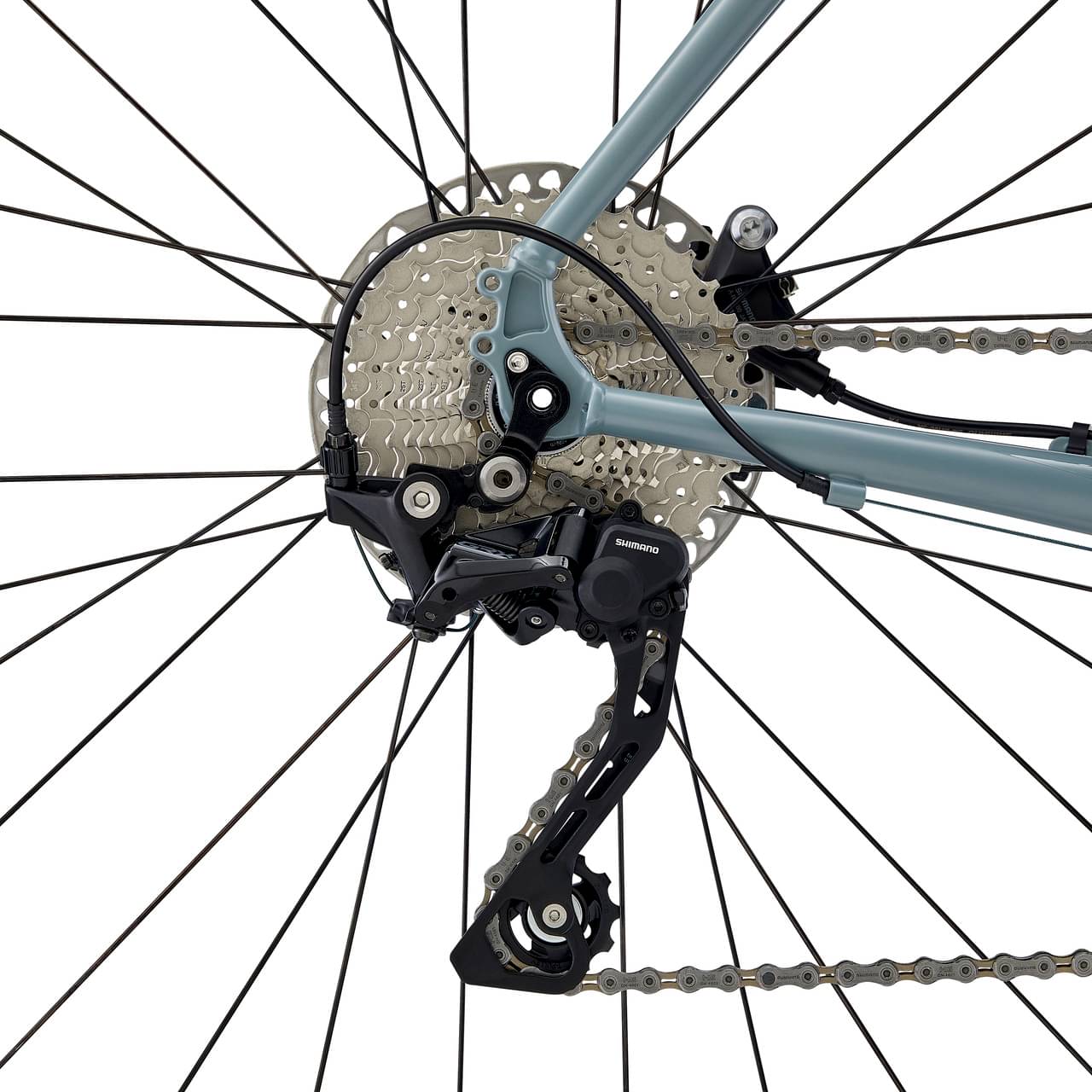

Cassette
Shimano GRX 10-speed 11-36T

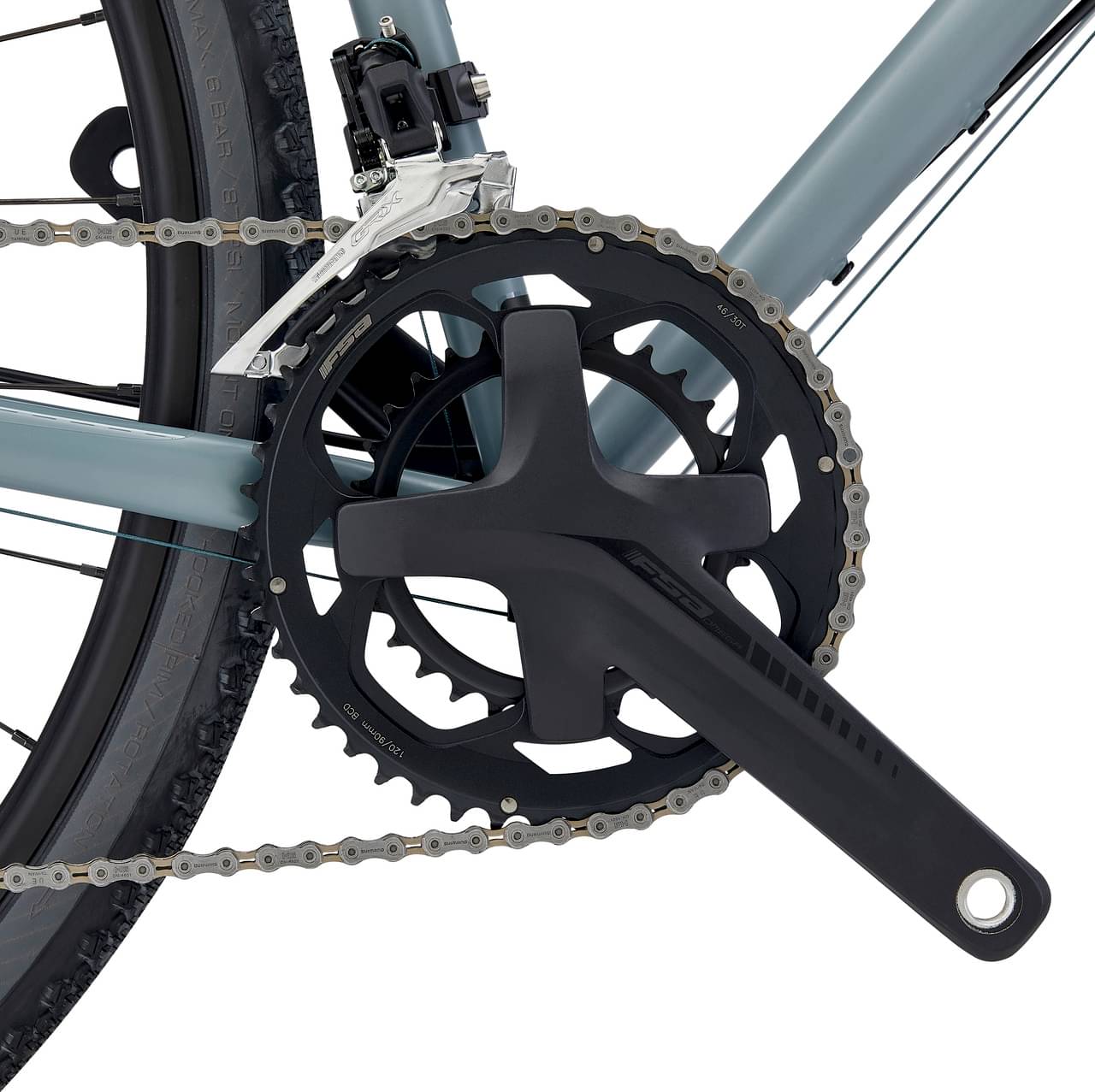

Crank
FSA Gossamer Pro 46-30T
Bottom Bracket
FSA Mega Exo
Chain
KMC
Pedals
Sold separately
Wheels
Front Hub
Shimano RS470
Rear Hub
Shimano RS470
Rims
WTB ST i23 TCS
Spokes
DT Champion
Tires
Vittoria Terreno Dry 700 x 40
Brakes

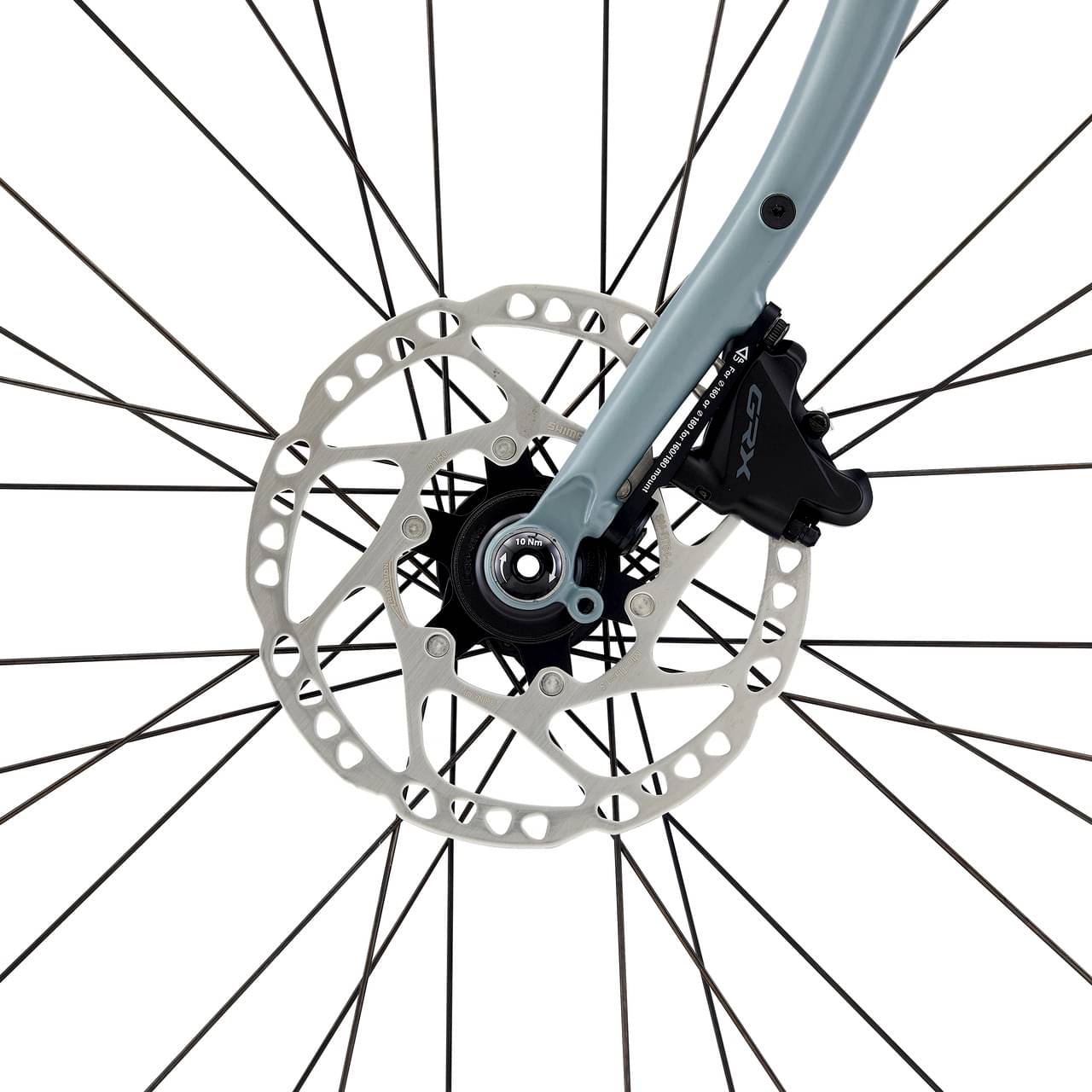

Brakes
Shimano GRX 400 (hydraulic disc)
Brake Levers
Shimano GRX 400

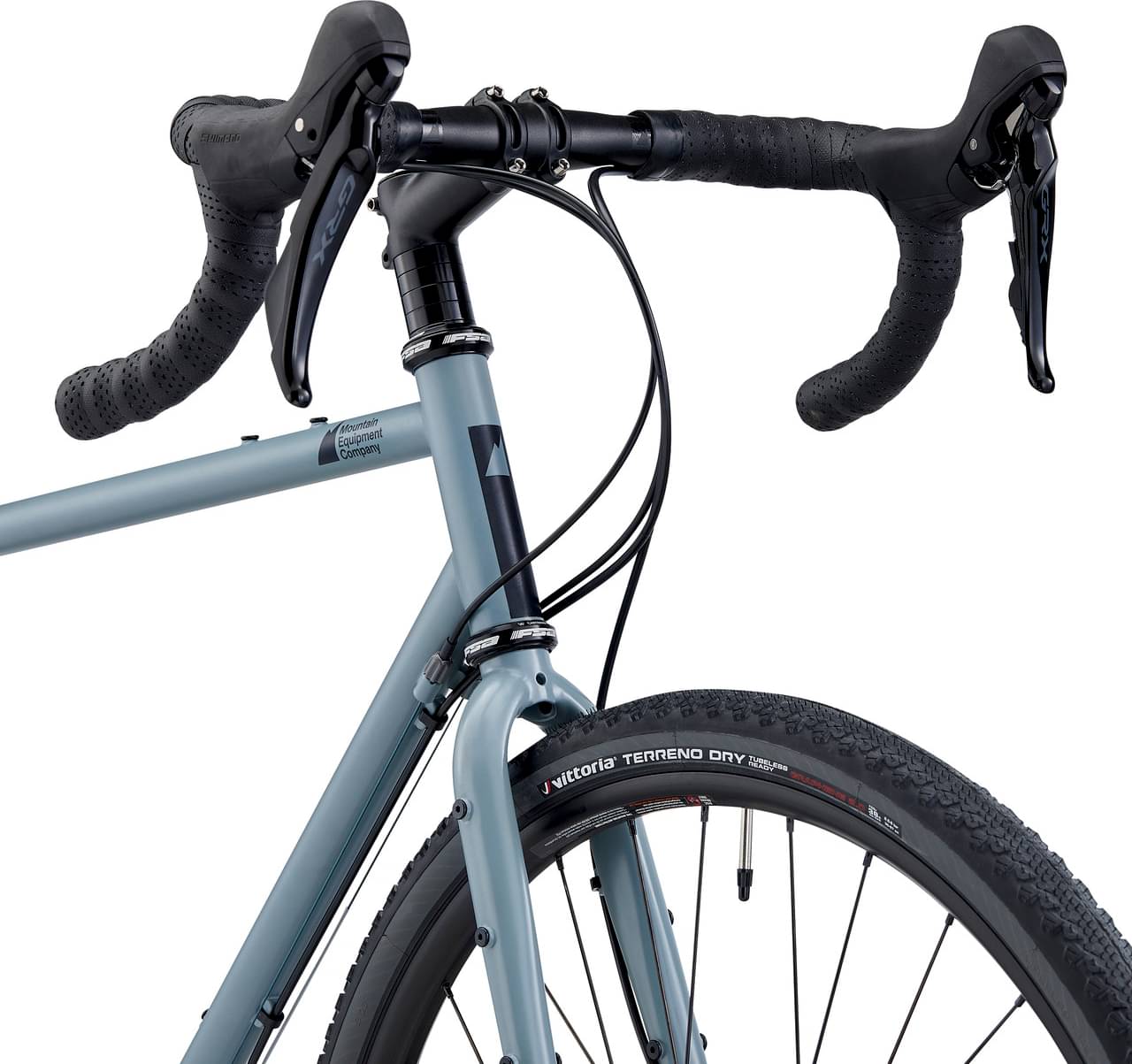

Cockpit
Stem
MEC 31.8mm
Handlebar
MEC Adventure 31.8mm
Headset
FSA Orbit MX
Seat
Saddle
Fizik Terra Alpaca X5
Seatpost
MEC aluminum
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.391 mm | 1.407 mm | 1.462 mm | 1.467 mm | 1.518 mm | 1.523 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 592 mm | 598 mm | 599 mm | 615 mm | 615 mm | 634 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 73 mm | 72 mm | 70 mm | 67 mm | 65 mm | 63 mm |
| Stack | 527 mm | 536 mm | 557 mm | 578 mm | 598 mm | 617 mm |
| Reach | 379 mm | 381 mm | 381 mm | 394 mm | 394 mm | 405 mm |
| Top Tube Length | 525 mm | 530 mm | 545 mm | 565 mm | 575 mm | 600 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 73.5 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 400 mm | 430 mm | 460 mm | 490 mm | 520 mm | 550 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 71 ° | 71.5 ° | 72 ° | 72 ° |
| Head Tube Length | 90 mm | 100 mm | 120 mm | 140 mm | 160 mm | 180 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1012 mm | 1018 mm | 1020 mm | 1035 mm | 1035 mm | 1054 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 718 mm | 737 mm | 761 mm | 785 mm | 809 mm | 832 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
