Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Apex -
Suspension Rigid -
Drivetrain 1 × 12 -
Brakes SRAM Apex Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
MEC tapered 6061 aluminum
Suspension Fork
Carbon with aluminum steerer
Drivetrain
Shift Levers
SRAM Apex

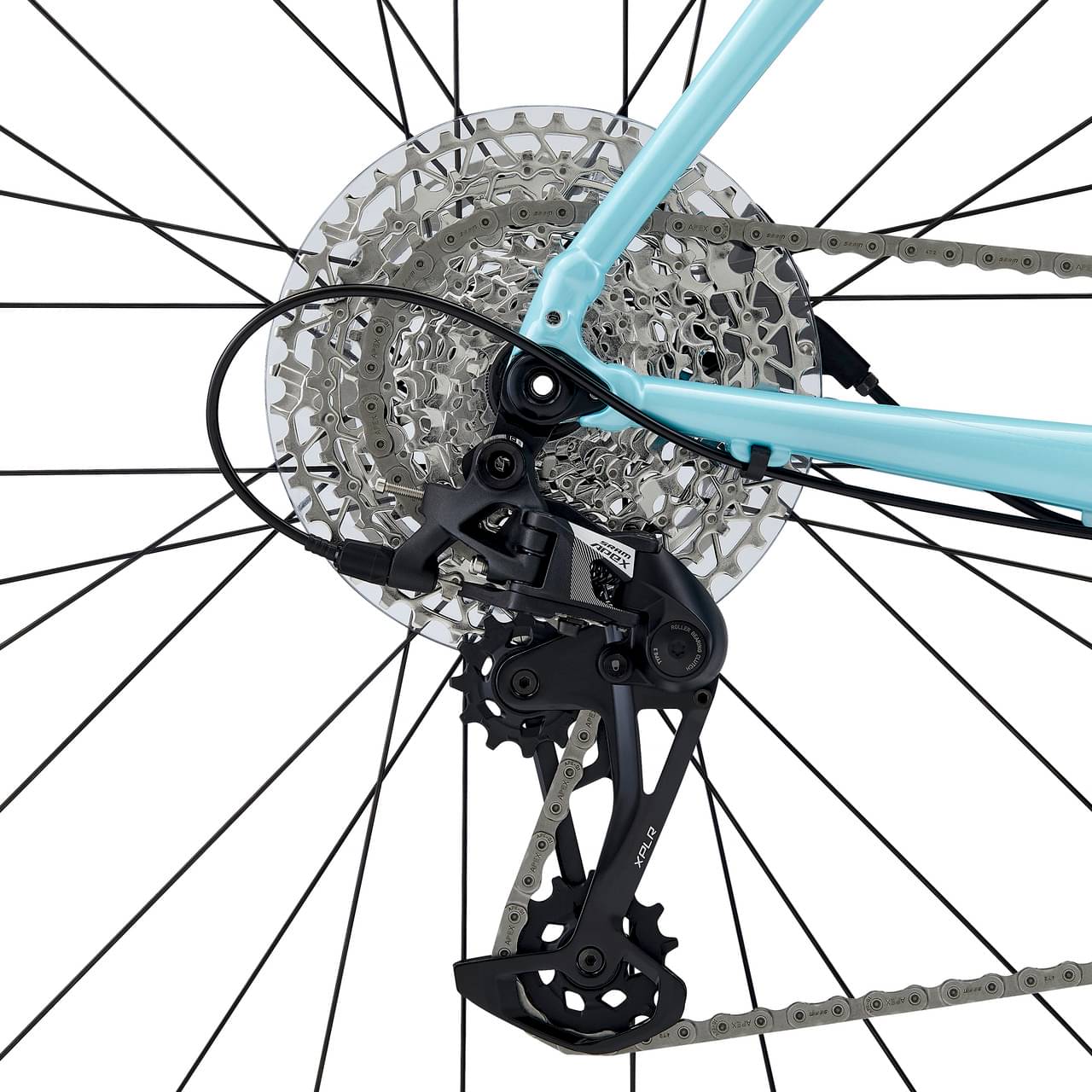

Cassette
SRAM PG 1231 XPLR 12-speed 11-44T

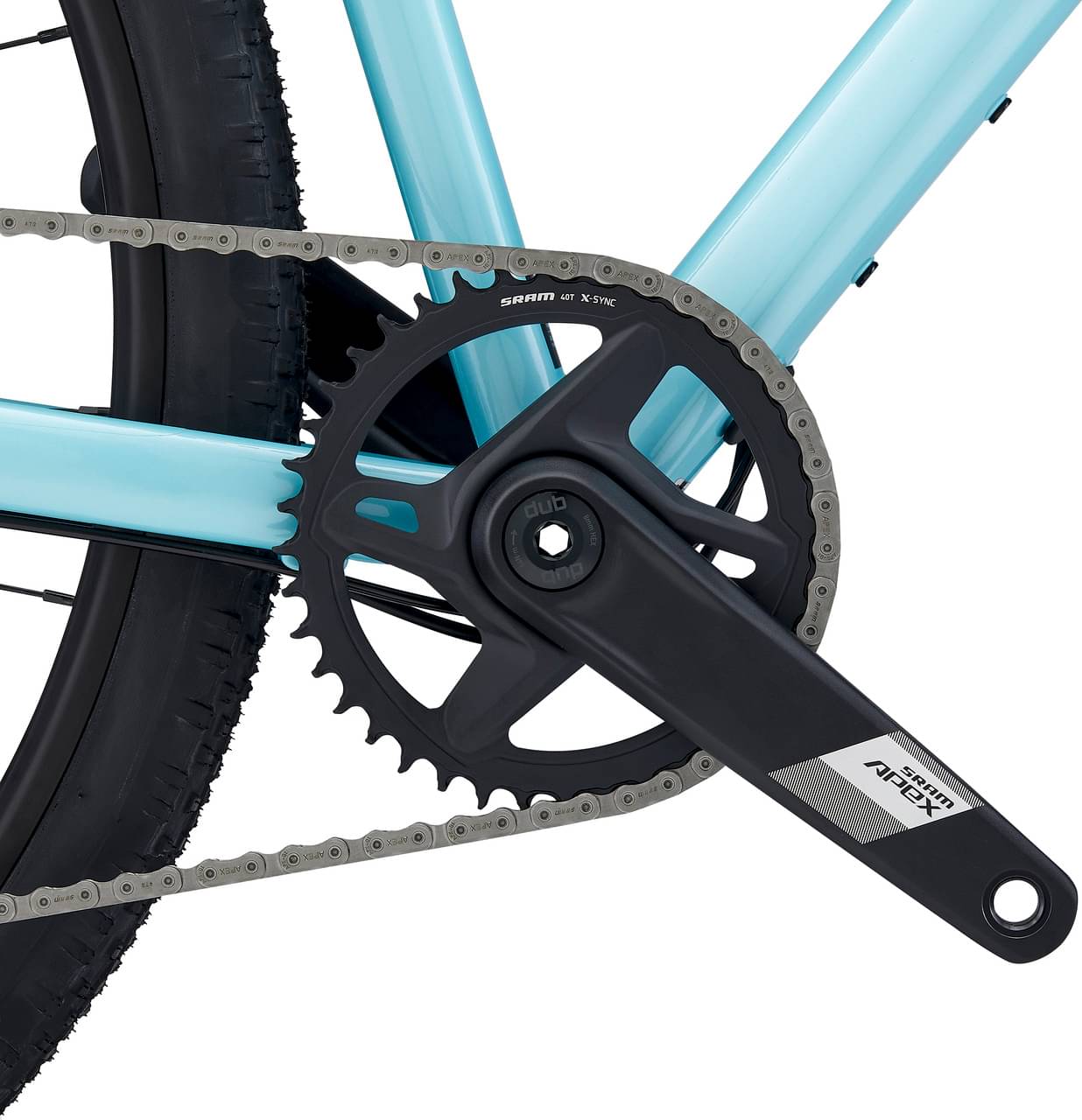

Crank
SRAM Apex 40T
Bottom Bracket
SRAM BB BSA
Chain
SRAM APEX
Pedals
Sold separately
Wheels
Front Hub
Formula CL-712
Rear Hub
Formula RX-142
Rims
WTB ST i23 TCS
Spokes
DT Champion
Tires
WTB Resolute Comp 700 x 42

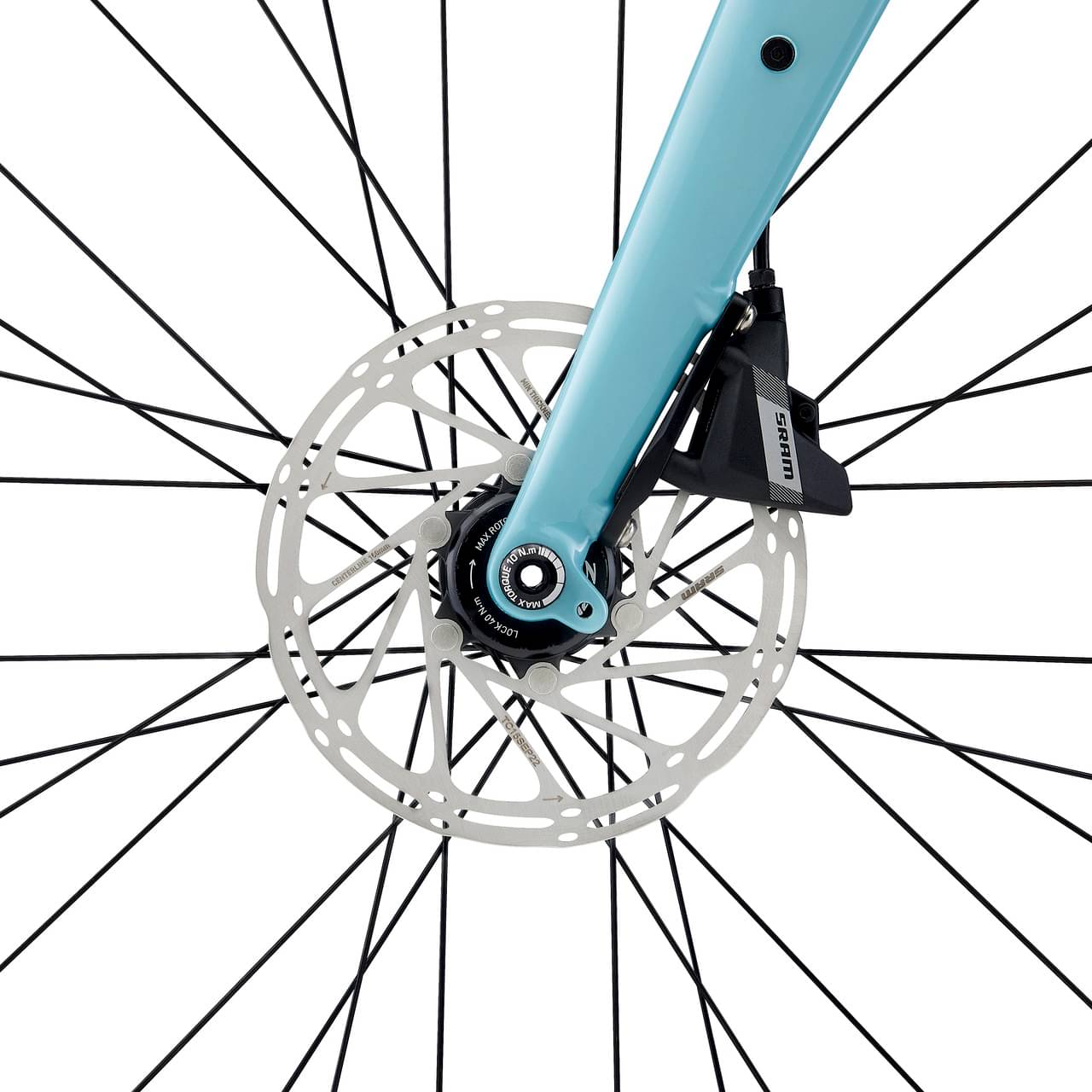

Brakes
Brakes
SRAM Apex (hydraulic disc)
Brake Levers
SRAM Apex

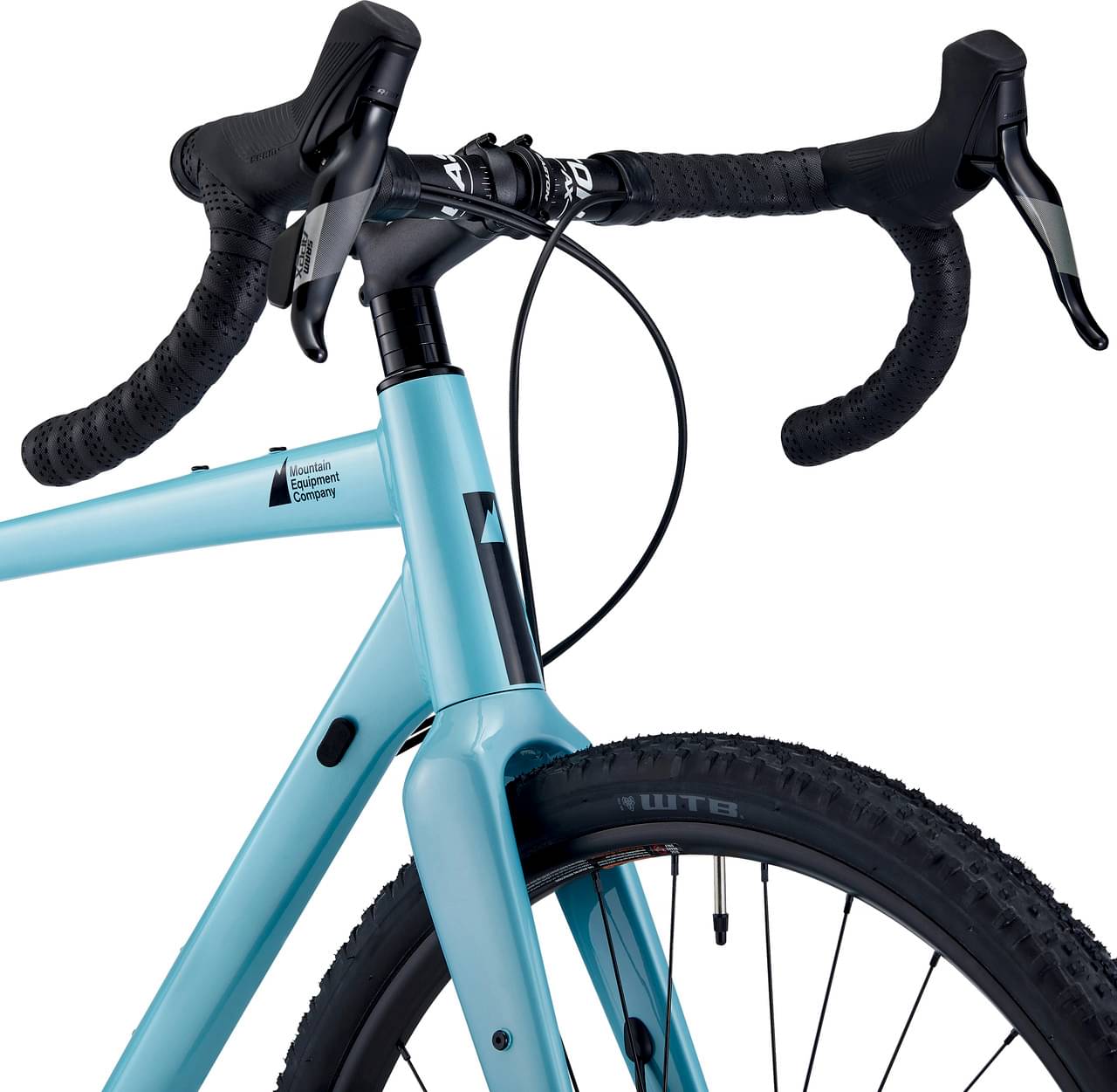

Cockpit
Stem
Easton EA50 31.8mm
Handlebar
Easton EA50 31.8mm
Headset
FSA NO. 42-ACB
Seat
Saddle
Fizik Terra Alpaca X5
Seatpost
MEC carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.409 mm | 1.451 mm | 1.483 mm | 1.512 mm | 1.548 mm | 1.557 mm |
| Bottom Bracket Height | 279 mm | 279 mm | 279 mm | 279 mm | 279 mm | 279 mm |
| Front Center | 595 mm | 595 mm | 604 mm | 620 mm | 625 mm | 645 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Stack | 527 mm | 544 mm | 562 mm | 588 mm | 607 mm | 626 mm |
| Reach | 374 mm | 375 mm | 379 mm | 389 mm | 392 mm | 402 mm |
| Top Tube Length | 525 mm | 530 mm | 545 mm | 565 mm | 575 mm | 600 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 400 mm | 430 mm | 460 mm | 490 mm | 520 mm | 550 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 70.5 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 105 mm | 120 mm | 140 mm | 165 mm | 185 mm | 205 mm |
| Wheelbase | 1025 mm | 1025 mm | 1035 mm | 1051 mm | 1056 mm | 1056 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 734 mm | 734 mm | 784 mm | 811 mm | 836 mm | 860 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
