Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset CUES -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
MEC tapered 6061 aluminum
Suspension Fork
Carbon with aluminum steerer

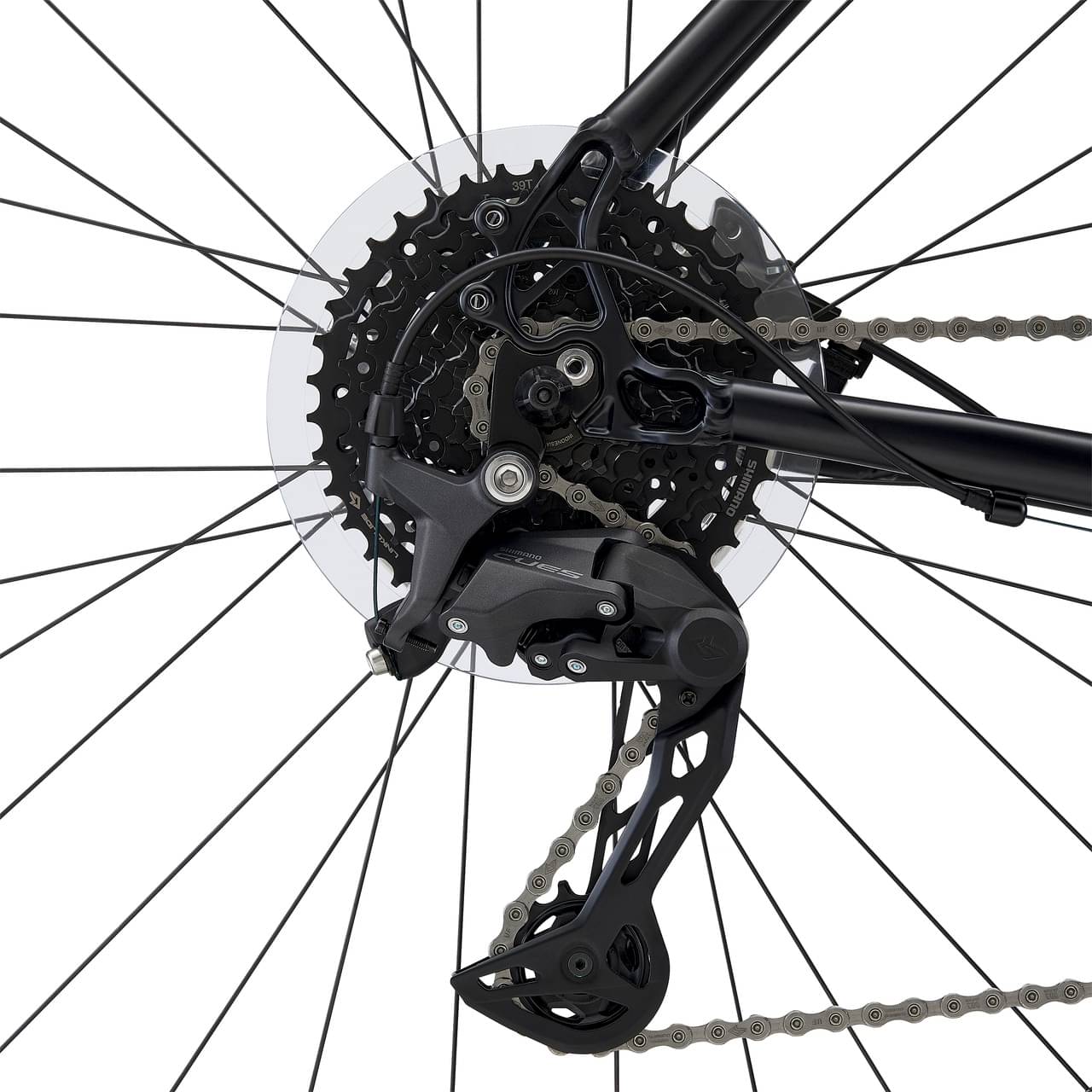

Drivetrain
Shift Levers
Shimano Cues 6000
Cassette
Shimano Cues 10-speed 11-39T

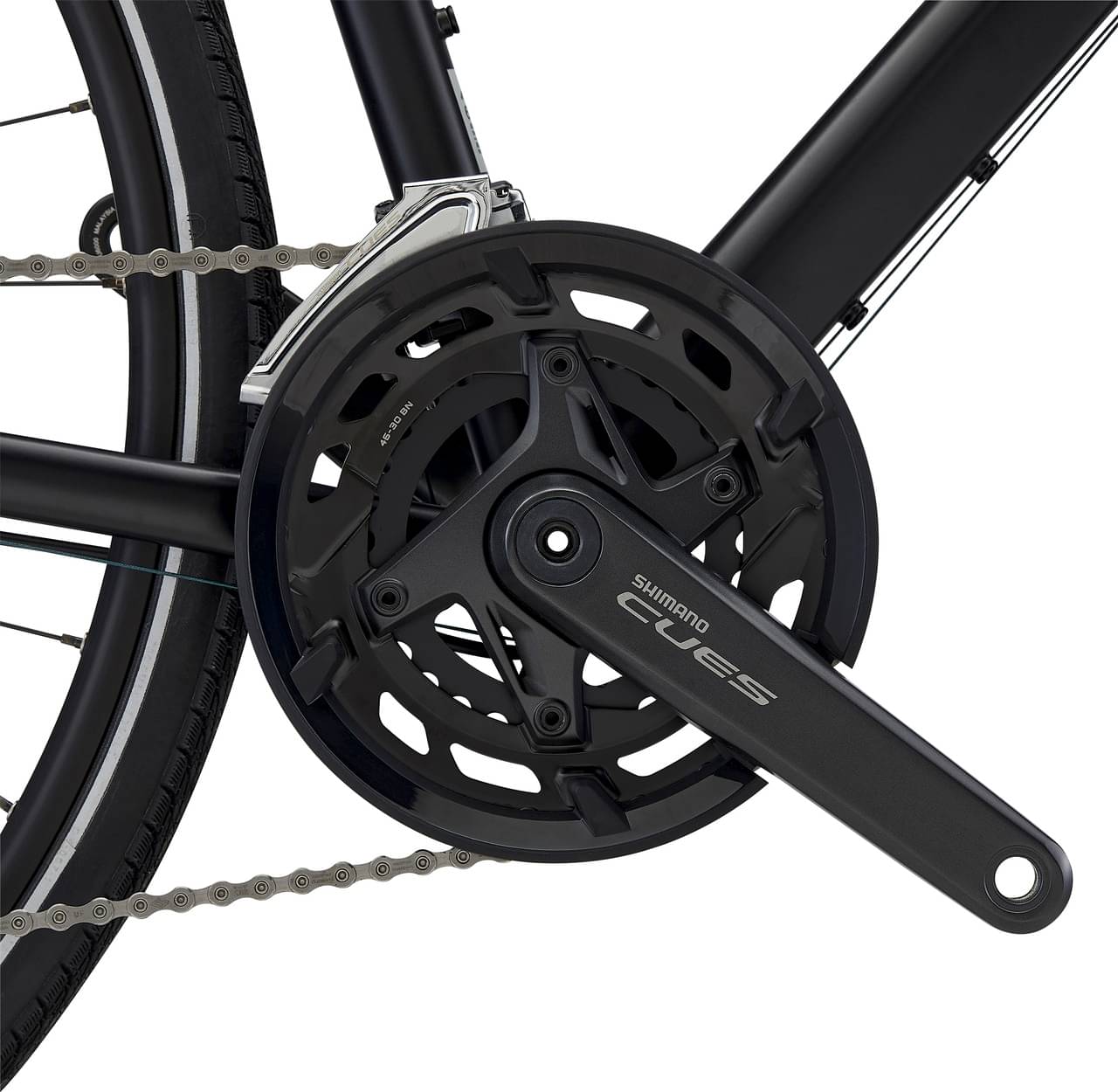

Crank
Shimano Cues 46-30T
Bottom Bracket
Shimano Deore
Chain
Shimano LG500
Pedals
Sold separately
Wheels
Front Hub
Formula CL-25
Rear Hub
Formula CL-26
Rims
Alex MD19
Spokes
DT Champion
Tires
Goodyear Transit Tour 700 x 35

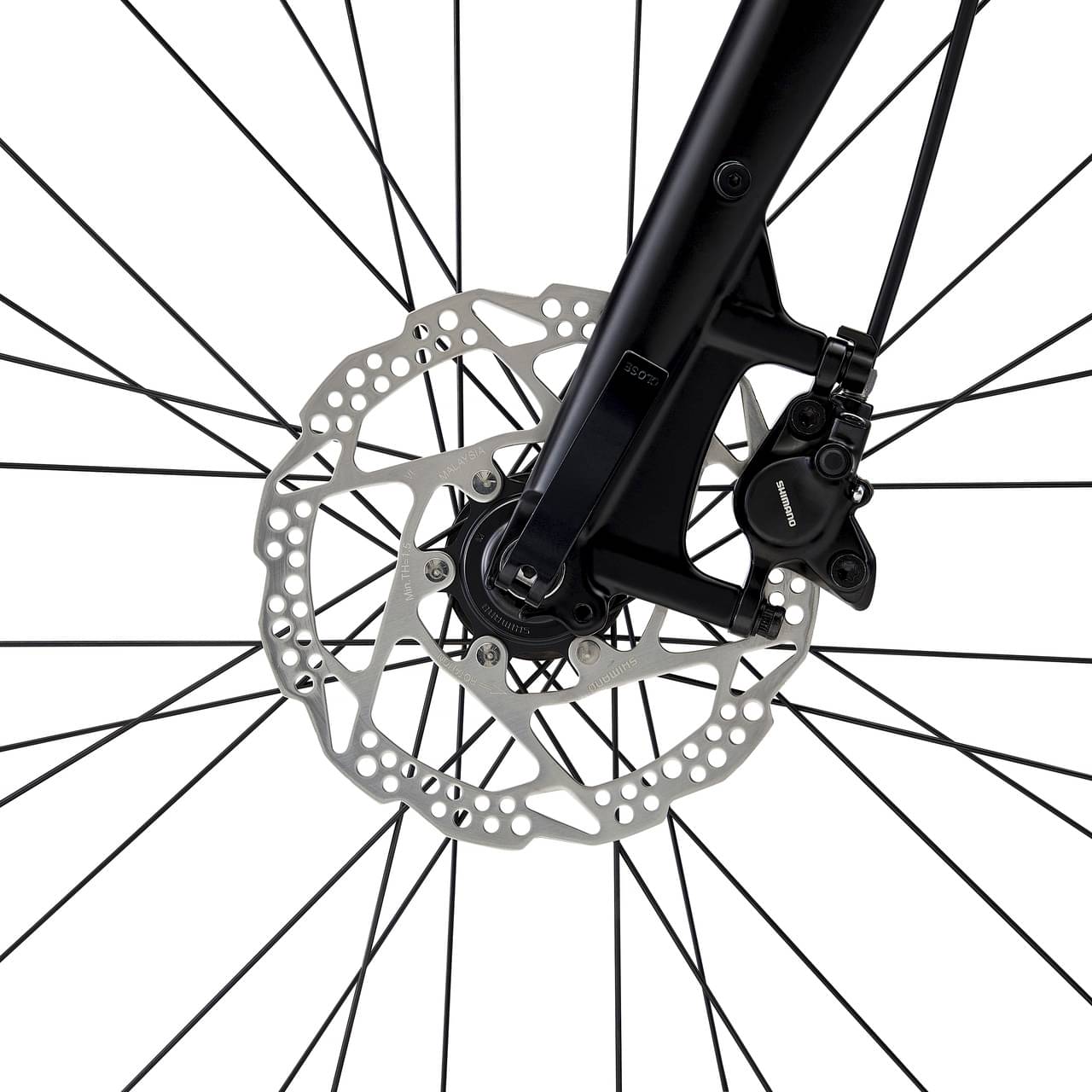

Brakes
Brakes
Shimano MT200 (hydraulic disc)
Brake Levers
Shimano MT200 Disc

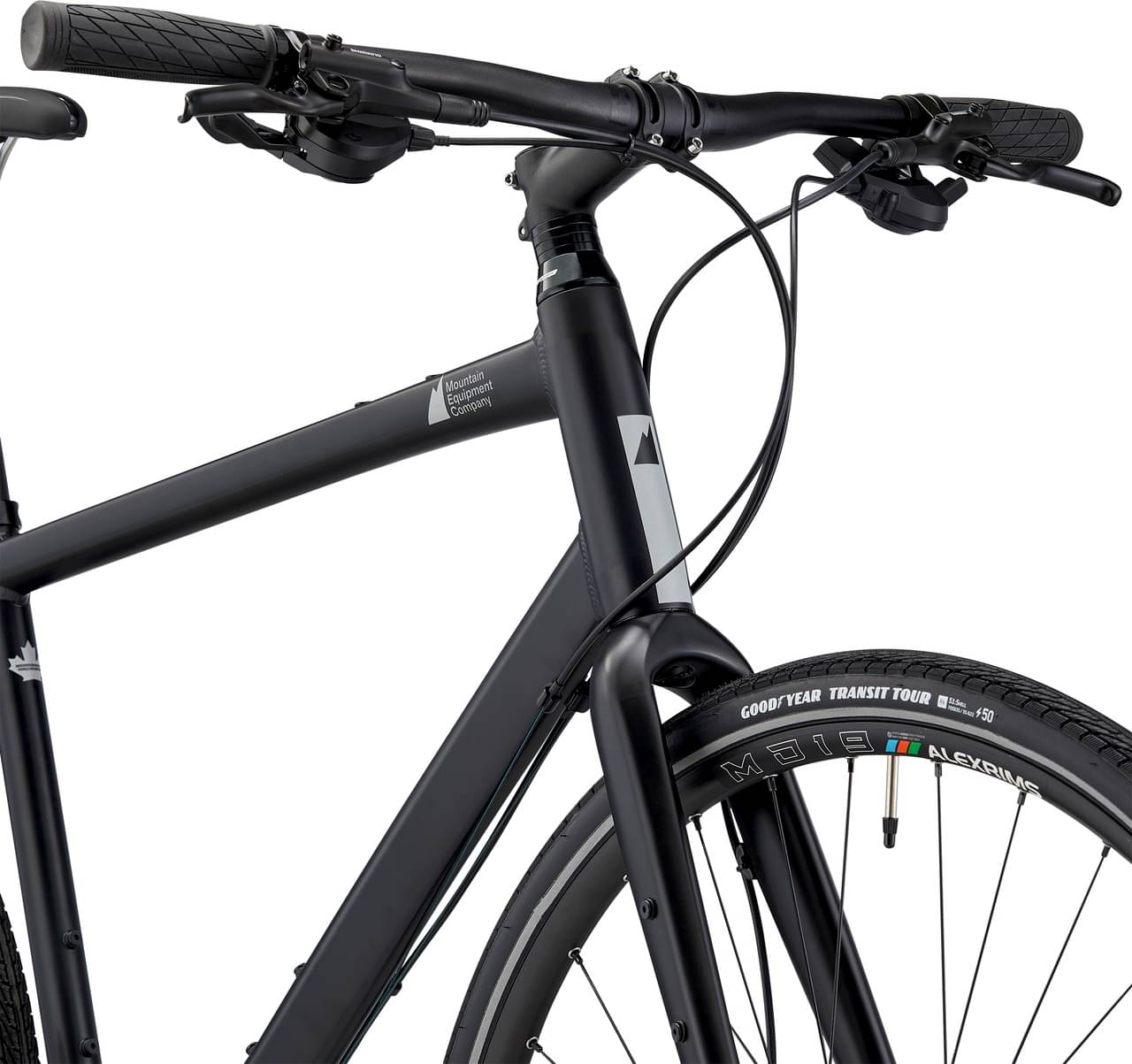

Cockpit
Stem
MEC Performance 31.8mm 7°
Handlebar
MEC Performance Low-Riser 31.8mm
Headset
FSA NO. 23/CC Integrated
Seat
Saddle
MEC Classic
Seatpost
MEC aluminum
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.411 mm | 1.443 mm | 1.478 mm |
| Front Center | 630 mm | 637 mm | 641 mm |
| Rake | 45 mm | 45 mm | 45 mm |
| Trail | 87 mm | 87 mm | 87 mm |
| Stack | 553 mm | 567 mm | 581 mm |
| Reach | 392 mm | 393 mm | 393 mm |
| Top Tube Length | 550 mm | 560 mm | 570 mm |
| Seat Tube Angle | 75 ° | 74 ° | 73 ° |
| Seat Tube Length | 240 mm | 240 mm | 240 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 140 mm | 155 mm | 170 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1062 mm | 1068 mm | 1073 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
