mec Skyway 1 StepThrough Hybrid 2025
2025 Urban
Estimate price |
470$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Tourney, Altus -
Suspension Rigid -
Drivetrain 2 × 8 -
Brakes Tektro Mechanical Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
MEC 6061 butted aluminum
Suspension Fork
Chromoly steel
Drivetrain
Shift Levers
Shimano Altus
Cassette
Shimano HG400 8-speed 11-40T

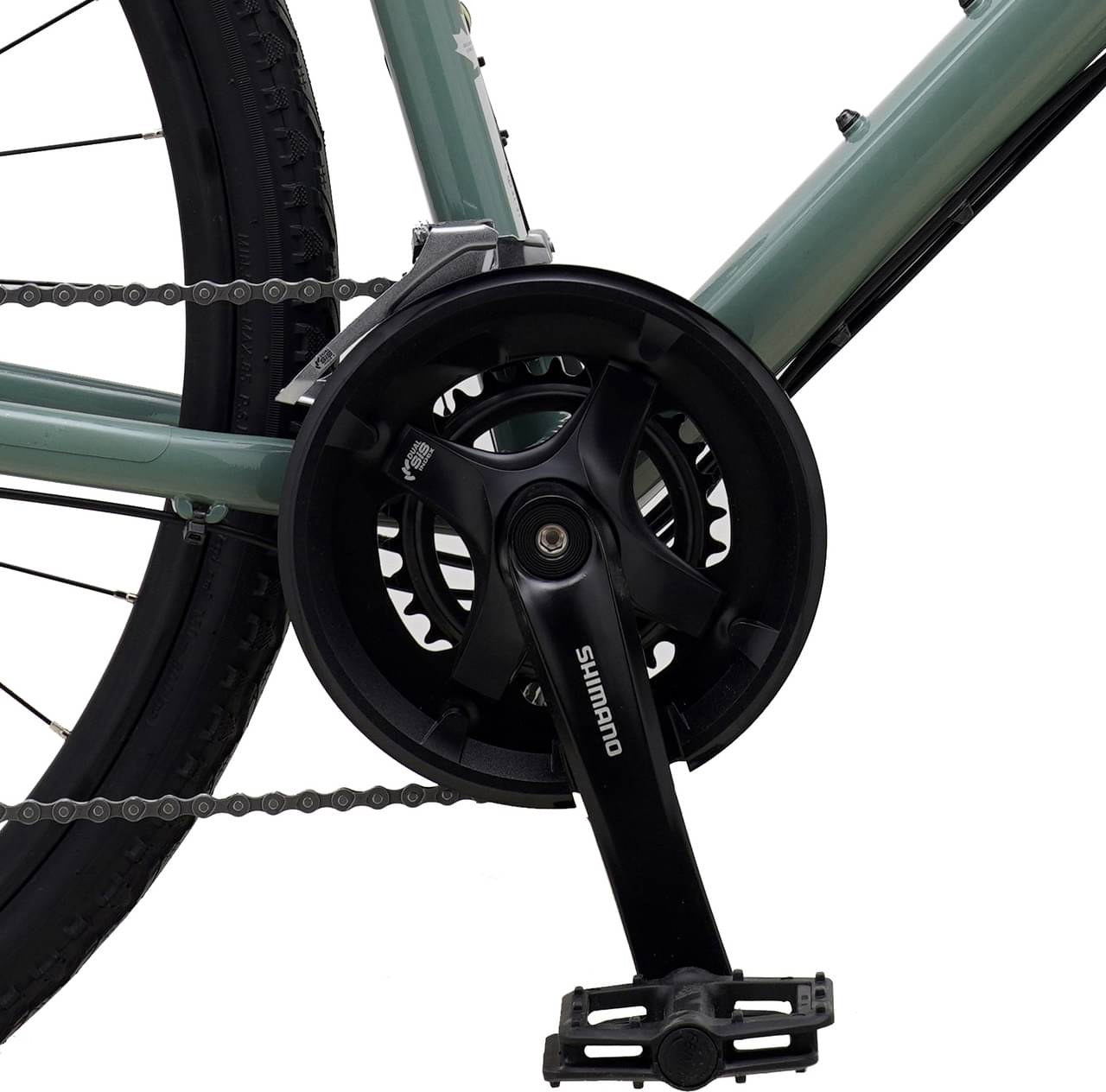

Crank
Shimano Tourney 46-30T
Bottom Bracket
Shimano BB-UN300
Chain
KMC Z8
Pedals
Plastic flats
Wheels
Front Hub
Joytech Disc
Rear Hub
Joytech Disc
Rims
Alloy double wall
Spokes
Stainless
Tires
Kenda Khan 700 x 40
Brakes
Brakes
Tektro (mechanical disc)
Brake Levers
Tektro
Cockpit
Stem
MEC AS-021 31.8mm
Handlebar
MEC City Riser 31.8mm
Headset
FSA Orbit
Seat
Saddle
Velo
Seatpost
Alloy 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.407 mm | 1.407 mm | 1.4 mm |
| Front Center | 623 mm | 640 mm | 655 mm |
| Rake | 50 mm | 50 mm | 50 mm |
| Trail | 85 mm | 85 mm | 86 mm |
| Stack | 546 mm | 560 mm | 574 mm |
| Reach | 388 mm | 398 mm | 410 mm |
| Top Tube Length | 550 mm | 565 mm | 580 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 230 mm | 230 mm | 230 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 140 mm | 155 mm | 170 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1054 mm | 1070 mm | 1086 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
