Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset CUES -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
MEC 6061 butted aluminum
Suspension Fork
Chromoly steel
Drivetrain
Shift Levers
Shimano Cues 6000
Cassette
Shimano CS-LG300 10-speed 11-39T

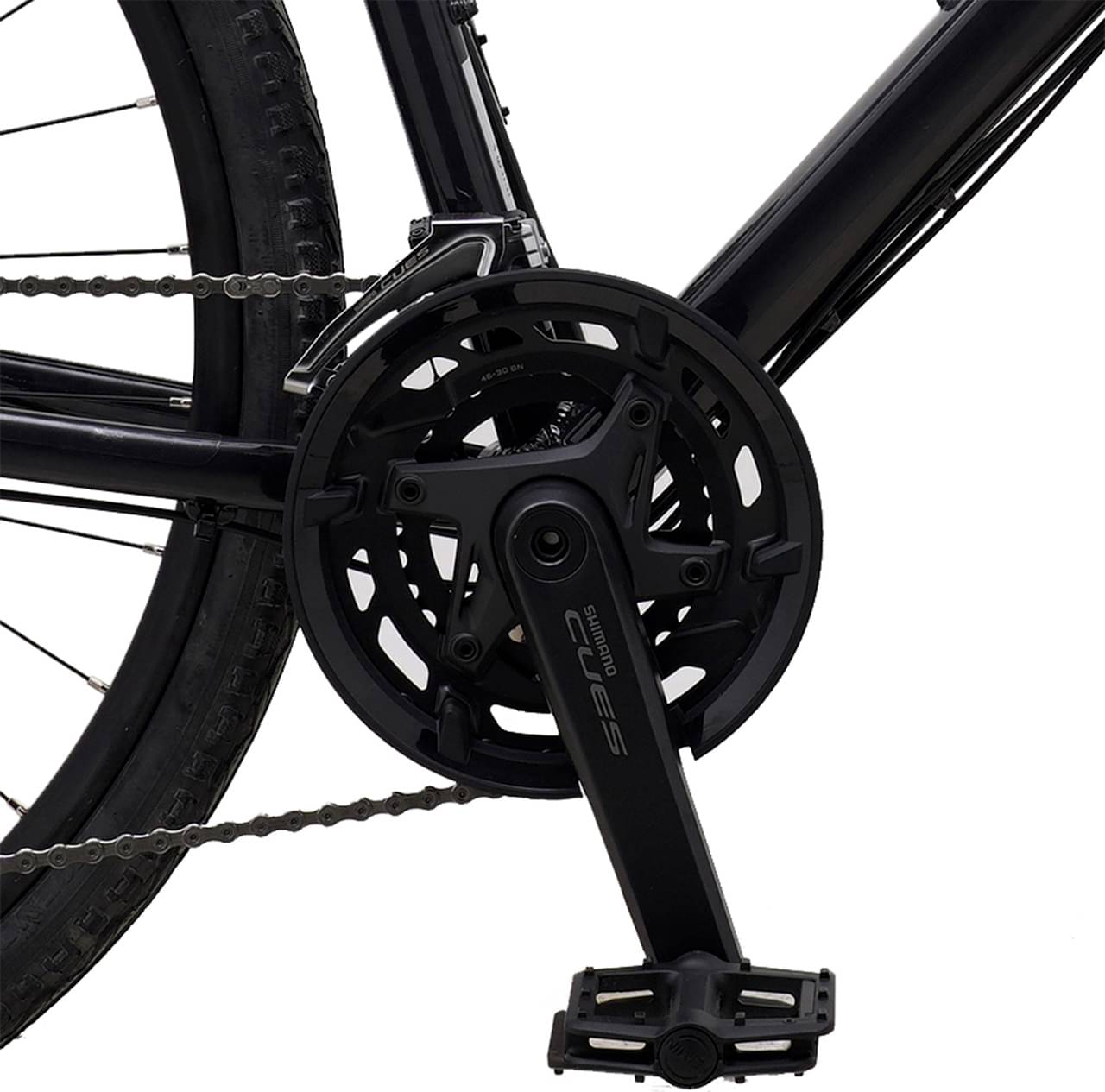

Crank
Shimano Cues 46-30T
Bottom Bracket
Shimano BB-UN300
Chain
Shimano LG500
Pedals
Plastic flats
Wheels
Front Hub
Joytech Disc
Rear Hub
Joytech Disc
Rims
Alloy double wall
Spokes
Stainless
Tires
Kenda Khan 700 x 40
Brakes
Brakes
Shimano BR-MT201 (hydraulic disc)
Brake Levers
Shimano MT201 Disc
Cockpit
Stem
MEC AS-021 31.8mm
Handlebar
MEC City Riser 31.8mm
Headset
FSA Orbit
Seat
Saddle
Velo
Seatpost
Alloy 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.393 mm | 1.421 mm | 1.474 mm | 1.499 mm | 1.514 mm |
| Front Center | 618 mm | 618 mm | 631 mm | 642 mm | 652 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 79 mm | 83 mm | 76 mm | 75 mm | 68 mm |
| Stack | 546 mm | 560 mm | 585 mm | 604 mm | 627 mm |
| Reach | 392 mm | 394 mm | 397 mm | 403 mm | 414 mm |
| Top Tube Length | 540 mm | 550 mm | 570 mm | 585 mm | 600 mm |
| Seat Tube Angle | 75 ° | 74 ° | 73.5 ° | 73 ° | 73.5 ° |
| Seat Tube Length | 400 mm | 430 mm | 460 mm | 490 mm | 520 mm |
| Head Tube Angle | 70 ° | 70 ° | 70.5 ° | 70.5 ° | 71.5 ° |
| Head Tube Length | 135 mm | 150 mm | 175 mm | 195 mm | 215 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1048 mm | 1050 mm | 1061 mm | 1075 mm | 1083 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
