Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Fork Suntour XCT -
Groupset Shimano -
Suspension Hardtail -
Brakes Tektro Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
MEC tapered 6061 aluminum
Suspension Fork
SR SunTour XCT-JR 24
Drivetrain
Shift Levers
Shimano Rapid Fire Plus
Cassette
Shimano HG200 8-speed 12-32T

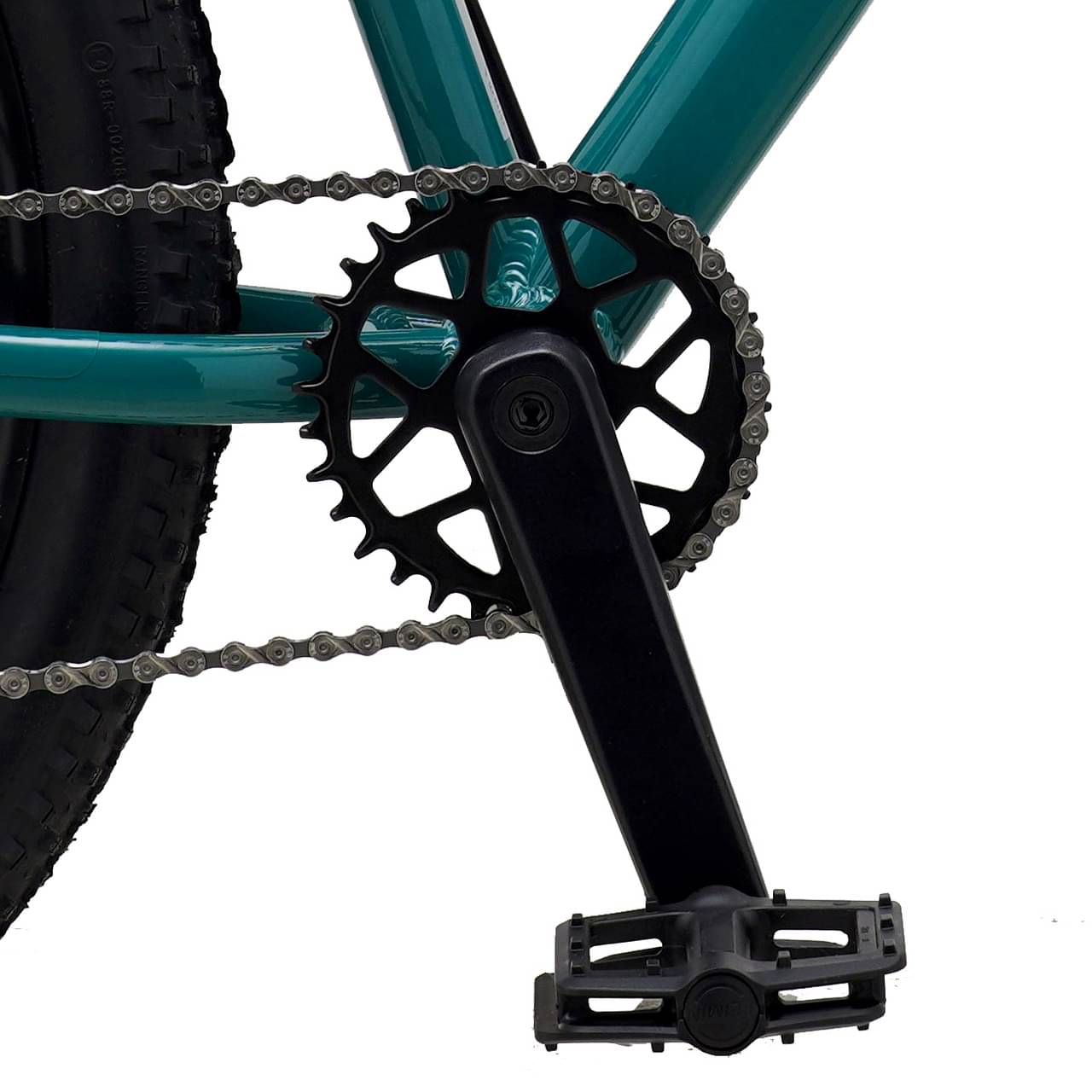

Crank
Alu Single Speed
Bottom Bracket
Cartridge bearing
Chain
KMC Z8
Pedals
Wellgo composite
Wheels
Front Hub
Joytech Disc
Rear Hub
Joytech Disc
Rims
Alloy single wall
Spokes
Stainless
Tires
WTB Ranger 20 x 2.25
Brakes
Brakes
Tektro (hydraulic disc)
Brake Levers
Tektro Jr.

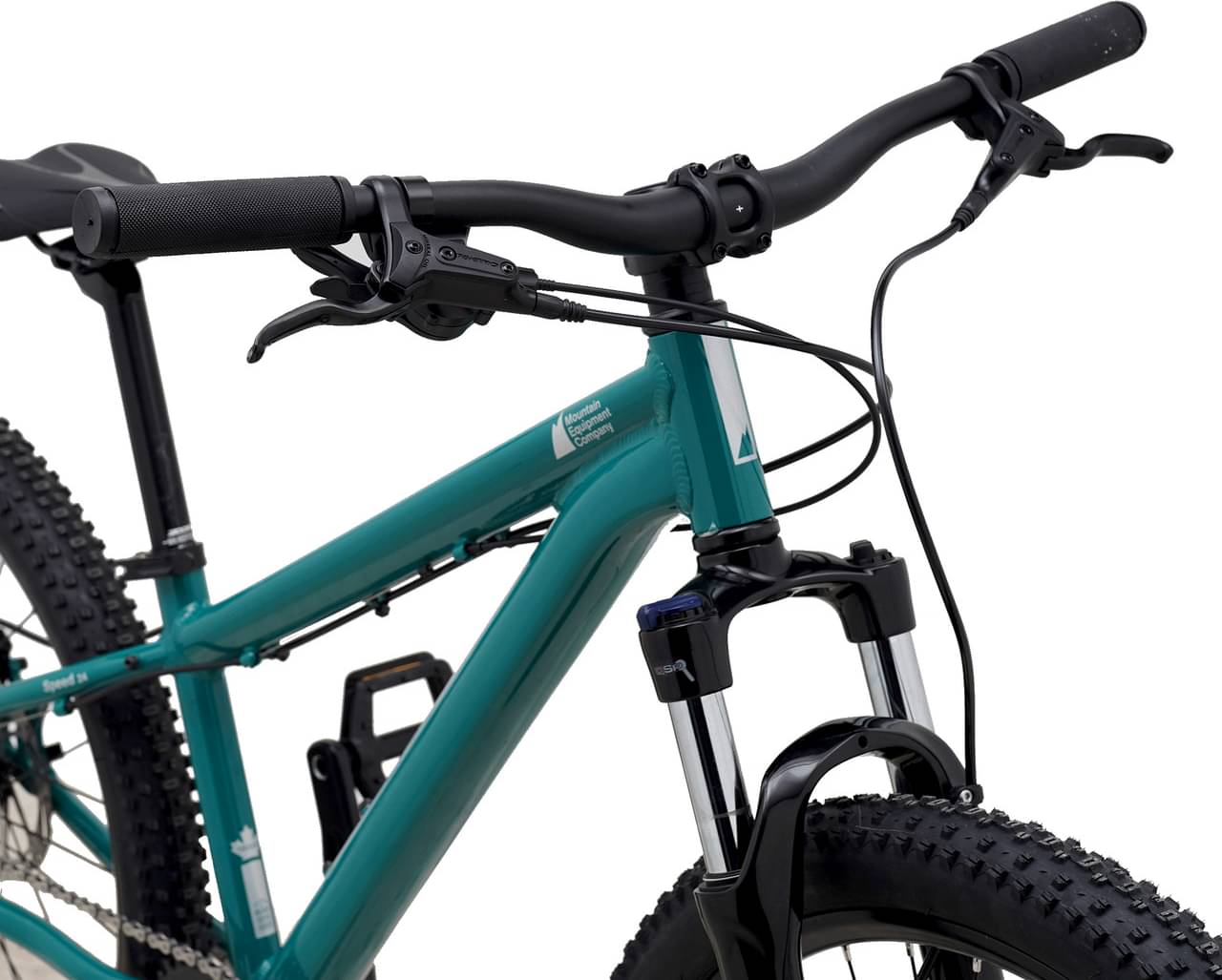

Cockpit
Stem
Alloy
Handlebar
MEC Mountain Riser 31.8mm
Headset
Steel
Seat
Saddle
Velo
Seatpost
Alloy 27.2mm
Fit data
Geometry
