Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 130mm -
Travel Rear 130mm -
Fork SunTour XCR 34
-
Groupset Deore, Shimano -
Suspension Full -
Motor Shimano 250W 60Nm mid-drive -
Battery Integrated 500 Litio-ion (Li-ion) 36V - 13,8 Ah - 500 Wh -
Drivetrain 1 × 10 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Full integratted Battery, Alloy Triple butted 12x148 BOOST, HORST LINK 4, Wheel travel: 130 mm
Suspension Fork
Suntour XCR 34 air, E-Bike+, travel 130mm, BOOST 15x110, Mini-Fender included
Rear Shock
Suntour Raidon 200x57 Comp. Regul.
Drivetrain
Rear Derailleur
Shimano Deore 6000 10s
Shift Levers
Shimano Deore 6000 10s
Cassette
Shimano Deore 6000 11-42T 10s
Crank
Shimano 34T
Wheels
Front Hub
BOOST system 15x110 12x148 EHL-1485
Rear Hub
BOOST system 15x110 12x148 EHL-1485
Rims
Ready GR 25 TR
Tires
Maxxis Minion 29 x 2,20 Tubeless Ready EXO Foldable
Cockpit
Stem
3D Forged Alloy, Ext.: 60-70-90 mm, Rise: ±7º
Handlebar
Alloy Butted 31,8x780 mm, Rise: 12 mm, Back sweep: 9º
Headset
FSA Orbit 1,5 E ZS 1-1/8” 1,5”
Seat
Saddle
Megamo
Seatpost
Megamo 30,9 mm
Motor & Battery
Motor
Shimano E7000 250W
Battery
Integrated 500 Litio-ion (Li-ion) 36V - 13,8 Ah - 500 Wh
Remote
Shimano E7000
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.597 mm | 1.502 mm | 1.435 mm |
| Bottom Bracket Height | 350 mm | 350 mm | 350 mm |
| Stack | 631 mm | 640 mm | 660 mm |
| Reach | 395 mm | 426 mm | 460 mm |
| Top Tube Length | 575 mm | 610 mm | 644 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73 ° |
| Head Tube Angle | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 130 mm | 140 mm | 160 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm |
| Bottom Bracket Drop | 24 mm | 24 mm | 24 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview

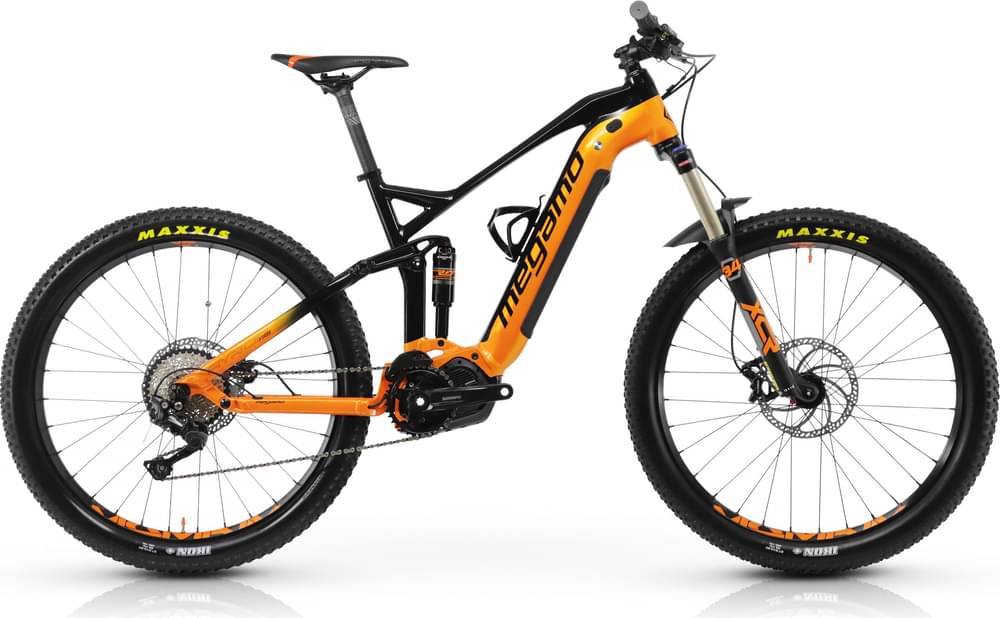

AYRON FORCE 40 is part of the Megamo E Ayron model. Megamo launched 3 e-bikes of this model so far.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail e-bikes average price
If you want an acceptable Trail e-bike you should know that the average price is 3365$. However, this doesn’t mean that if you spend less money on a Trail e-bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
AYRON FORCE 40 components
Fork
The SunTour XCR 34 is included from the factory. It has a travel distance of 130mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
From the factory, it comes with the Suntour Raidon 200×57 Comp. Regul. rear shock model, which has a travel of 130mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
The AYRON FORCE 40 2021 e-bike is equipped with 29″ aluminum wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
For your safety, it is important to have quality breaks on your bike. Megamo AYRON FORCE 40 has Mechanical Disc brakes installed. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
Sizes
This e-bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, you can easily find one that suits you.
