Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 130mm -
Travel Rear 130mm -
Fork Suntour XCR Air
-
Groupset Deore, Shimano -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery Integrated 500 Litio-ion (Li-ion) 36V - 13,8 Ah - 500 Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Full integratted Battery, Alloy Triple butted 12x148 BOOST, HORST LINK 4, Wheel travel: 130 mm
Suspension Fork
Suntour XCR 34 air, E-Bike+, travel 130mm, BOOST 15x110, Mini-Fender included
Rear Shock
Suntour Raidon 200x57 Comp. Regul.
Drivetrain
Rear Derailleur
Shimano Deore 6000 10s
Shift Levers
Shimano Deore 6000 10s
Cassette
Shimano Deore 6000 11-42T 10s
Crank
Shimano 34T
Wheels
Front Hub
BOOST system 15x110 12x148 EHL-1485
Rear Hub
BOOST system 15x110 12x148 EHL-1485
Rims
Ready GR 25 TR
Tires
29x2,2
Brakes
Brakes
Shimano MT420 hydraulic disc 4-Piston, 203mm
Cockpit
Stem
3D Forged Alloy, Ext.: 60-70-90 mm, Rise: ±7º
Handlebar
Alloy Butted 31,8x780 mm, Rise: 12 mm, Back sweep: 9º
Headset
FSA Orbit 1,5 E ZS 1-1/8” 1,5”
Seat
Saddle
Megamo
Seatpost
Megamo 30,9 mm
Motor & Battery
Motor
Shimano EP6
Battery
Integrated 500 Litio-ion (Li-ion) 36V - 13,8 Ah - 500 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.597 mm | 1.502 mm | 1.435 mm |
| Bottom Bracket Height | 350 mm | 350 mm | 350 mm |
| Stack | 631 mm | 640 mm | 660 mm |
| Reach | 395 mm | 426 mm | 460 mm |
| Top Tube Length | 575 mm | 610 mm | 644 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 400 mm | 460 mm | 520 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 130 mm | 140 mm | 160 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm |
| Bottom Bracket Drop | 24 mm | 24 mm | 24 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview

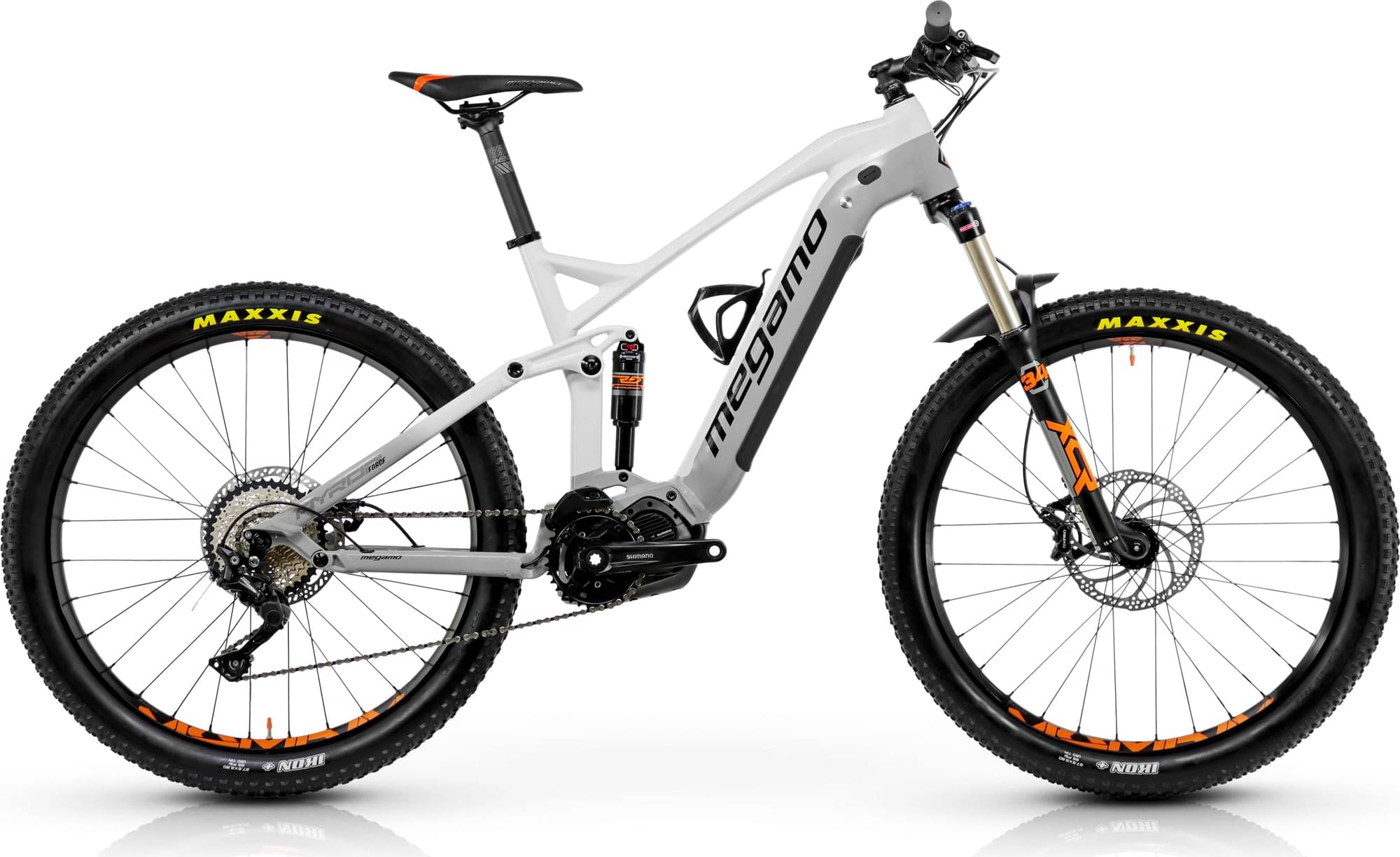

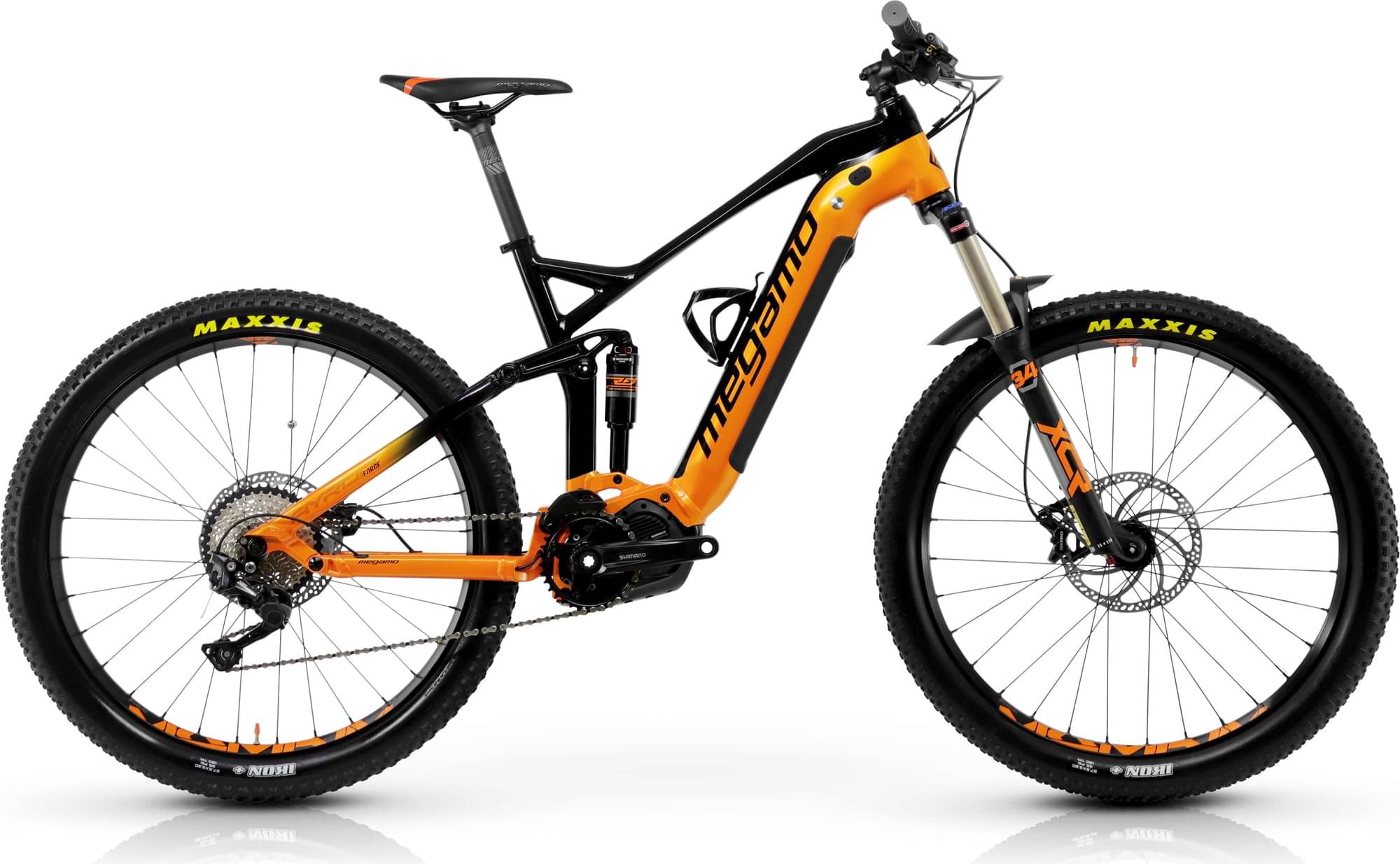

AYRON FORCE 40 EP6 is a Megamo E Ayron model. There are 3 e-bikes that carry this model name.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail e-bikes
According to our math, the average price for a trustworthy Trail e-bike is 3365$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
AYRON FORCE 40 EP6 components
Fork
Megamo AYRON FORCE 40 EP6 2023 e-bike is equipped with the Suntour XCR Air fork, and has 130mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
As for the rear shock, this e-bike has the Suntour Raidon 200×57 Comp. Regul. model, with a travel of 130mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
As for the wheels, Megamo AYRON FORCE 40 EP6 2023, has a 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
When you want to stop the bike in time, the brakes are vital. The AYRON FORCE 40 EP6 has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, it won’t take much to find one that’s right for you.
