Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 20" -
Groupset Shimano -
Suspension Rigid -
Motor 250W hub-drive -
Battery LITHIUM, 36V - 7,8 Ah - 281Wh -
Drivetrain 2 × 7 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALLOY 6061, FOLDING TYPE, INTERNAL CABLE ROUTING, HYDROFORMED TUBBING
Suspension Fork
UNICROWN, HI-TEN
Drivetrain
Rear Derailleur
SHIMANO FT35 7s
Shift Levers
SHIMANO REVOSHIFT RS36
Cassette
SHIMANO 14-28T, 7s
Crank
ALLOY 165x 42T - SPEED SENSOR
Wheels
Front Hub
ALLOY
Rear Hub
ALLOY
Rims
ALLOY WITH CNC SIDES
Tires
20x1,75 ANTI-PUNCTURE W/ REFLECTING LINE
Brakes
Brakes
rim
Cockpit
Stem
ALLOY ADJUSTABLE, LENGTH: 1200 mm + 230 mm
Handlebar
ALLOY 25,4x580 mm, 30 mm RISED
Headset
OVERSIZE
Seat
Saddle
Megamo
Seatpost
ALLOY, 31,8x500 mm
Motor & Battery
Motor
BRUSHLESS 36V - 250W, W/CLUCH, HIGH-FREQUENCY WATER PROOF CABLE CONNECTOR
Battery
LITHIUM, 36V - 7,8 Ah - 281Wh
Remote
LED DISPLAY
Fit data
Geometry
Numbers for sizing and ride feel.
About this model

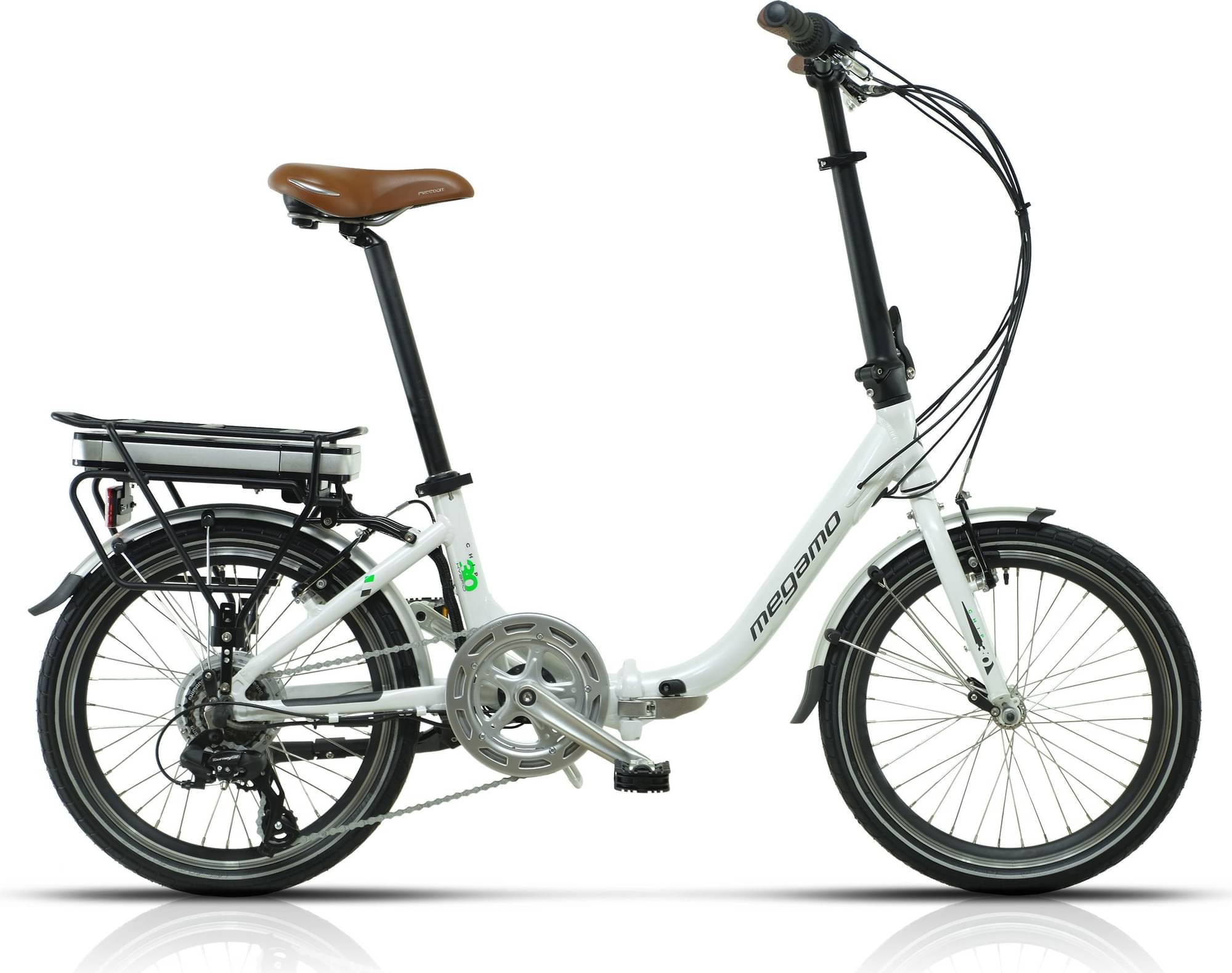

CHIP 3.0 is a Megamo E Chip model. 2 e-bikes variations carry this model name so far.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Folding e-bikes
According to our calculations, the average cost of a Folding e-bike that is reliable is 1557$. However, even though the average price of a Folding e-bike is lower, you might still be able to get a top-quality e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Average weight for Folding e-bikes
The average weight for Folding e-bikes is 24.04 kg (53 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Megamo CHIP 3.0 it’s weighing 17.6 kg (38.8 lbs). At this weight, is much lighter than average. To sum up, it’s 36.59% lighter than the average weight of Folding e-bikes.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork material
The fork on this e-bike is made out of steel, which is tougher than carbon in the case of an impact. However, it can add some extra weight to the e-bike.
Wheels size
As for the wheels, Megamo CHIP 3.0 2022, has a 20″ aluminum model. This wheel size is used on bike models like BMX, children, or folding bikes. In conclusion, you can use them better on-road, and less on technical terrain.
Brakes
For your safety, it is important to have quality breaks on your bike. Megamo CHIP 3.0 has Rim brakes installed. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they are not nearly as effective as hydraulic brakes are.
