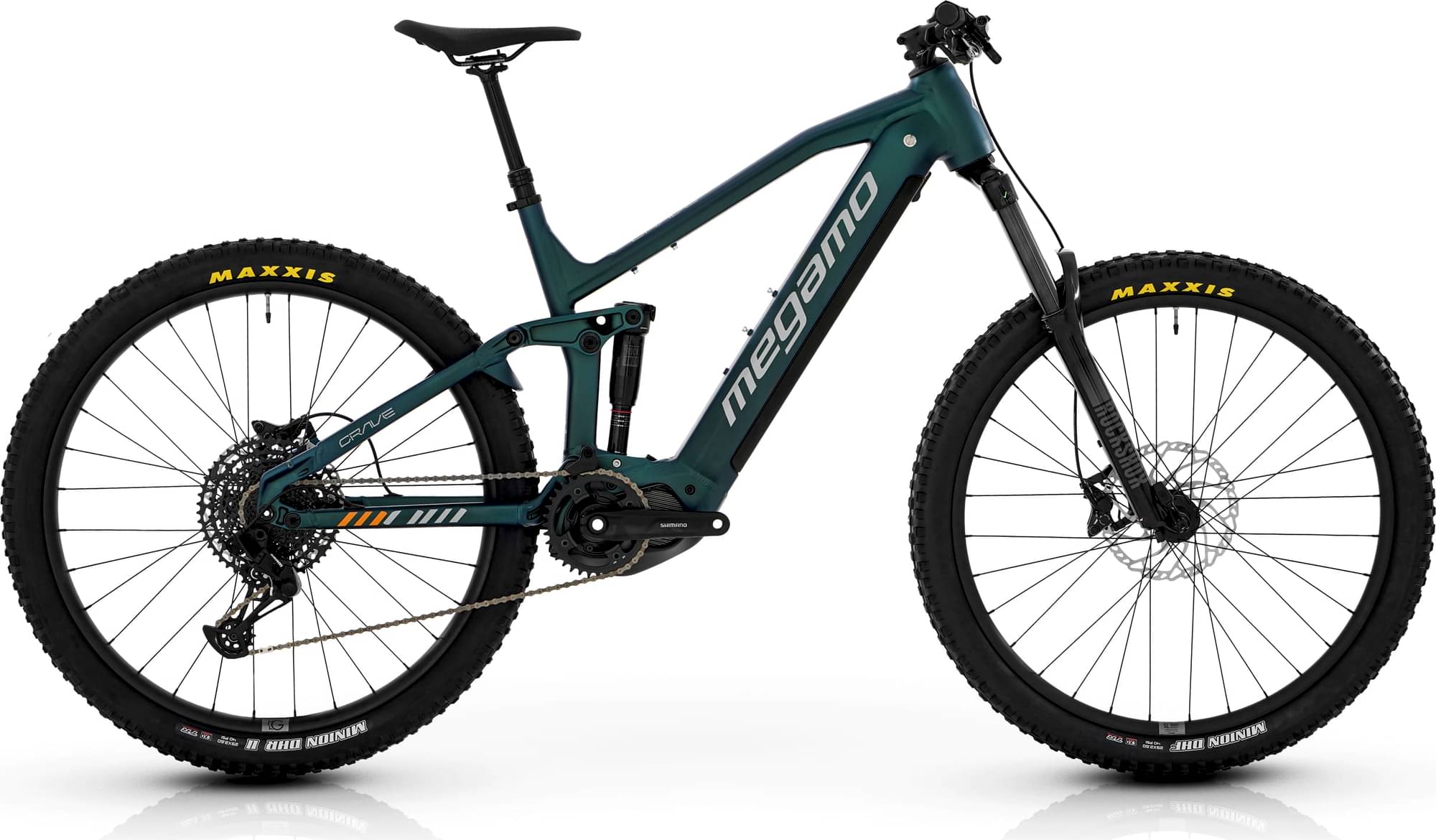

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 160mm -
Travel Rear 160mm -
Fork RockShox 35 Silver
-
Groupset SX Eagle -
Suspension Full -
Motor Shimano 600W 85Nm mid-drive -
Battery Integrated LI-ION Battery, 762 Wh -
Drivetrain 1 × 12 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame

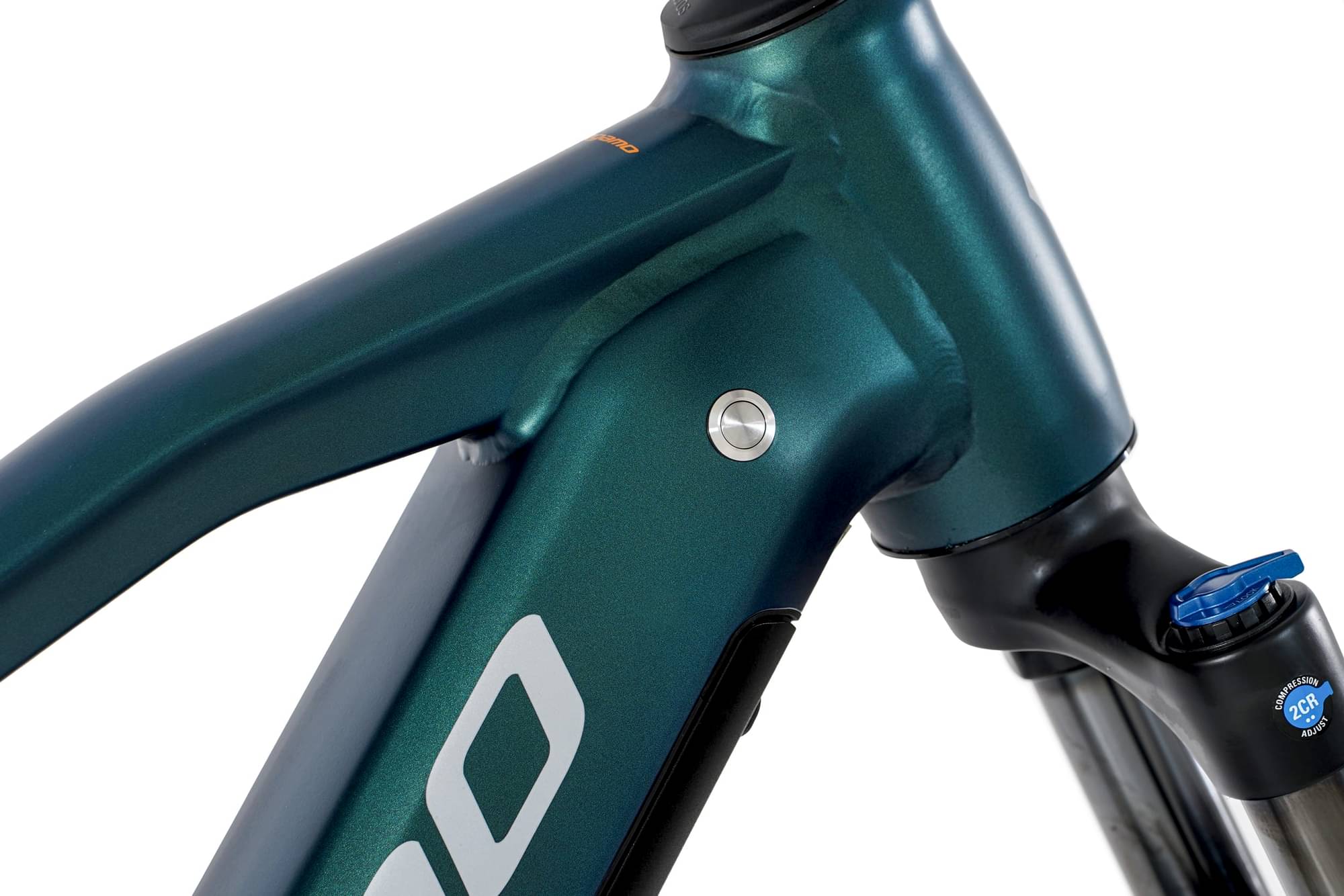

Frame
Full Integratted Battery, Alloy Triple Butted, 12x148 Boost, Horst Link 4, Wheel travel: 160 mm, Tire clearance 29 x 2.6
Suspension Fork
Rock Shox 35 Silver R 29" Boost 15x110mm 160mm E-MTB Tapered Steerer
Rear Shock
Rock Shox Deluxe Select R 205x65 Debonair Tune Trunnion
Drivetrain
Rear Derailleur
SRAM SX Eagle 12s
Shift Levers
SRAM SX Eagle 12s
Cassette
SRAM SX Eagle 12s 11-50t
Crank
Shimano 36t
Wheels
Front Hub
Megamo Hubs, Front axle 15 x 110 mm, Rear axle 12 x 148 mm BOOST EBIKE+
Rear Hub
Megamo Hubs, Front axle 15 x 110 mm, Rear axle 12 x 148 mm BOOST EBIKE+
Rims
Megamo 29 SL 30 ASY - HG, 30 mm Tubeless ready Aluminium rim
Tires
Maxxis Rekon 29 x 2.6
Brakes
Brakes
Shimano MT420 hydraulic disc 4-Piston, 203mm
Cockpit
Stem
3D Forged Alloy, Ext.: 60-70-90 mm, Rise: ±7º
Handlebar
Alloy Butted 31,8x780 mm, Rise: 12 mm, Back Sweep: 6º
Headset
Acros AZX-706 ZS56
Seat
Saddle
Selle Italia Model X Superflow
Seatpost
Megamo Ø 30.9mm telescopic seat post, remote adjustment
Motor & Battery
Motor
Shimano EP801 / 85 Nm
Battery
Integrated LI-ION Battery, 762 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.378 mm | 1.345 mm | 1.298 mm |
| Bottom Bracket Height | 361 mm | 361 mm | 361 mm |
| Front Center | 795 mm | 812 mm | 834 mm |
| Rake | 40 mm | 40 mm | 40 mm |
| Trail | 136 mm | 136 mm | 136 mm |
| Stack | 627 mm | 632 mm | 636 mm |
| Reach | 455 mm | 470 mm | 490 mm |
| Top Tube Length | 611 mm | 628 mm | 649 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 410 mm | 460 mm | 510 mm |
| Head Tube Angle | 64.3 ° | 64.3 ° | 64.3 ° |
| Head Tube Length | 135 mm | 140 mm | 145 mm |
| Chainstay Length | 451 mm | 451 mm | 451 mm |
| Wheelbase | 1246 mm | 1263 mm | 1285 mm |
| Bottom Bracket Drop | 13 mm | 13 mm | 13 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
